Summary of Contents for Beko BMN3WT3841W

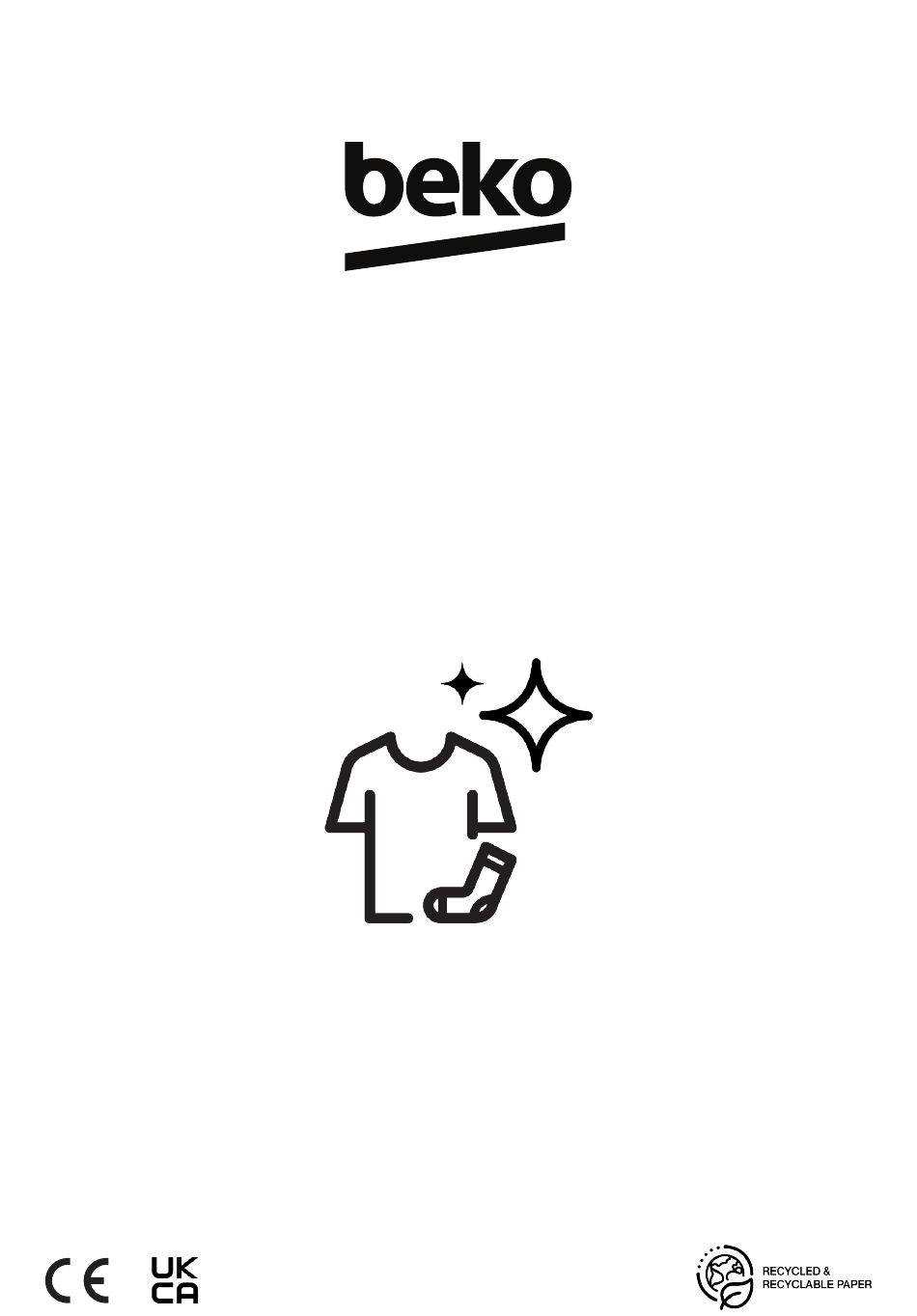

- Page 1 Washing Machine User Manual BMN3WT3841W 2820531792/ EN/ / 18/10/2024 11:59...
- Page 2 Please read this user manual first! Dear Customer, Thank you for choosing Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product.
- Page 3 Auxiliary Function Selection..27 Table of Contents 6.8.1 Auxiliary Functions..... 27 1 Safety Instructions......6.8.2 Functions/Programmes Selec- Intended Use........ted by Pressing the Function Safety of Children, Vulnerable Keys for 3 Seconds ....Persons and Pets ......End Time ........28 Electrical Safety......
- Page 4 1 Safety Instructions This section includes the safety • This appliance is intended to instructions necessary to pre- be used in household and sim- vent the risk of personal injury or ilar applications. For example; material damage. – Personnel kitchens of stores, Our company shall not be held offices and other work envir- responsible for damages that...
- Page 5 with, climb on top or inside the • Do not tuck the power cord un- product. Check inside the der the product or to the rear product before use. of the product. Do not put • Use child lock to prevent chil- heavy items on the power dren from intervening with the cord.
- Page 6 • Never connect your product to product for installation and electricity saving devices. Such make sure the electrical mains, systems are harmful to the clean water mains and water product. outlet are suitable. If not, call a qualified electrician and Handling Safety plumber to have them make the necessary arrangements.
- Page 7 • Do not install the product at be minimum 0.1 MPa (1 bar) locations where the temperat- and maximum 1MPa (10 bars). ure drops below 0 ºC. 10 to 80 litres of water should • Do not place the product on a be running from the tap in a carpet or similar surface.
- Page 8 • Make sure pets do not climb Operational Safety inside the product. Check in- • When you are using the appli- side the product before use. ances, use only detergents, • Do not force open the locked softeners and supplements loading door.
- Page 9 – Make sure the room where • Do not put hands, feet and the washing machine is metal objects under or behind placed is well ventilated. your product. This can cause jams, and any sharp edge can – Wipe the door gasket and cause personal injury.
- Page 10 in the machine cools down in order to avoid risk of getting burnt. 2 Important Instructions for Environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classifica- tion symbol for waste electrical and electronic equipment (WEEE).
- Page 11 3 Technical Specifications Supplier’s name or commercial brand Beko BMN3WT3841W Model name 7178561500 Nominal Capacity (kg) Maximum spin speed (cycle/min) 1400 Built-In Height (cm) 84,5 Width (cm) Depth (cm) 54,6 Single Water inlet / Double Water inlet + / -...
- Page 12 4 Installation 4.1 Appropriate Installation Location Please read the “Safety Instruc- tions” section first! • Place the product on a hard, rigid and level floor. Do not place it onto a carpet Your washing machine automatic- with high pile, or other similar surfaces ally detects the amount of laundry on top of an underlay, or onto flooring placed inside when selecting a pro-...
- Page 13 Cover A 3. Attach the plastic covers supplied in the User Manual bag into the holes on the rear panel. NOTICE Remove the transportation safety bolts before operating the product. Tilt the machine back slightly. Rest the tabs Otherwise, the product will get of Cover A against the lower panel.
- Page 14 the nut. Check the gasket and tighten 4. To prevent the waste water to go back the nut carefully again. In order to pre- into the product again and to ensure vent the water leaks and resultant dam- easy drainage, do not immerse the end ages, keep the taps closed when you do of the hose into the waste water or do not use the product.
- Page 15 4.7 Electrical Connection 2. Connect the blue (neutral) wire to the terminal in the plug marked ‘N’ or col- Connect the product to a grounded outlet oured black. protected by a 13 A fuse. Our company 3. Connect the brown (live) wire to the ter- shall not be responsible for the damages minal in the plug marked ‘L’...
- Page 16 • Always observe the instructions given on • Operate the product in the highest load the garment care labels. capacity allowed for the programme you have selected, but do not overload. See 5.2 Preparing Laundry for Washing "Programme and consumption table" •...
- Page 17 • If you are using a programme without Follow the instructions in “Pro- pre-washing, do not put detergent in the gramme and consumption table”. pre-wash compartment (compartment When the appliances is overloaded no. “1”). product’s washing performance will • If your model has prewash function avail- drop.
- Page 18 Adjusting the Detergent Amount Use of Gel and Tablet Detergents The amount of detergent depends on the • If the detergent is fluid and there is no li- amount of laundry, how soiled they are and quid detergent compartment in your the water hardness.
- Page 19 • Select a programme with low temperat- compartment no. “2” in the detergent ure washing while using oxygen-based drawer and wait for the product to rinse decolourants. away the detergent during water intake. • Oxygen-based decolourants can be used Add the decolourant to the same com- together with detergents.
- Page 20 starts, in 20-25 minutes actual load is de- programme duration increased automatic- tected by the machine. And if the detected ally. You can follow this change on the dis- load is higher than half load; washing pro- play. gramme will be adjusted accordingly and 6 Operating the Product Please read the “Safety Instruc- tions”...
- Page 21 6.2 Symbols on the Display 1 Auxiliary Function Indicators 2 No Water Indicator 3 Door Lock Is Engaged Symbol 4 Delayed Start Enabled Indicator 5 Start / Pause Indicator 6 Duration Information 7 Temperature Symbol 8 Child Lock Enabled Symbol 9 Auxiliary Function Indicator 10 Spin Speed Indicators 11 No Spin Indicator...
- Page 22 2,16 1400 • • • Cold - 90 Quick / Super Quick 1,14 1400 • • • Cold - 90 0,17 1400 • • • Cold - 90 Quick / Super Quick+Fast 0,10 1400 • • • Cold - 90 Hand Wash 0,49 •...
- Page 23 You can see the washing duration on the display of your machine while selecting a programme. De- pending on the amount of laundry you have loaded into your machine, there may be a difference of 1-1.5 hours between the duration shown on the display and the actual dura- tion of the wash cycle.
- Page 24 • Synthetics You can wash your laundry (such as shirts, blouses, synthetic/cotton blended fabrics etc.) in this programme. When the quick wash function button is pressed, the pro- gramme duration will be shortened signific- 6.5 Programmes antly and effective washing performance is provided for your laundry that is not very •...
- Page 25 programme to help the wrinkle reducing This is not a washing programme. function. The special spin profile and This is a maintenance programme. steam applied at the end of the programme Do not turn this programme on reduce the wrinkles on your shirts. When when there is something inside the the quick wash function is selected, the machine.
- Page 26 ing programme for which duration of rinse You can also change the temperature after hold, washing action, washing and rinsing the washing starts. This change can be duration are modified. made only if the washing steps allow it. You can see stain groups that can be se- 6.7 Spin Speed Selection lected with the “Quick Wash”...
- Page 27 You can change the spin speed after the When an auxiliary function button washing starts if the washing steps allow it. that cannot be selected with the Changes cannot be made if the steps do current programme is pressed, the not allow it.
- Page 28 This function is intended for lightly soiled You can switch on and off the ma- laundry that requires only a small amount chine with On / Off button when the of detergent (see “Tips for Correct Wash- Child Lock is active. When you ing”).
- Page 29 With the End Time function, the end time of Additional laundry can be added the programme may be set up to 24 hours. into the machine during the End After pressing End Time button, the pro- Time countdown. At the end of the gramme's estimated ending time is dis- countdown, End Time indicator played.
- Page 30 2. Open the pump filter lid. If the water level in the machine is not suit- able when you press Start/Pause button, the door lock cannot be deactivated and the door lock icon on the display remains If the temperature of the water in- side the machine is above 50°C, you cannot deactivate the door lock for safety reasons, even if the water...
- Page 31 6.13 Cancelling the Programme 6.14 End of Programme The programme is cancelled when pro- End symbol appears on the display when gramme selection knob is turned to a dif- the programme is completed. ferent programme or machine is turned off If you do not press any button for 10 and on again using the programme selec- minutes, the machine will switch to OFF...
- Page 32 1. Close the taps. After every washing make sure that no for- eign substance is left in the product. 2. Remove the nuts of the water intake If the holes on the door gasket shown in the hoses to access the filters on the water figure is blocked, open the holes using a intake valves and clean them with an ap- toothpick.
- Page 33 3. Follow the below procedures in order to NOTE: drain water. Foreign substances left in the pump filter may damage your If the product has an emergency water product or may cause noise prob- draining hose, in order to drain the water: lem.
- Page 34 Water inside the product. Product stopped shortly after the pro- gramme started. • Some water has remained in the product due to the quality control processes in • Machine has stopped temporarily due to the production. >>> This is not a failure; low voltage.
- Page 35 • Number of rinses and/or amount of rins- • Excessive foam has occurred and auto- ing water have increased. >>> Product in- matic foam absorption system has been creases the amount of rinsing water activated due to too much detergent us- when good rinsing is needed and adds an age.
- Page 36 • Excessive amount of detergent is used. • Draining hose is folded. >>> Check the >>> Put the detergent in the correct com- drain hose. partment. Do not mix the bleaching agent Laundry became stiff after washing. (**) and the detergent with each other. •...
- Page 37 • The detergent in the main wash compart- Foam is overflowing from the detergent ment got wet while taking in the prewash drawer. water. Holes of the detergent compart- • Too much detergent is used. >>> Mix 1 ment are blocked. >>> Check the holes tablespoonful softener and ½...
- Page 38 The spare part availability of the washing by professional repairers (who are not au- machine or washer-dryer that you pur- thorized by Beko ) shall void the guaran- chased is 10 years. During this period, ori- tee. ginal spare parts will be available to oper- ate the washing machine or washer-dryer properly.
- Page 39 The standard guarantee starts from the date of original purchase of the product and lasts for a period of twelve (12) months unless Beko plc (the “Manufacturer”) agrees to extend the guarantee for the product in writing. If you have any questions about the guarantee on your product (including how long it is...
- Page 40 11. Optional extras, where available (i.e. extendable feet) are supplied on a chargeable basis only. Does Beko offer replacements? This is a repair-only guarantee. On occasion, the Manufacturer may at its sole discretion, replace your product with a new product instead of carrying out a repair. Where a replace- ment is offered, this would normally be an identical model but when this is not possible, a model of similar specification will be provided.
- Page 41 In order to activate the 10 year parts guarantee you MUST register the appliance within 90 days of the original purchase date. You can register by visiting our websites. For UK customer visit beko.co.uk/register or phone 0800 497 0683. For ROI customers visit beko.ie/register or phone 1803 000 081. Our Beko branded appliances carry FREE replacement parts for the first 10 years, provided they are fitted by our Service Representatives, at the ap- plicable labour charge.
- Page 42 The repair is guaranteed for 3 months for the same defect. In the unlikely event that the appliance is beyond economical repair we may at the sole discretion of Beko plc offer you an appliance at a reduced price. Our call out fee will still apply.
- Page 43 For service under guarantee or for product advice please call our Customer Service Team Before requesting service please check the troubleshooting guide in the Operating In- structions booklet or our video support found beko.co.uk/support/how-to-guides, as a charge may be levied where no fault is found, even though your product may still be un- der guarantee.
- Page 44 Contact Us and choose a product support topic from the list of options. Complete the required details and click send message. Product registrations For UK registrations please visit beko.co.uk/register and for the Republic of Ireland visit beko.ie/register. EN / 44...
