When using Windows 7 as operating system, the hard and software need to be configured in a different way than discribed in

the instruction manual. This quick guide discribes how you need to instal the hard and software.

Note: Minimal system requirements are Windows 7 Home Premium.

Connect the trurntable with the AC power outlet.

Connect the turntable with a USB socket on your computer and wait for several seconds until below pop-up screen

appears.

Click on Close.

Click with the right mouse-button on the speaker icon (taskbar) and select Recording, below screen appears:

Go to Tab Levels and slide the volume slider down to level 2 as shown in below example.

Go to Tab Advanced and select in the pull-down menu: 2 Channel, 16 bit, 44100 Hz (Cd-Quality).

Click on Apply, OK and OK again (now all programms are closed).

10. Insert the Audacity software CD into your disk drive or download free of charge new software via

http://audacity.sourceforge.net/

11. Run the instalation as discribed instruction manual.

12. Run the audacity software.

QUICK-GUIDE

For information and support,

Monteren van de aandrijfriem

Windows 7 turntable

www.lenco.eu

Click on Microphone USB-audiodevice.

Click on Properties.

Table of Contents

LENCO L-78 USB Manual 15 pages

LENCO L-78 USB Brochure 1 page

LENCO L-78 USB - SOFTWARE Quick Manual 1 page

Turntable LENCO L-3866 USB Instruction Manual
(20 pages)
Turntable LENCO L-3866 USB User Manual
Turntable with usb connection and built-in pre amplifier (20 pages)
Turntable LENCO L-80 USB User Manual
Turntable mp3 recorder (45 pages)
Turntable LENCO L-90 User Manual
Wooden turntable with usb connection and builtinpre amplifier (112 pages)
Turntable LENCO L-90 User Manual
Wooden turntable with usb connection and built-in pre amplifier (157 pages)
Turntable LENCO L-90 Quick Manual
Wooden turntable with usb connection and built-in pre amplifier (11 pages)

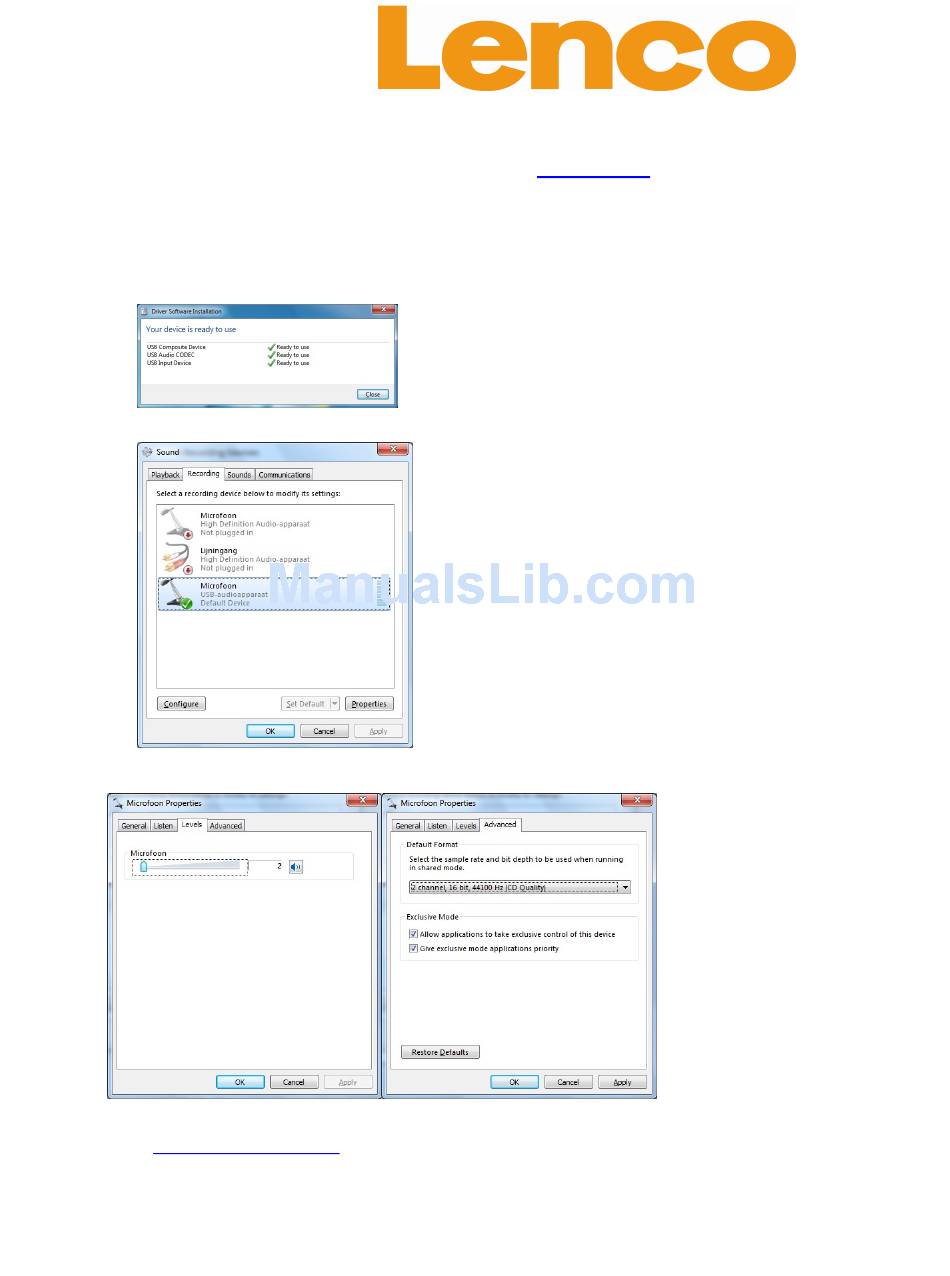

Page 1 Windows 7 turntable For information and support, www.lenco.eu When using Windows 7 as operating system, the hard and software need to be configured in a different way than discribed in the instruction manual. This quick guide discribes how you need to instal the hard and software.
