Eagleye IS-TV130BH24 Quick Start Manual

Specification
Model
IS-TV130BH24
Pick up Element 1/3" SONY 1.3MP CMOS Sensor
Effective Picture
1280 X960
Elements (H×V)
Resolution 960P
0.001 Lux/F1.2
Minimum Illumination
S/N Ratio More than 50dB
Synchronous System Internal, Negative sync.
20 Meters (with Ф5X24PCS Infrared LED)
IR Distance
IR Power On Photodiode AUTO Control
Video Output TVI / CVBS
Functions DNR
Power/Current DC12V(+/-10%)/500mA
Lens
Board Lens 3.6mm
IP Rating IP66
Dimension (mm) 148(W) x 65(H) x 63(D)
Weight (g)
500
Operating Tempera-
-10~+50℃ RH95% MAX
ture
Accessories list
Name
Camera
User Guide
Notes:
Number
Do not attempt to disassemble the camera. If the camera
1
can not work, please contact local franchiser or our company.
1
CCTV Camera

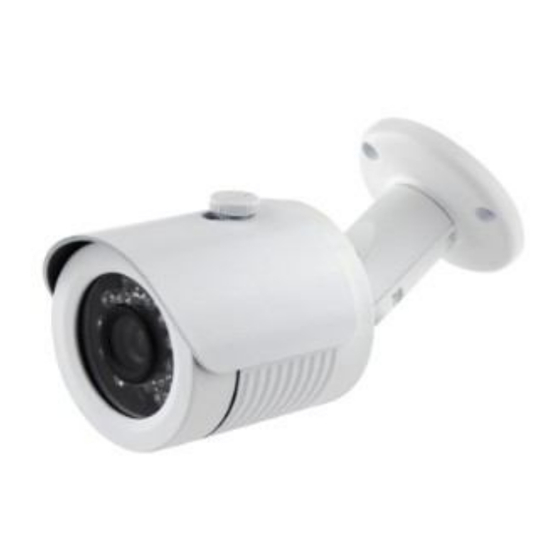

Weatherproof IR Camera
Thank you for using our product.
Before providing power for the camera, please read
this manual carefully before use.
We adopt the latest technical of sensor and driver.
It owns the characters of high definition and stability,
strong anti-jamming, rich and real color. Fixing and
using this model are convenient too. It is very good
for you to apply to your CCTV system.
