Eagleye IS-810IRDB Manual

Specification
Model IS-810 IRDB
1/3" SONY Super HAD CCD
Pick up Element
Effective Picture Elements
NTSC:976(H)×494(V) PAL:976(H)x582(V)
(H×V)
Horizontal Resolution 700 TV Line
0.001 Lux/F1.2
Minimum Illumination
0Lux (with IR LED ON)
S/N Ratio
More than 52dB
Scanning System 2:1 interface
Synchronous System
Internal, Negative sync.
Auto Electronic Shutter NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Gama Characteristic 0.45
IR Distance 20 Meters (with ￠5X24 PCS Infrared LED)
Video Output
1Vpp, 75Ω
Auto Gain Control Auto
Power/Current
DC12V(+/-10%)/350mA
Lens Board Lens 3.6mm /F2.0
Dimension (mm)
￠94 x 69(H)
Weight (g) 400
Storage Temperature -30~+60℃ RH95% MAX
Operating Temperature -10~+50℃ RH95% MAX
Packing List
No
Name
1.
Vandalproof
IS-810IRDB
IR Dome Color Camera
2.
IS-810IRDB
User Guide
II
Franchiser：
Model Number
1
1
IS-810IRDB
Color Camera

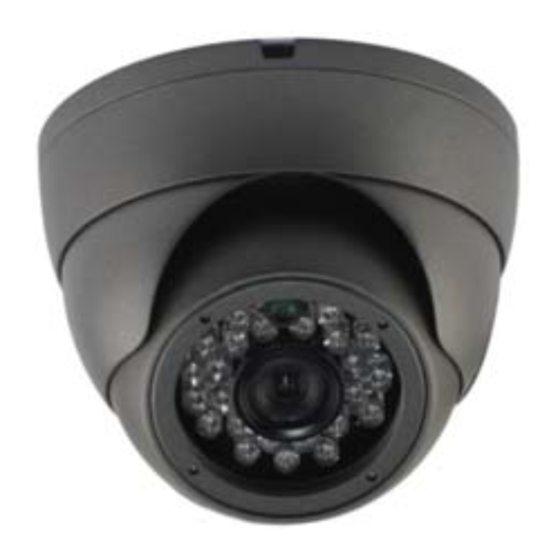

Vandalproof IR Dome Color Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
