Specification
Model
Pick up Element
1/3"CMOS
Effective Picture Elements
976(H) X 496(V）
(H×V)
Horizontal Resolution
800TV Line
Minimum lllumination
0.01Lux/F1.2
S/N Ratio
More than 48dB
Scanning System
2:1 interlace
Synchronous System
Internal, Negative sync.
Auto Electronic Shutter
NTSC:1/60s~1/100,000s,PAL:1/50s~1/100,000s
Gama Characteristic
IR Distance
20 Meters (with ￠5X24 Unit Infrared LED)
IR Status
Under 10 Lux by CDS
IR Power On
CDS AUTO Control
Video Output
1Vpp,75 Ω
Auto Gain Control
Power/Current
DC12V(+/-10%)/ 350mA
Lens
Board Lens 3.6mm/F2.0
Dimension (mm)
￠94 x 69(H)
Weight (g)
Storage Temperature
-30~ +60℃ RH95% MAX
Operating Temperature
-10~ +50℃ RH95% MAX
Packing List
No
Name
Model
1.
Vandalproof IR Dome Color Camera
LIRDBSM
2.
User Guide
LIRDBSM
IS-1099IRDB
0.45
Auto
400
Franchiser：
Number
1
1
IS-1099IRDB Color Camera

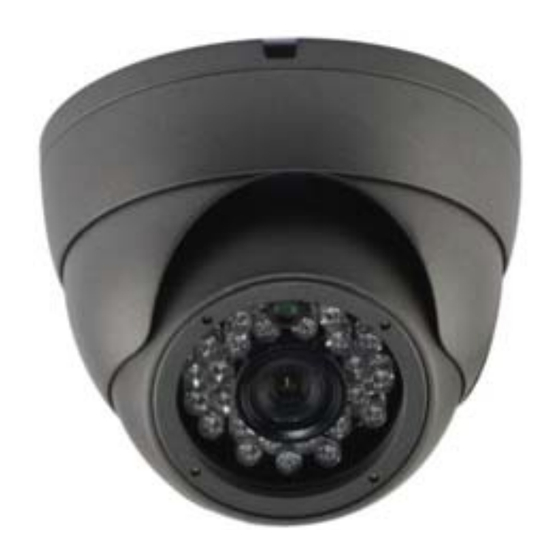

Vandalproof IR Dome Color Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
Advertisement
Related Manuals for Eagleye IS-1099IRDB
Summary of Contents for Eagleye IS-1099IRDB
- Page 1 Specification IS-1099IRDB Color Camera Model IS-1099IRDB Pick up Element 1/3"CMOS Effective Picture Elements 976(H) X 496(V） (H×V) Horizontal Resolution 800TV Line Minimum lllumination 0.01Lux/F1.2 S/N Ratio More than 48dB Vandalproof IR Dome Color Camera Scanning System 2:1 interlace Synchronous System Internal, Negative sync.
- Page 2 INTRODUCTION BRIEF OF PRODUCT CONNECTING Congratulations on your purchase of this product. * Sensor IS-1099IRDB This User Guide suits product. We adopt the latest CMOS technical of sensor and driver. The most at- Adopt CMOS 1/3" Sensor. Monitor Video tractive characteristics are small and easy hidden, suits the elevator and corridor.
