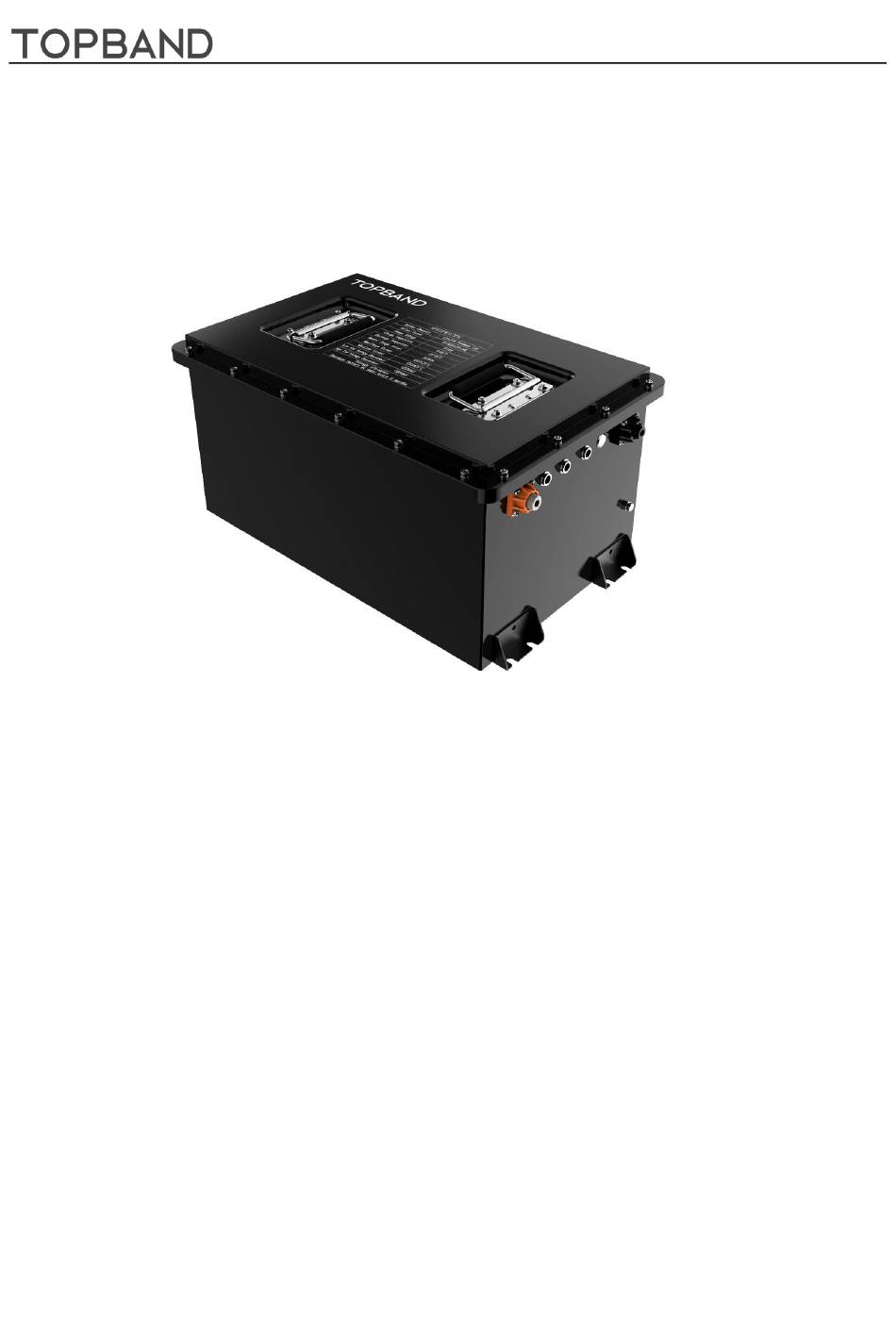

- Page 1 R-B51100A User Manual Address: Topband Industrial Park, Liyuan Industrial Zone, Shiyan, Bao'an, Shenzhen, China, 518108. Email: li-power@topband-e.com Web： ：www.topband.com.cn...
-
Page 2: Table Of Contents
1.2 Standard ................................... 1 1.3 Important safety information ..........................1 1.4 Battery Maintenance ............................2 1.5 Waste Treatment ..............................2 2. Introduction to the TOPBAND series battery ................... 2 2.1. Key Features................................. 2 2.2.Product Appearance ............................. 3 2.3 Functional characteristics ............................ 3 3. -
Page 3: Safety
1. Safety 1.1 Instruction Please read the user manual carefully before installation, operation and maintenance, and pay attention to various warning boards and warning statements on the equipment. Please keep it for future reference after reading the user manual, 1.2 Standard The following marks are used in the user manual to indicate where the special attention should be paid during operation. -
Page 4: Battery Maintenance
Please dispose the package and replaced parts according to the rules applicable in the country where the device is installed. Do not dispose the battery with normal domestic waste. 2. Introduction to the TOPBAND series battery 2.1. Key Features •... -
Page 5: Product Appearance
2.2. Product Appearance Com-out/In port： Output battery data to external equipment. Switch port: Provide an extra control line to turn off/on battery Start: Available to turn on/off battery Fig1 Outline drawing 2.3 Functional characteristics Item Specification Item Specification Rated voltage 51.2V Size 527*342*262.5mm... -
Page 6: Installation
2.3.4 ON or OFF Topband R-B51100A battery has two switch. When the battery is transported or stored for a long time, it can be turned off. This is a very low power consumption, ensuring that the battery can be stored for a long time. -
Page 7: Supporting Parallel Connection
✔ ✘ ✘ ✘ Fig 3 Battery placement 3.3 Supporting parallel connection GC51V100Ah allows up to 4 batteries to be used in parallel. Before parallel connection of batteries, use a multimeter to test the voltage at both ends of the positive and negative electrodes of the batteries, and ensure that the voltage between batteries does not exceed 2V. -
Page 8: Connection Mode Of Battery Communication Port
It does not require any CAN bus communication or external devices (such as external controllers) or other batteries connected to the CAN bus to work. Topband's on-site service can retrieve the battery use history and view the status through the can bus interface to help to solve problems. -
Page 9: Charging Requirements
In this way, the battery can communicate with the load or charger to make more efficient use of battery. This is also conducive to Topband's customer service to better understand the battery failure. If you have more questions about the CAN bus, please contact Topband's engineers for technical support. -
Page 10: Charging With Solar
However, it must be set to charge no higher than58.4V and then MUST be switched off once the TOPBAND series battery is fully charged. DO NOT leave a solar regulator switched on without a suitable lithium charge setting once the battery is fully charged.
