Rechargeable Lithium Battery
Closed loop communication integration manual—Victron Power
Battery Model: R-T12100B/T12200B/T12300B
Version:V00
Edit by :
Jinlong Zhong
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the R-T12100B and is the answer not in the manual?

Questions and answers

Summary of Contents for Topband R-T12100B

  • Page 1 Rechargeable Lithium Battery Closed loop communication integration manual—Victron Power Battery Model: R-T12100B/T12200B/T12300B Version:V00 Edit by : Jinlong Zhong...
  • Page 2 1. Demo system checking list Items Specification Qty. Remarks R-T12100B battery 12.8V100Ah 4 pcs Support max. 4 in series and 4 in parallel According to the battery BAT to BAT power 4 AWG configuration cable BAT to Inverter 4 AWG...

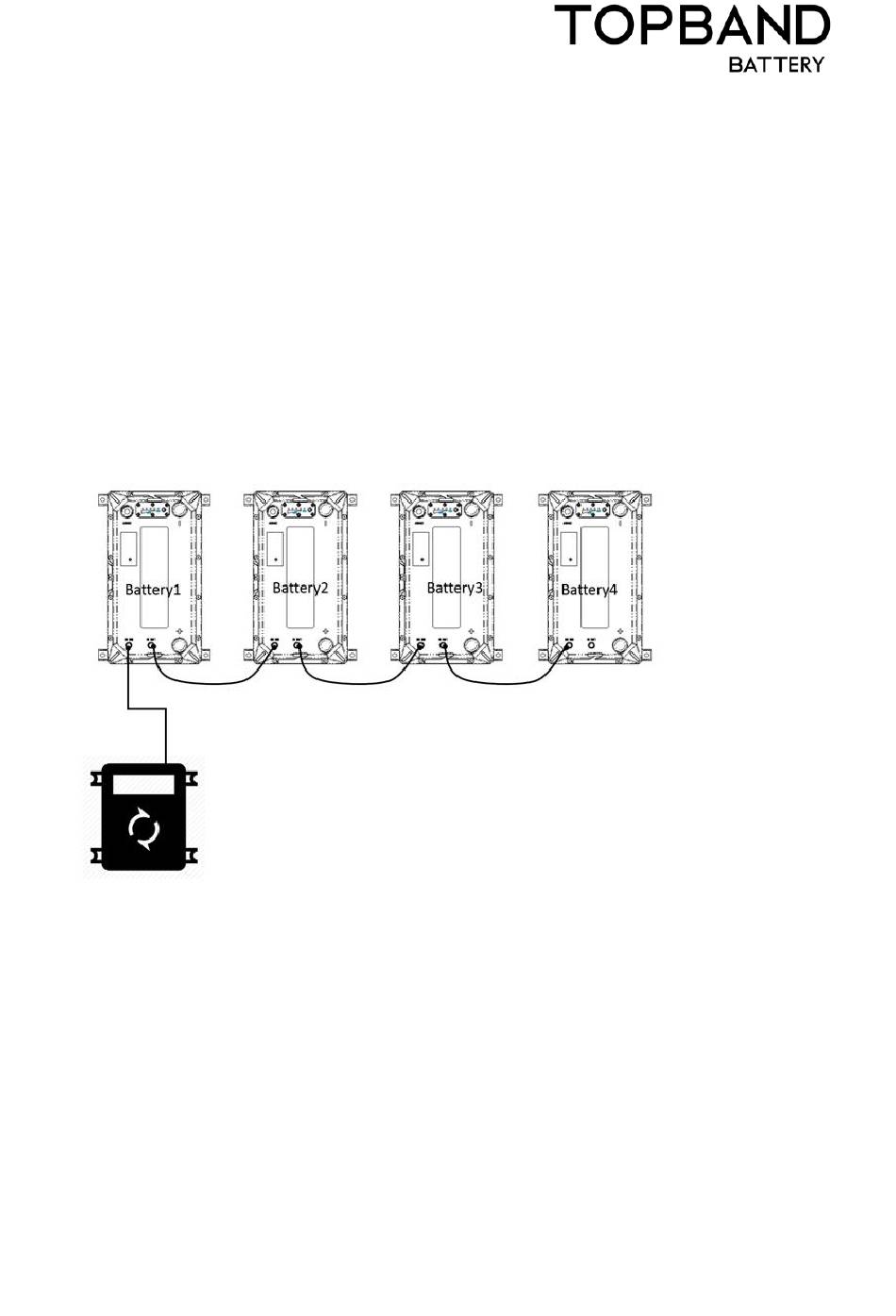

  • Page 3 3. Make sure that your installation environment, setting and sequence is following the User Manual. 4. Only qualified persons are allowed to install and commission the system. 5. Before the battery communicates with Victron, the battery needs to be networked first. For detailed network operation, refer to《R-T12100B/T12200B/T12300B User Manual》...
  • Page 4 3. Connect and Commissioning 3.1 Victron Victron devices and R-T12100B battery can be used for the following system types: Energy Storage Systems (ESS) - Self Consumption Grid Backup (DVCC or ESS) Off-grid (DVCC) A GX device is required to establish communication. It is essential to use the CAN-bus connection of the GX device (e.g.
  • Page 5 3.1.2 Start system 3.1.2.1 Connect the wiring harness according to the User Manual 3.1.2.2 Press the Power on button to switch on all the batteries and then close the battery breaker if there is any. 3.1.2.3 close inverter soft switch, then turn on DC breaker to start MPPT. 3.1.2.4 Finish inverter setup procedures as section 3.1.3, close the AC and PV input.
  • Page 6 3.1.3.2 Select the baud rate: setting–services–VE.CAN / Can-bus BMS, select the 500 kbps. 3.1.3.3 Find the battery in the Home Page of the GX device, check the Online modules number or installed capacity (=rated capacity*parallel or series number) information with actual battery number.
  • Page 7 3.1.3.4 Enable DVCC. Set DVCC as in the picture below, if you’ve configured ESS mode, please enable ‘Optimized with Battery life’ and Minimum SOC should be >10%. 3.1.3.5 Configure MPPT via Victron connect app. MPPT Parameter Setting Battery voltage. Absorption voltage 56.0V Float voltage 54.6V...
  • Page 8 VEConfigure Charge Parameter Setting Battery type Lithium Charge curve Fixed Absorption voltage 56.0 V Float voltage 54.6 V Absorption time 1 Hr 3.1.4.3 Inverter tab VEConfigure Inverter Parameter Setting DC input low shut-down DC input low restart DC input low pre-alarm* 51.2V 3.1.4.3 ESS assistant setting(if you are using your battery in a grid connected system) ESS Parameter...
  • Page 9 Sustain voltage. Restart offset: 1.2V (Default) Send all the settings to the inverter/charger, it will take efficiency after restart, then the system is running. Frequently asked question: 1. The maximum charge and discharge current/voltage is always changing, the system derating at high or low temperature. Yes, BMS has a dynamic target current and voltage according to different parameters to ensure the battery is working in the optimal status.
  • Page 10 or discharge’ in the GX devices battery detail tab showing only 1 or 2 batteries, is it wrong? No, that’s normal. Because there exist module(s) that trigger a major Alarm that needs the system to STOP charging or discharging or both. 6.
