User Guide

Thermia Aura S2/ T2

AR**AXFY*** / AR**AXEY***

www.thermia.se

www.thermia.no

www.thermia.fi

Need help?

Do you have a question about the Aura S2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermia Aura S2

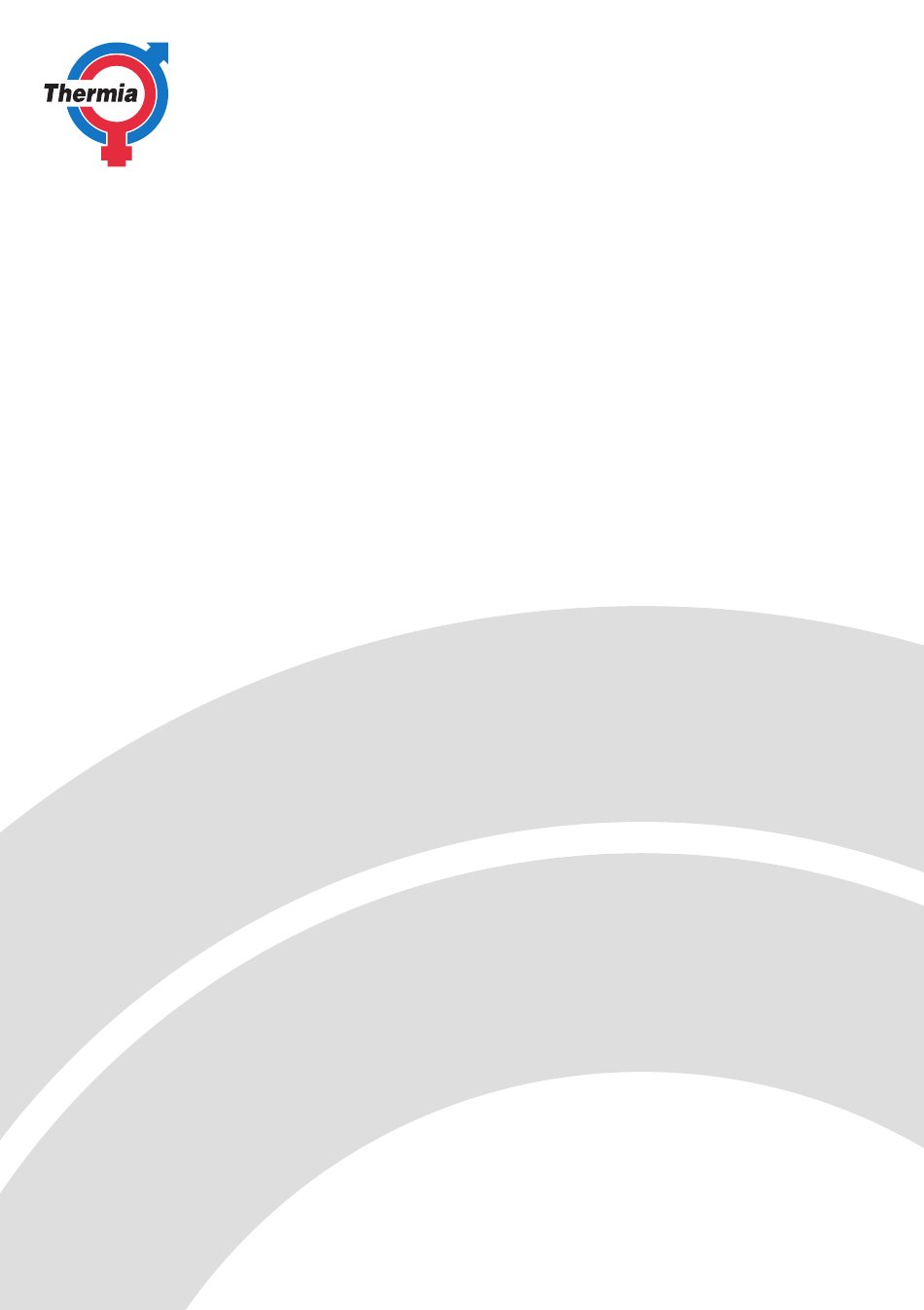

Page 1 User Guide Thermia Aura S2/ T2 AR**AXFY*** / AR**AXEY*** www.thermia.se www.thermia.no www.thermia.fi...
Page 2 Contents Safety Information Safety Information At a Glance Indoor Unit Overview Display Remote Control Overview Replacing the remote control batteries Remote Control Operation Selecting an operation mode To set the temperature • To adjust the fan speed • To adjust the airflow direction Setting the Current time Smart Features Power Smart Features...
Page 3 Cleaning and Maintenance Schedule Cleaning Appendix Troubleshooting Information about Refrigerant SmartThings app Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
Page 4 Because the instructions in this manual cover various models, the characteristics of your air conditioner may differ slightly from those described. If you have any questions, please contact your service provider or visit www.thermia.se. Notices and notes To make you aware of safety messages and highlighted information,...
Page 5 WARNING: Low burning velocity material (This appliance is filled with R-32.) The user and installer guides should be read carefully. The user and installer guides should be read carefully. The service guide should be read carefully. FOR GENERAL This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance...
Page 6 Safety Information FOR INSTALLATION WARNING Use a power cord with this product's power specifications or higher and use the power cord for this appliance only. In addition, do not use an extension cord. • Extending the power cord may result in electric shock or fire. •...
Page 7 Never install the outdoor unit in a location such as on a high external wall where it could fall. • If the outdoor unit falls, it may result in injury, death or property damage. This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic, water pipe, or telephone line.
Page 8 Safety Information Do not install the product in a place where thermo-hygrostat is needed (such as server room, machinery room, computer room, etc.) • Those places do not provide guaranteed operation condition of the product therefore performance can be poor in these places.
Page 9 FOR USING WARNING If the appliance is flooded, please contact your nearest service centre. • Failing to do so may result in electric shock or fire. If the appliance generates a strange noise, a burning smell or smoke, cut off the power supply immediately and contact the nearest service centre.
Page 10 Safety Information Do not touch the circuit breaker with wet hands. • This may result in electric shock. Do not turn the air conditioner off with the circuit breaker while it is operating. • Turning the air conditioner off and then on again with the circuit breaker may cause a spark and result in electric shock or fire.
Page 11 Do not use means to accelerate the defrost operation or to clean, other than those recommended by Thermia. Do not pierce or burn. Be aware that refrigerants may not contain an odour. If any foreign substance such as water has entered the appliance, cut off the power supply and contact the nearest service centre.
Page 12 Safety Information When the air conditioner does not operate properly for cooling or heating, there is a possibility of refrigerant leakage. If any leakage, stop operation, ventilate the room, and consult your dealer immediately for recharging refrigerant. The refrigerant is not harmful. However, if it comes in contact with fire, it may generate harmful gases and there is risk of fire.
Page 13 Do not drink the water from the air conditioner. • The water may be harmful to humans. Do not hit, shake, drop, or attempt to disassemble the remote control. When replacing the remote control batteries, keep them out of the reach of infants. •...
Page 14 Safety Information FOR CLEANING WARNING Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to clean the appliance. • This may result in discolouration, deformation, damage, electric shock or fire. Before cleaning, servicing, or performing maintenance, make sure to disconnect the product from its power source and wait until the fan stops.
Page 15 Indoor Unit Overview The appearance of the actual product may differ slightly from the image below. 01 Air intake 06 Airflow blade (left and right) 02 Air filter 07 Power button/Remote control receiver 03 Tri-care filter (For AR**AXEY*** models) 08 Room temperature sensor 04 Front panel 09 Display 05 Airflow blade (up and down)
Page 16 Indoor Unit Overview Display 01 Temperature indicator (numeric) Filter reset indicator ( Electricity consumption indicator (numeric) Auto clean indicator ( Defrost indicator ( 02 Wi-Fi indicator 03 Timer indicator good’sleep indicator 04 Eco indicator NOTE • When the Wi-Fi is turned on, the indicator blinks three times and then turns on.
Page 17 Remote Control Overview Most operating instructions in this manual require using the remote control. 01 Set temperature indicator 02 Timer option indicator 03 Operation mode indicator 04 Options indicator 05 Low battery indicator 06 Transmit indicator 07 Fan speed indicator 08 Vertical air swing indicator 09 Horizontal air swing indicator 10 Power button...
Page 18 Remote Control Operation Remote Control Operation You can use the air conditioner easily by selecting a mode and then by controlling the temperature, fan speed, and air direction. Selecting an operation mode To change the current mode between Auto, Cool, Dry, Fan, and Heat, press the (Mode) button.
Page 19 To set the temperature To control the temperature in each mode, press the (Temperature) button: Mode Temperature control Auto/Cool Adjust by 1 ℃ from 16 ℃ to 30 ℃. Heat Adjust by 1 ℃ from 8 ℃ to 30 ℃. Adjust by 1 ℃...
Page 20 Remote Control Operation Setting the Current time Before using the functions of the air-conditioner, set the current time. ▶ ▶ Select Clock. ▶ ▶ ▶ Set the time. ▶ NOTE • You can set the time in hourly units from 1 hour to 12 hours according to AM, PM and in minute units from 0 ~ 59 minutes.
Page 21 Power Smart Features Auto mode Use Auto mode to perform the powerful cooling or heating function to automatically reach the desired temperature. When the difference between the room temperature and the set temperature decreases, the air conditioner controls the fan speed and airflow direction. ▶...
Page 22 Power Smart Features Dry mode Use Dry mode in rainy or humid weather. ▶ ▶ Select Dry. NOTE • The proper set temperature range for dehumidifying operation is 24 to 26 ℃. If you feel that the current humidity seems high, use a lower set temperature.
Page 23 Heat mode Use Heat mode to stay warm. ▶ ▶ Select Heat. NOTE • While the air conditioner warms up, the fan may not operate for about 3 to 5 minutes at the beginning to prevent cold blasts. • If the air conditioner heats insufficiently, use an additional heating appliance in combination with the air conditioner.
Page 24 Variety Smart Features Variety Smart Features Fast function Use the Fast function to quickly cool or heat your room. This function is the most powerful cooling and heating function provided by the air conditioner. You can select this function in Cool or Heat mode. In Cool or Heat mode ▶...
Page 25 Eco function Use the Eco function to reduce electricity consumption while staying cool or warm. You can select this function in Cool or Heat mode. In Cool or Heat mode ▶ NOTE • When the Eco function starts, the pattern appears on the remote control for a few seconds and vertical air swing begins.
Page 26 Variety Smart Features Quiet function Use the Quiet function to reduce the unit’s operating noise. You can select this function in Cool or Heat mode. In Cool or Heat mode ▶ ▶ ▶ Select Quiet. ▶ NOTE • You can change the set temperature and the airflow direction, but you cannot change the fan speed.
Page 27 Electricity consumption check Use the Usage function to check the amount of electricity consumed by using the air conditioner. The amount consumed is displayed on the indoor unit display for a few seconds, and the set temperature appears. In operation ▶ ▶...
Page 28 Variety Smart Features Auto clean function Use the Auto clean function if the indoor unit produces odors. Activating Auto clean To activate Auto clean, press the (Options) button for at least 3 seconds. The indoor unit display shows: If the air conditioner is off, Auto clean starts immediately. If the air conditioner is running, Auto clean starts as soon as the air conditioner turns off.
Page 29 Canceling Auto clean To cancel Auto clean while it is running, follow the procedure below: ▶ Press and hold for 3 or more seconds. ▶ ▶ Select Clean. ▶ NOTE • Canceling Auto clean does not deactivate it. Deactivating Auto clean To deactivate Auto clean, follow the procedure below while the air conditioner is in operation or turned off: ▶...
Page 30 Variety Smart Features Display lighting function Use the Display lighting function to turn on or off the lighting of the indoor unit display. ▶ ▶ Select Display. ▶ NOTE • If you change the current mode or function when the Display lighting function is on, the display lighting turns on for 5 seconds and then turns off again.
Page 31 Time scheduling Timed on/ Timed off function Use the Timed on/off function to turn the air conditioner on or off after a duration. Scheduling durations before the air conditioner turns on or off helps use the air conditioner economically. • Check the current time on the remote controller before using this function.
Page 32 Time scheduling good'sleep function Use the good'sleep function to save energy while you are sleeping. You can select this function in Cool or Heat mode. In Cool or Heat mode ▶ ▶ (Select (Set the duration.) ▶ NOTE • To cancel the good'sleep function, set the duration to 0.0. •...
Page 33 Schedule Task How often By whom Instruction Run the Auto clean "Auto clean function" on As needed Owner function. page 28. "Cleaning the filter" on page Clean the filter. Once every two weeks Owner Replace the Tri-care "Replacing the Tri-care filter" Once every 3 years Owner filter.
Page 34 Cleaning Cleaning Cleaning the outside of the indoor unit 1 Turn off the air conditioner and wait until the fan stops. 2 Disconnect the power supply. 3 Use a soft brush or tepid damp cloth to clean the exterior. Soft brush WARNING Tepid damp cloth •...
Page 35 Cleaning the filter Clean the air filter every two weeks or when the (filter-cleaning reminder) appears on the indoor unit display. The time between cleanings may vary, depending on the usage and environmental conditions. Vacuum cleaner Soft brush 30 minutes Mild detergent 1 Slide the filter off of the unit.
Page 36 Cleaning Replacing the Tri-care filter (For AR**AXEY*** models) Slide a new Tri-care filter in the direction of arrow 2. Replace Tri-care filters once every three years. Replacement cycle may differ depending on the environment and usage time. Tri-care filter CAUTION •...
Page 37 Troubleshooting If the air conditioner is not operating normally, refer to the troubleshooting guide below. Problem Solution • Make sure the unit is receiving power. • Check the circuit breaker. If it is flipped off, flip it on again and The air conditioner stops restart the unit.
Page 38 Troubleshooting Problem Solution • Replace the batteries in the remote control. • Make sure the remote control can send an unobstructed signal to The remote control does not the unit. work. • Keep bright lights away from the unit. Light from fluorescent bulbs or neon signs may interrupt the signal from the remote control.
Page 39 Information about Refrigerant Important information: regulation regarding the refrigerant used. This product contains fluorinated greenhouse gases. Do not vent gases into the atmosphere. CAUTION If the system contains 5 tCO₂e or more of fluorinated greenhouse gases, it must be checked for leakage at least once every 12 months, according to regulation No.
Page 40 SmartThings app The SmartThings app may change without prior notice to improve product usability and performance. Use the SmartThings app on your smartphone to control the air conditioner via the wireless Internet. To remotely control the air conditioner, you need to connect your smartphone to the air conditioner. If already connected, skip to "Step 6.
Page 41 SmartThings app. Wi-Fi 4 Tap ADD DEVICE MANUALLY. Frequency Range Transmitter Power(Max) 5 Tap Air conditioner > Thermia > Thermia Aura. 2412 - 2472 MHz 20 dBm 6 Press the (Timer) button on the remote control for at least 4 seconds.
Page 42 SmartThings app Category Function Description Set temperature Displays the set temperature. Monitoring Current temperature Displays the current temperature. Power Turns the air conditioner on or off. Mode Selects the desired operation. Temperature Adjusts the indoor set temperature. Fan Speed Sets the fan speed of operation mode. Wind direction Sets the fan directions of operation mode.
Page 43 English...
Page 44 Thermia can accept no responsibility for possible errors in catalogues, brochures and other printed material. Thermia reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. Thermia and the Thermia logotype are trademarks of Thermia AB.
