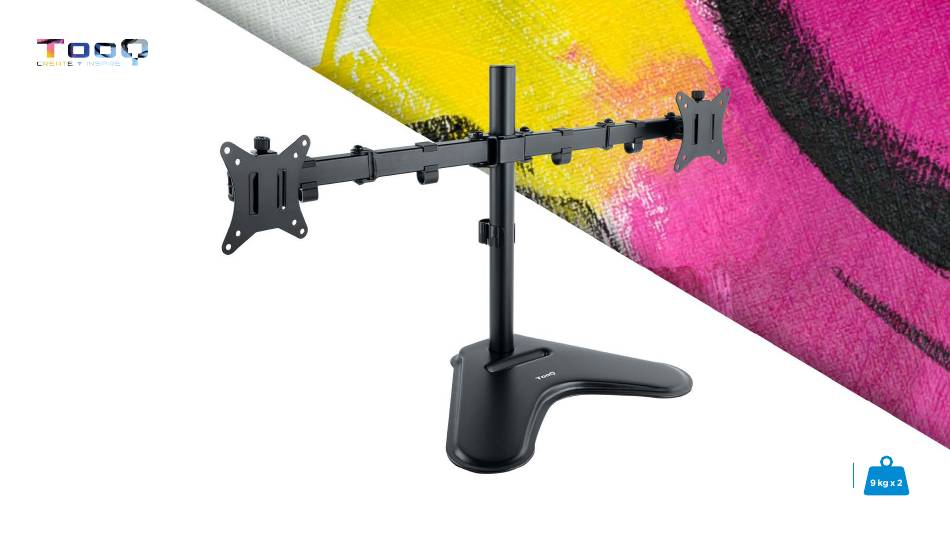

- Page 1 DB1702TN-B User manual 17’’- 32” DUAL GAMING SUPPORT FOR TWO 17’’- 32’’ SCREENS VESA: 75x75 y 100x100...
- Page 2 Content M-A (x4) M4x12 C (x1) A (x1) B (x1) M-B (x4) M5x12 G (x3) E (x1) F (x4) D (x1) M6x16 M-C (x4) K (x1) H (x2) J (x1) I (x2) 6 mm 4 mm M3x8...
- Page 3 Before installation • Read the instruction manual, if you are in any doubt about the instructions or warnings, contact your local dealer. • Make sure you have received all parts according to the components checklist for installation. If any parts are missing or defective, please contact your local distributor.
- Page 4 Installation...
- Page 5 Installation Note: You will need to position the VESA Mounts to an UP position. To do that insert the VESA plate and rotate it to an upright position as shown. When complete, remove the VESA plate and proceed to the next step.
- Page 6 Installation...
- Page 7 Installation long short...
- Page 8 Installation CAUTION: Please make sure you attach same monitors on the table stand otherwise the table stand might be inverted. Also, while you are installing a monitor on the one side, another person should hold the other side of the mount to keep the table stand stable.
- Page 9 Installation...
- Page 10 Installation CAUTION: DO NOT use the display beyond the arrow range, avoid tipping.
- Page 11 Installation CAUTION: If you adjust the VESA plate on the one side, another person should hold the other side of the mount to keep the table stand stable. Note: If the display does not stop at your desired position, tighten the screws as shown.
- Page 12 Installation...
- Page 13 Warranty information Since January 1 2022, TooQ offers a 3-year warranty from the time of purchase, so it will always keep the purchase ticket or invoice containing the date of purchase. The distributor or retailer from whom you purchased the product will attend to your claim and offer technical service while the warranty is in force.
