Operating Manual

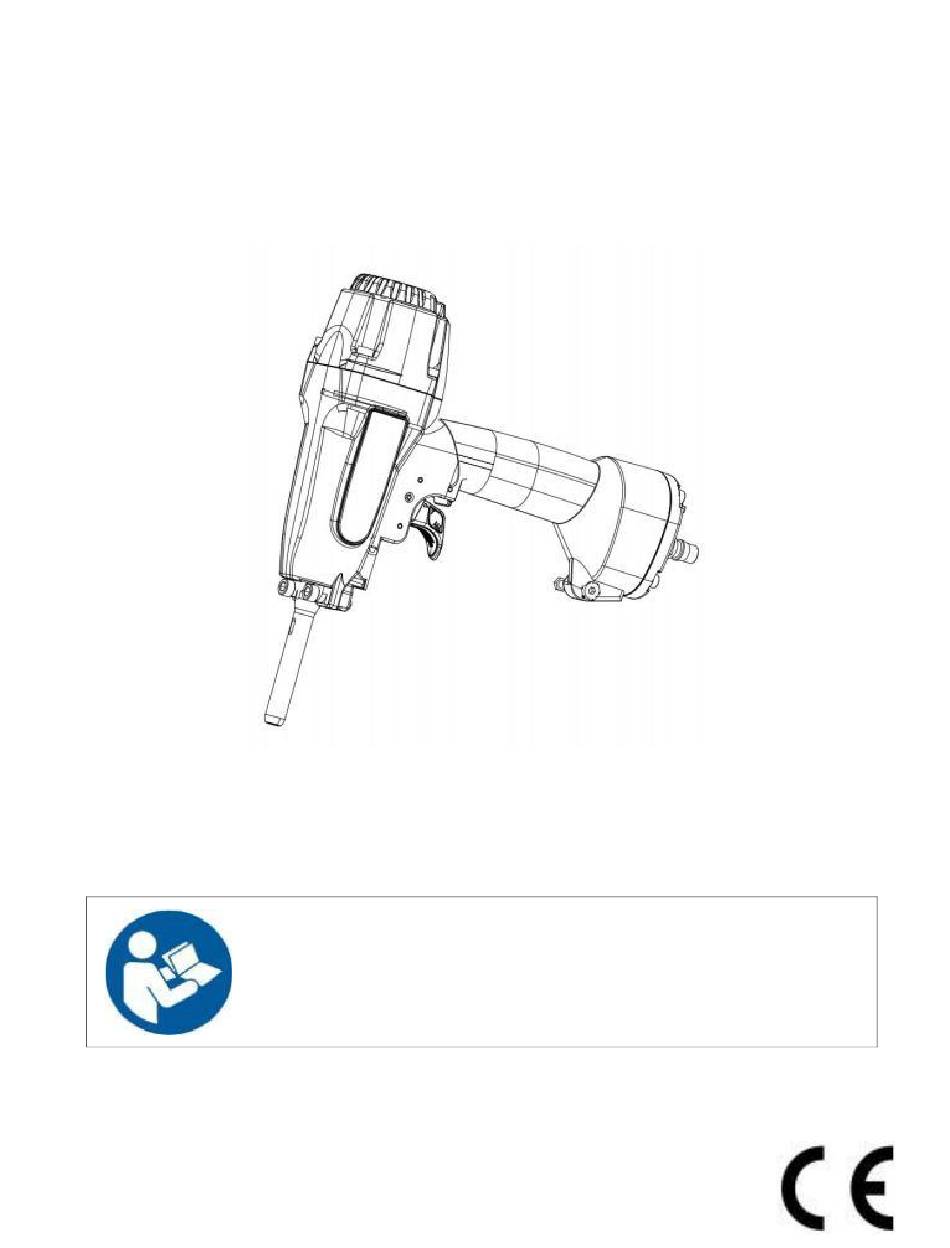

-- NP45 Nail Remover --
NOTE: Please read and fully understand the instructions in this
manual before operating the pneumatic power tool. Carefully read
through this OPERATOR'S MANUAL to ensure efficient, safe
operation. It is recommended that the Manual be kept readily available
as an important reference when using this tool.
0
Advertisement
Related Manuals for RGN NP45
Summary of Contents for RGN NP45
- Page 1 Operating Manual -- NP45 Nail Remover -- NOTE: Please read and fully understand the instructions in this manual before operating the pneumatic power tool. Carefully read through this OPERATOR'S MANUAL to ensure efficient, safe operation. It is recommended that the Manual be kept readily available...
- Page 2 IMPORTANT INFORMATION WARNING: The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. When using the tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment.
- Page 3 WARNING: The operating instructions shall draw attention to the following a) Only those fasteners listed in the operating instructions may be used in the fastener driving tools; NOTE: The fastener driving tool and the fasteners listed in the operating instructions must be seen as one unit system in terms of technical safety.
- Page 4 SAFETY INFORMATION WARNING: BEFORE USING THE TOOL, READ CAREFULLY AND UNDERSTAND THE FOLLOWING SAFETY INSTRUCTIONS.FAILURE TO FOLLOW WARNING COULD RESULT IN DEATH OR SERIOUS INJURY. 1. WEAR SAFETY GLASSES OR GOGGLES. Danger to the eyes always exists due to the possibility of dust being blown up by the exhausted air or of a fastener flying up due to the improper handling of the tool.
- Page 5 6. DO NOT USE A WRONG FITTING. The connector on the tool must not hold pressure when air supply is disconnected. If a wrong fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the line of air is disconnected, possibly causing injury.
- Page 6 Ladder alike constructions, e.g. roof laths, Closing boxes or crates, Fitting transportation safety systems e.g. on vehicles and wagons. TECHNICAL DATA Type of tool NP45 Nail Remover Dimensions 275 x 62 x 273 mm Weight (without fasteners) 1.27 kgs Recommended pressure range 4.8 ~ 8.3 bar...
- Page 7 Air Supply, Connections and Operating Pressure Read section titled SAFETY. Make sure of the following before operation: Air Supply Power Source (Compressor) Use only clean, dry, regulated compressed air as a power source for this nail remover. NEVER use oxygen or other bottled gases, as an explosion may occur. Use suitable air compressors used to supply compressed air to this nail remover Moisture or oil in the air compressor may accelerate wear and corrosion in...
- Page 8 The supply hose should contain a fitting that will provide "quick disconnecting" from the male plug on the tool. Operating Pressure Recommended operating pressure range is 70 to 100 psi. Maximum permissible operating pressure is 120 psi. Select the operating pressure within this range for the best fastener performance. The nail length and thickness and the hardness of the wood are factors in determining what the pressure should be set at.
- Page 9 2. Operation Keep hands and body away from the discharge outlet when driving the fasteners because of dangerous of hitting the hands or body by mistake. Test operation (1) Adjust the air pressure at 70psi. (5 bar) and connect the air supply. (2) Without touching the trigger, depress the contact arm against the work-piece.
- Page 10 PARTS LIST – NP45 CODE DESCRIPTION CODE DESCRIPTION 610560 BOLT M6X20 640250 STRAIGHT PIN B3X15 321600 BUSHING 421820 TRIGGER VALVE CAGE 410490 EXHAUST COVER 510410 O-RING 18.3X2.65 321590 EXHAUST FILTER (A) 511240 O-RING 11.8X2.65 321580 EXHAUST FILTER (B) 420080 TRIGGER VALVE CAP...
- Page 11 TOOL SCHEMATIC – NP45...
- Page 12 IMPORTER: NOBE ApS Bjødstrupvej 10 DK – 8410 Rønde Denmark Tel: + 45 8615 1913 E-mail: info@nobe.dk www.nobe.dk / www.rgneurope.com Nail Remover NP45 2024...
