Office Star Products Space Seating 2787R Operating Instructions

ÉTAPE 1 ÉTAPE 2
13
X 5
2
9
1
8
ÉTAPE 4 ÉTAPE 5
13
11
X 3
12
4
6

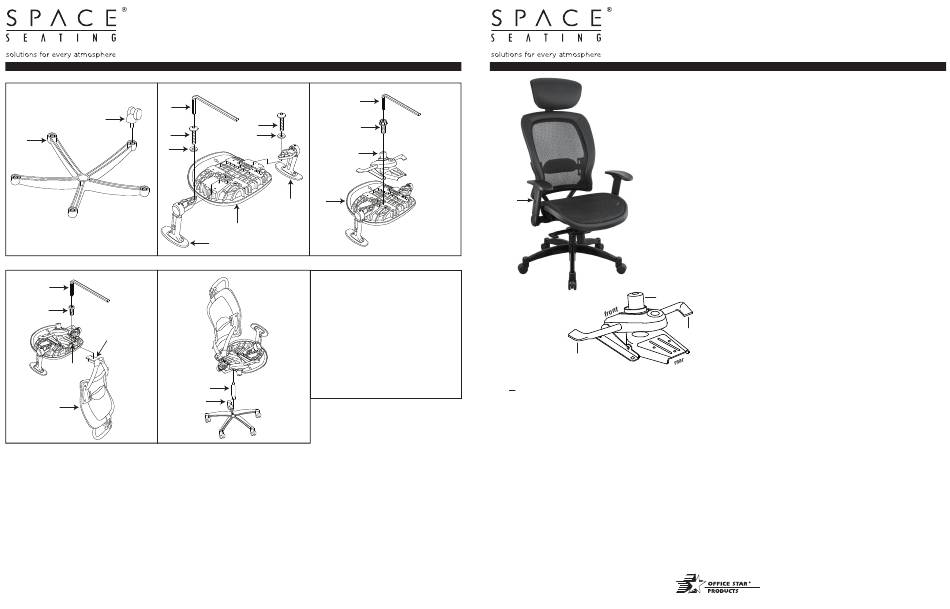

Enlever toutes les pièces du carton, les organiser selon les numéros de pièce indiqués sur la liste et vérifier que les quantités des pièces
reçues sont correctes.
ÉTAPE 1 Insérer les cinq roulettes (2) dans la base (1). Pousser fermement jusqu'à ce que les roulettes (2) s'encliquettent.
ÉTAPE 2 Fixez les bras (7L & 7R) au coussin de siège (5) en utilisant trois rondelle plates (8) et trois vis su bras (9) pour chaque bras.
SERREZ TOUTES LES VIS AVEC LA CLÉ ALLEN (13).
ÉTAPE 3 Attachez la plaque du siège (4) au coussin de siège (5) avec la flèche vers l'avant de la chaise, en utilisant quatre vis du plaque du siège (10).
SERREZ TOUTES LES VIS AVEC LA CLÉ ALLEN (13).
ÉTAPE 4 Fixer le support du dossier (12) à l'arrière du plaque du siège (4) à l'aide trois vis du dossier (11).
SERREZ TOUTES LES VIS AVEC LA CLÉ ALLEN (13).
ÉTAPE 5 Insérer le vérin pneumatique (3) dans la base (1). Placer le siège assemblé sur le dessus du vérin pneumatique (3) et pousser vers le bas.
ATTENTION: AVANT D'UTILISER LE FAUTEUIL, S'ASSURER D'AVOIR SERRÉ COMPLÈTEMENT TOUTES LES VIS.
2787R / 27876R
CHAISE PROFESSIONNELLE AVEC DOSSIER
EN MAILLE RESPIRANTE
INSTRUCTIONS DE MONTAGE
ÉTAPE 3
13
X 3
9
10
X 3 8
X 3
X 3
4
5
7L
5
7R
PIÈCE
1. Base . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Roulettes . . . . . . . . . . . . . . . . . . . . . . . .5
3. Vérin pneumatique . . . . . . . . . . . . . . . . .1
4. Plaque du siège . . . . . . . . . . . . . . . . . . .1
5. Coussin du siège . . . . . . . . . . . . . . . . . .1
6. Dossier. . . . . . . . . . . . . . . . . . . . . . . . . .1
7. Bras (7L et 7R) . . . . . . . . . . . . . . . . . . . .2
8. Rondelle plate. . . . . . . . . . . . . . . . . . . . .6
9. Vis du bras . . . . . . . . . . . . . . . . . . . . . . .6
10. Vis du plaque du siège . . . . . . . . . . . . .4
11. Vis du dossier . . . . . . . . . . . . . . . . . . . .3
12. Support du dossier (pre-installed). . . . . .1
3
13. Clé Allen. . . . . . . . . . . . . . . . . . . . . . . .1
1
© Office Star Products novembre, 2023
X 4
4
QTÉ
SPACE LIMITED WARRANTY
SPACE® chairs are warranted* from the date of purchase against failure due to material and workmanship as follows:
• Lifetime on component parts including pneumatic cylinder, control mechanism, base and casters.
• 3 Years on upholstery fabric and foam against wear and deterioration.
• Leather is not warranted against routine scratching and scuffing, as leather is subject to minor blemishes in.
To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At it's
option Office Star Products will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer's component. The customer must prepay freight on any components returned to the factory. Return freight on
components still in warranty will be paid by Office Star Products.
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 250 lbs.
or less. The 63-37A773HM, 75-7A773, 75-37A773, 75-47A773 and 839-11B35WA are for persons weighing 400 lbs. or less, the 818 & select 829's with
selfadjusting mechanism are 300 lbs. or less and the 15-37A720D is 325 lbs. or less. This warranty will not cover labor, freight or damage from misuse, abuse,
negligence, alteration, accident, vandalism, rusting, acts of nature or any other event beyond the control of Office Star Products. The warranty does not cover
cosmetic damage that may result from normal use. Liability for incidental or consequential damages is excluded. The user assumes all risk of injury resulting
from use of this product. When usage is more than 40 hours per week, a five year warranty on all parts applies. Fabric is warranted for one year. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
All Work Smart chairs are built to meet or exceed ANSI BIFMA standards.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts are damaged or missing. Our
Parts Department will do everything possible to promptly remedy the problem. Contact us via e-mail parts.department@officestar.net, by Fax 1-909-930-5629, or
toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 3:30pm. Pacific Ti
2787R / 27876R

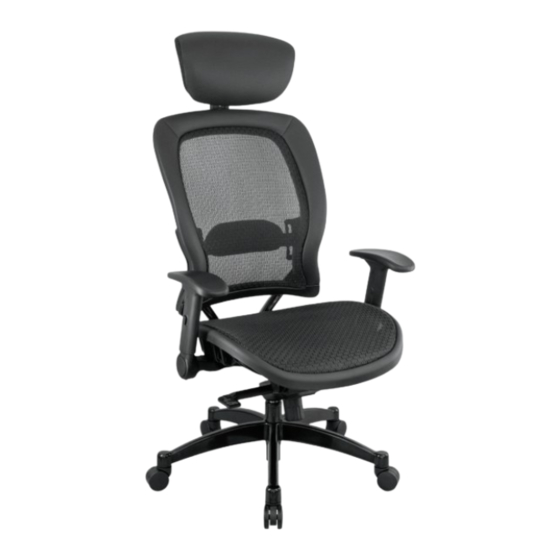

PROFESSIONAL BREATHABLE MESH EXECUTIVE CHAIR
OPERATING INSTRUCTIONS
FEATURES
2787R (not shown)
• PNEUMATIC SEAT HEIGHT ADJUSTMENT
To raise seat remove pressure from seat and pull lever (1) up.To
lower seat height sit on chair and pull lever (1) up.
NOTE: It is normal for chair to slightly lower under body weight.
• INFINITE LOCKING 2-to-1 SYNCHRO KNEE TILT CONTROL
To lock, turn lever (2) up. To unlock and free float, turn lever (2)
down. Back reclines at twice the rate of the seat
• TILT ADJUSTMENT
For individual comfort, this chair has been equipped with an
adjustment that will allow the user to change the tension of the
tilting feature. Turn knob (3) clockwise to increase tension and
counter-clockwise to decrease or ease the tension.
NOTE: Be careful not to loosen tilt adjustment knob completely.
• ADJUSTABLE ARMS
- Height Adjustment: Push button (4) in to allow arms to
move up or down freely, release button (4) once the desired height is
reached.
- Flip Arm: To flip arm, simply pull up on arm. To lower arm, simply
pull down on arm.
WARNING
1. Use this product only one person at a time.
2. Do not use this chair unless all bolts screws and knobs are
3 securely tightened.
3. Check that all bolts screws and knobs are tight every three months or
as needed.
4. Do not overturn back tilt knob when decreasing tension.
5. Dispose of packing material properly. Do not use plastic cover as head
2
covering. It may cause suffocation.
6. Do not use chair as a stepladder.
7. Use this chair for its intended purpose only.
1
8. Use mild detergent only for cleaning.
me.
