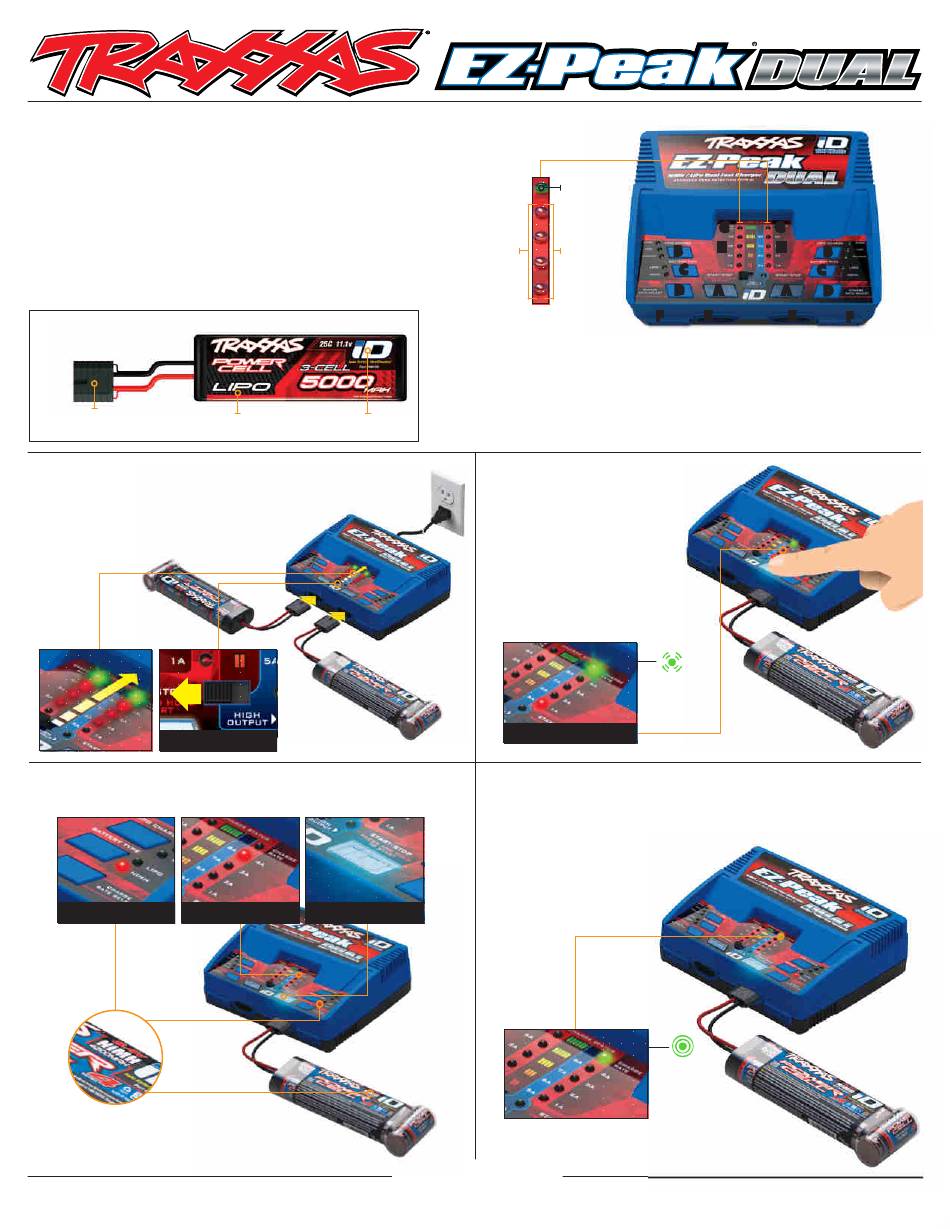

NiMH/Li PO D UA L CHA RGER I NSTRU CTION S

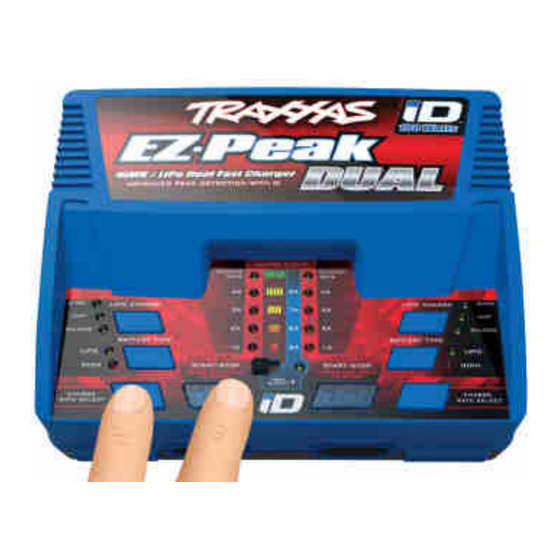

Thank you for purchasing the Traxxas EZ-Peak Dual charger.
This charger features exclusive Traxxas innovations that make
charging batteries easier and safer than ever. If you have any
questions or concerns about your charger, please contact our
customer support team for fast, friendly answers and solutions.
Contact information is at the bottom of this page.
WARNING! For best charging results and your safety, it is essential that you read and
understand these instructions, warnings, and precautions before using the charger.
Charging and discharging batteries has the potential for serious injury and damage
to property. Use care when charging and follow all instructions and cautions.
Identifying iD Batteries
LiPo battery shown, NiMH battery similar
Traxxas High-Current
Battery Type
Connector
Charging Traxxas iD NiMH Batteries
1. Plug the charger into an AC wall outlet
and connect the battery/batteries
The charger will recognize the iD batteries
and show you the charge settings.
Dual Charge Mode
2. Verify the charge settings
Battery type selected must match the battery type shown on the battery.
Charge Rate
Battery Type
Traxxas, 6250 Traxxas Way, McKinney, TX 75070, Phone: 1-888-TRAXXAS (Toll-free, US only) or 9 72-549- 3000, Fa x: 972-549-3011, e-mail: support@Traxxas.com
Charge Rate
(Amps)
A. Start/Stop
B. LiPo Charge Mode Select
C. Battery Type Select
D. Charge Rate Select
*Note:
Either charger output port can be used independently or both ports can be used
simultaneously to charge. Use the buttons corresponding with the chosen port(s) to
iD Logo
operate the charger.
3. Charging
Press and hold the Start button(s)
for 1 second. The charger will
play a tone, indicating that
charging has started. Press once
to stop. The charger will play a
tone, indicating that charging
has been canceled. The charge
progress LEDs will light as the
battery charges.
Charge Cycle Progress
4. Charge cycle complete
The charger will play a complete tone, followed by one or two beeps
to indicate channel 1 (left) or channel 2 (right) charging is complete.
The EZ Peak Dual will
trickle charge your NiMH
battery at up to 200mA
for 12 hours after the
Start
charge cycle is complete.
T R AX X A S. com
Charge
Status
G
Charge
H
B
Progress
C
D
A
F
E
E. Charger Output Ports (Traxxas
High-Current Connector)*
F. 2S/3S Lipo Balance Ports
(pull to remove cover)
Charging
(flashing)
Cycle
Complete
(solid)
Covers Part #2972X
G
H
B
C
A
D
E
F
G. Charge Status LEDs
H. Charge Progress/
Charge Rate LEDs
HKC180 31-R02 1808 08
