Ni MH/Li PO F AST CHA RGER I N STRU CTION S
Thank you for purchasing the Traxxas EZ-Peak Plus charger. This charger features exclusive
Traxxas innovations that make charging batteries easier and safer than ever. If you have any
questions or concerns about your charger, please contact our customer support team for
fast, friendly answers and solutions. Contact information is at the bottom of this page.
WARNING! For best charging results and your safety, it is essential that you read and
understand these instructions before using the charger. Charging and discharging batteries
has the potential for serious injury and damage to property. Use care when charging and
follow all instructions and cautions.

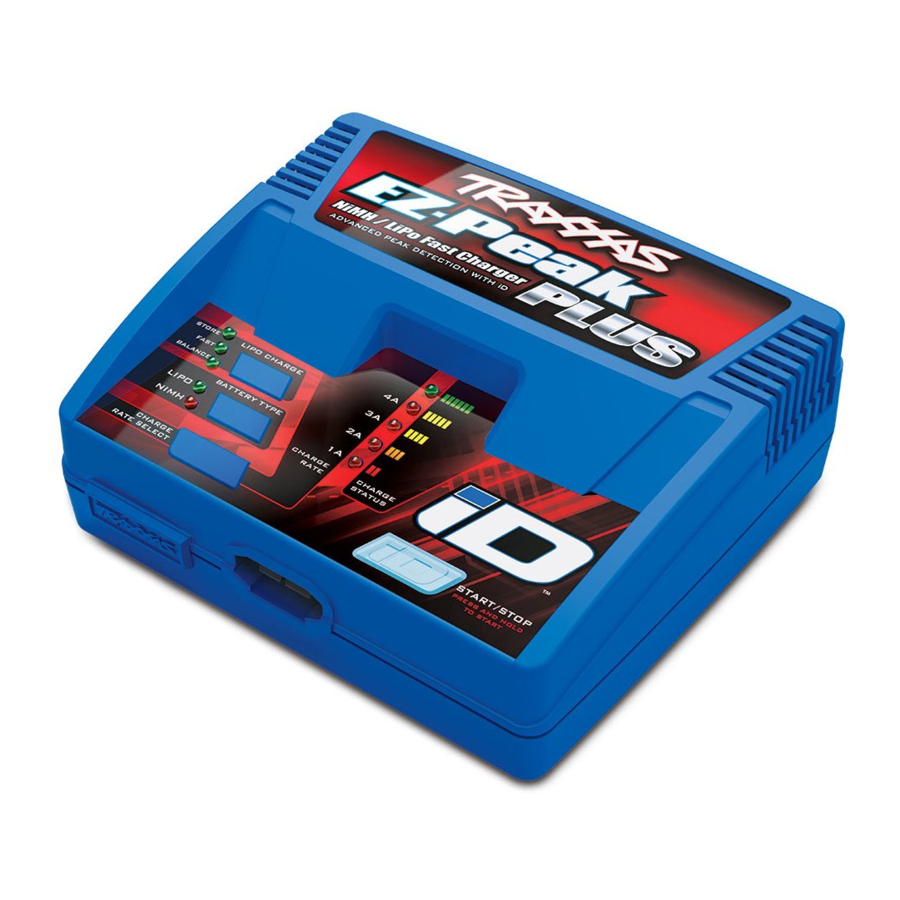

Charge
Status
Charge Rate Charge
(Amps) Progres s
A. Battery iD Start/Stop
E. Charger Output Port (Traxxas High-Current Connector)
B. LiPo Charge Mode Select
F. 2S/3S Lipo Balance Ports (pull to remove cover)
C. Battery Type Select
G. Charge Status LED
D. Charge Rate Select H. Charge Progress/Charge Rate LEDs

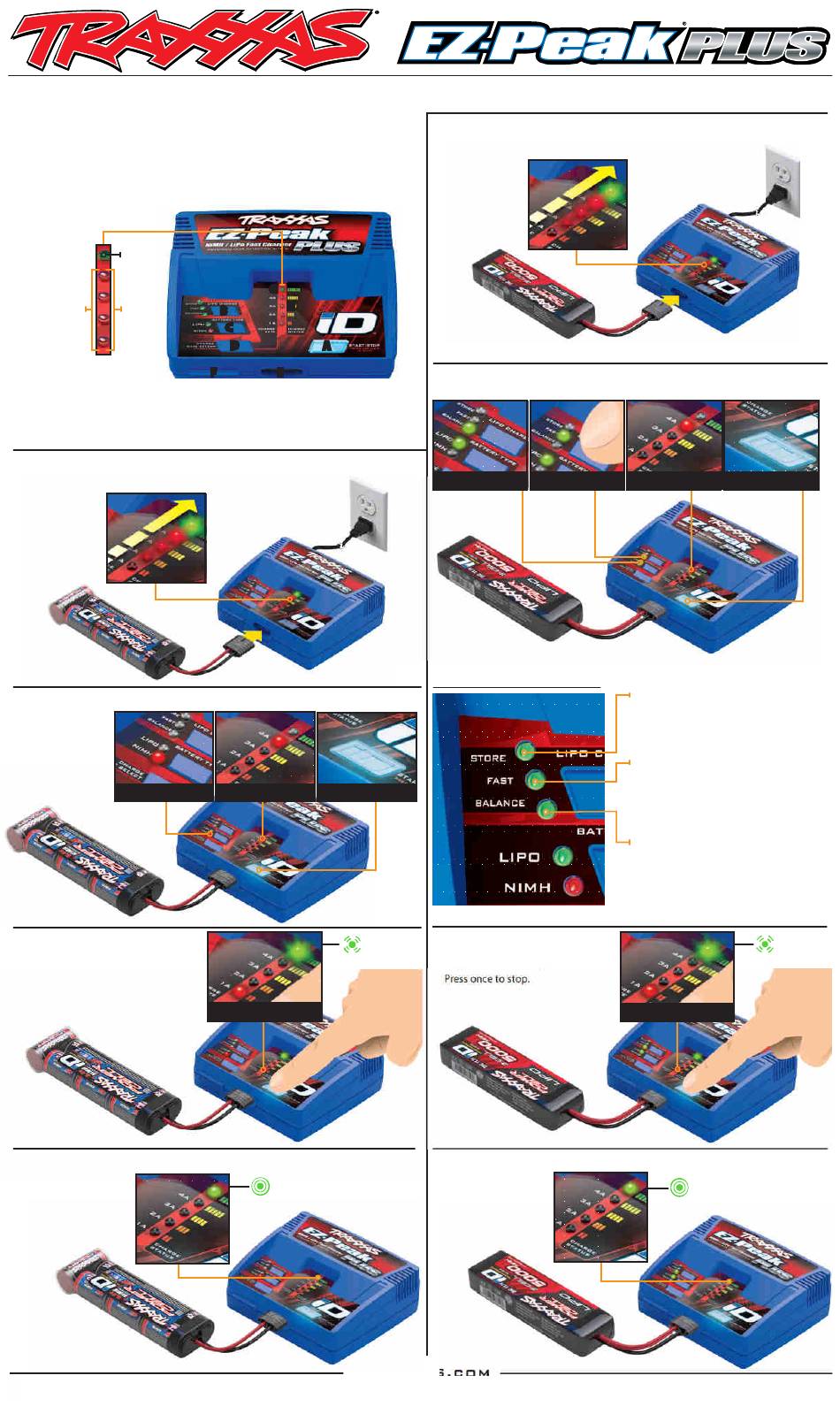

Charging Traxxas iD NiMH Batteries

1. Power up the charger and connect the battery

2. Verify charge settings

Battery type
selected must
match the battery
type shown on
the battery.
Battery Type

3. Charging

Press and hold Start
button 2 seconds to start.
Press once to stop.

4. Charge cycle complete

The EZ Peak Plus will
trickle charge your
NiMH battery at up to
200mA for 12 hours
after the charge cycle
is complete.
Traxxas, 6250 Traxxas Way, McKinney, TX 75070, Phone: 1-888-T RAXXAS (Toll-fr ee, US only) or 9 72- 549-3000, Fax: 9 72-549-3011, e -ma il: support@ Traxxas.com
G
H
B
C
D A
F E
Charge Rate Start
Charging
(flashing)
Charge Cycle Progress
Cycle Complete
(solid)
T R A XX A S .co m

Charging Traxxas iD LiPo Batteries

1. Power up the charger and connect the battery
2. Verify charge settings
Battery type selected must match the battery type shown on the battery.
Battery Type
Charge Mode

LiPo Charging Modes

3. Charging
Press and hold Start
button 2 seconds to start.
Press once to stop.
4. Charge cycle complete
Covers Part #2970 (USA)
Part #2970X (International)
Charge Rate Start
Storage charge
Makes it easy to charge or discharge the
battery to the proper storage voltage. Use this
mode whenever the battery will be stored
unused for more than 7 days.
Fast charge
Fast charges your battery without balancing
your cells. Stops charging when the rst cell
reaches peak voltage. Depending on the
battery, this may reduc e the charge time by a
few mi nutes.
Balance charge
Always balance charge your LiPo batteries
for maximum capacity, voltage, and battery
life. This is the default setting for Traxxas iD
batteries. The EZ-Peak Plus performs a balance
charge quickly and e ciently.
Charging
(flashing)
Charge Cycle Progress
Cycle Complete
(solid)
HKC18010-R02 180611
