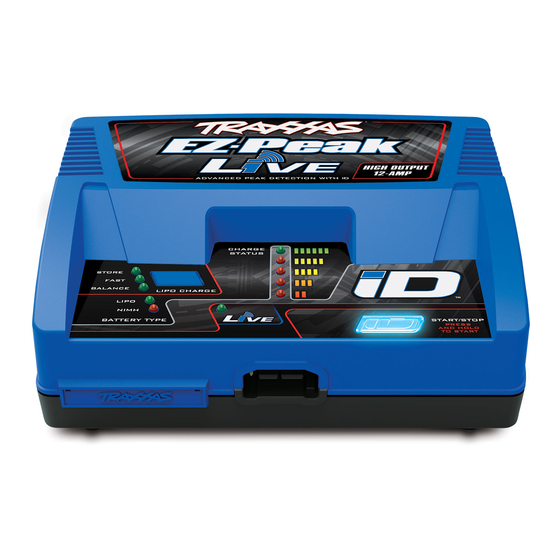

NiMH/LiPO FAST CHARGER INSTRUCTIONS
Thank you for purchasing the Traxxas EZ-Peak Live™ charger.
This charger features exclusive Traxxas innovations that make
charging batteries easier and safer than ever. If you have any
questions or concerns about your charger, please contact our
customer support team for fast, friendly answers and solutions.
Contact information is at the bottom of this page.
WARNING!
For best charging results and your safety, it is
essential that you read and understand these instructions,
warnings, and precautions before using the charger. Charging
and discharging batteries has the potential for serious injury
and damage to property. Use care when charging and follow all
instructions and cautions.

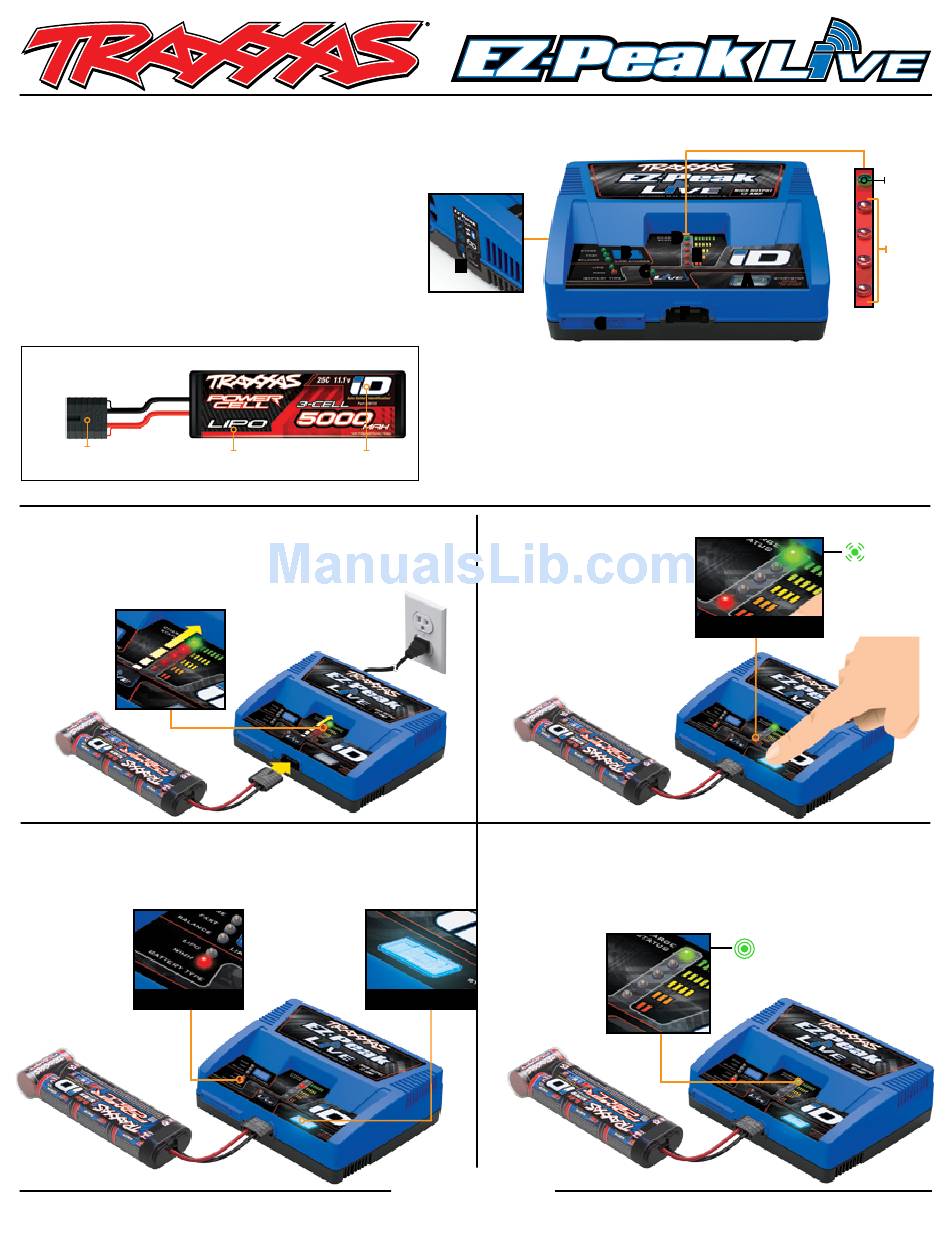

Identifying iD Batteries

LiPo battery shown, NiMH battery similar
Traxxas High-Current
Battery Type
Connector

Charging Traxxas iD NiMH Batteries

1. Plug the charger into an AC wall outlet and connect the battery
The charger will recognize the iD battery
and show you the charge settings.
2. Verify the charge settings
Battery type selected must match the battery type shown on the battery.
Battery Type
Traxxas, 6250 Traxxas Way, McKinney, TX 75070, Phone: 1-888-TRAXXAS (Toll-free, US only) or 972-549-3000, Fax: 972-549-3011, e-mail: support@Traxxas.com
H
A. Battery iD Start/Stop
B. LiPo Charge Mode Select
C. App Live LED
D. Charge Status LED
iD Logo
3. Charging
Press and hold the Start button
for 2 seconds. The charger will
play a tone, indicating that
charging has started. Press once
to stop. The charger will play a
tone, indicating that charging
has been canceled. The charge
progress LEDs will light as the
battery charges.
4. Charge cycle complete
The charger will play a complete tone, followed by a beep to indicate
charging is complete.
The EZ-Peak Live will trickle charge your NiMH battery at a minimum of
100mA for 12 hours after the charge cycle is complete.
Start
T R A XX A S .com
Intelligent battery charger
D
B
E
C
A
F
G
E Charge Progress LEDs
F. Charger Output Port (Traxxas High-Current Connector)
G. 2S/3S/4S Lipo Balance Ports (pull to remove cover)
H. Bluetooth® Button
Charge Cycle Progress
Cycle Complete
Covers Part #2971
2971
Charge
Status
Charge
Progress
Charging
(flashing)
(solid)
HKC16014-R00 160818
