INTRODUCTION

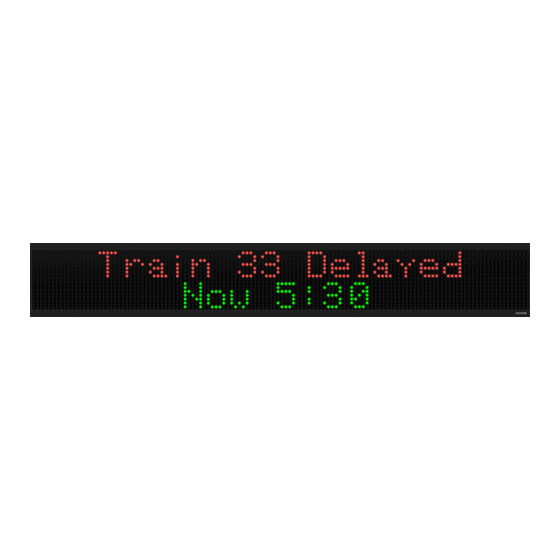

The VL590 IP Large Display provides highly
visible message output over an Ethernet
network. Text messages are created and
delivered from a Valcom Application Server,
Site Manager Server or Interactive Console.
SPECIFICATIONS
Features
•
Easy to read, high visibility
•
Font options
•
Red or Green text messages
•
Power over Ethernet Plus (PoE+) 802.3at
compatible
•
Display can operate as a clock or provide
other messages during idle periods
•
Relay connection for optional equipment
•
Audio line-level output connection
Dimensions / Weight
• 80.75" W x 12.13" H x 3.0" D
(205.10cm W x 30.81cm H x 7.62cm D)
• Weight: 42 lbs. (19.05kg)
Nominal Power Requirements
802.3at (PoE+)
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24 Vdc, or 48 Vdc (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Environment
Temperature:
Humidity: 0 - 95% non-precipitating
Suitable for outdoor exposure to direct rain
(rainproof).
Maintenance
Pressure washing is acceptable, 3100 psi or
less with a 25° nozzle and no closer than 10
feet.
VL590-RG
IP LARGE DISPLAY
Class 4
- 20° to +50° C
1
FCC Information
This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area may cause
harmful interference in which case the user
will be required to correct the interference at
one's own expense.
Issue 1
947102
