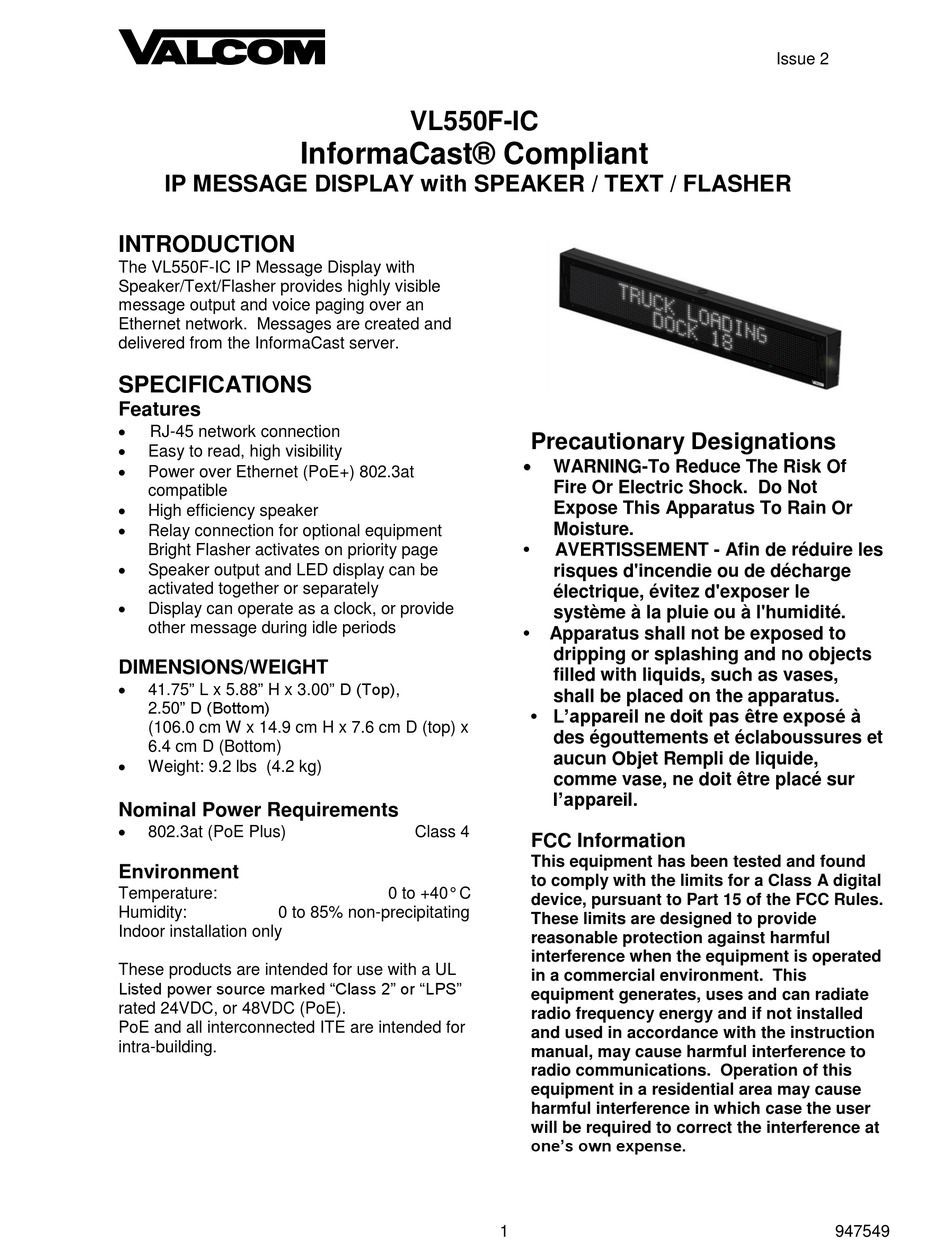

Valcom InformaCast VL550F-IC Quick Start Manual

IP MESSAGE DISPLAY with SPEAKER / TEXT / FLASHER
INTRODUCTION
The VL550F-IC IP Message Display with
Speaker/Text/Flasher provides highly visible
message output and voice paging over an
Ethernet network. Messages are created and
delivered from the InformaCast server.
SPECIFICATIONS
Features

RJ-45 network connection

Easy to read, high visibility

Power over Ethernet (PoE+) 802.3at
compatible

High efficiency speaker

Relay connection for optional equipment
Bright Flasher activates on priority page

Speaker output and LED display can be
activated together or separately

Display can operate as a clock, or provide
other message during idle periods
DIMENSIONS/WEIGHT

41.75" L x 5.88" H x 3.00" D (Top),
2.50" D (Bottom)
(106.0 cm W x 14.9 cm H x 7.6 cm D (top) x
6.4 cm D (Bottom)

Weight: 9.2 lbs (4.2 kg)
Nominal Power Requirements

802.3at (PoE Plus)
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
Indoor installation only
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
VL550F-IC
InformaCast® Compliant
Class 4
0 to +40° C
Precautionary Designations

WARNING-To Reduce The Risk Of
Fire Or Electric Shock. Do Not
Expose This Apparatus To Rain Or
Moisture.
•
AVERTISSEMENT - Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le
système à la pluie ou à l'humidité.
•
Apparatus shall not be exposed to
dripping or splashing and no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
• L'appareil ne doit pas être exposé à
des égouttements et éclaboussures et
aucun Objet Rempli de liquide,
comme vase, ne doit être placé sur
l'appareil.
FCC Information
This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area may cause
harmful interference in which case the user
will be required to correct the interference at
one's own expense.
1
Issue 2
947549
