Wharfedale Pro WLA-210A Series Quick Start Manual

Your full user manual can also be downloaded from
www.wharfedalepro.com
Congratulations on the purchase of your WLA-210A Active system. We take great pride in engineering and
building every Wharfedale Pro product and wish to thank you for entrusting us with your audio.
From the time Gilbert Briggs built his first loudspeaker in 1932, to the present day, we have maintained the
same standard of quality in components, workmanship and performance.
Please take the time to read this guide completely in order to get the most from your new PA.
Specifications
Model Name
System Type
Frequency Response (+/-3 dB)
Frequency Range (-10 dB)
Loudspeaker Sensitivity @ 1 W / 1 m)
Maximum SPL(peak)(@1 m)
Waveguide Type
Nominal Coverage (H x V)
Signal Processing
Preset list
Amplifiers
Amplifier Design
Power Rating:
Power On Protection
Thermal Protection
Low Line Voltage Shut Down
Driver Protection
DC and Short Protection
Limiter Indicator
Signal Indicator
Power/Active Indicator
Find Function Indicator
Input Sensitivity
Maximum Input Level
Input Impedance
AC Power details - Power Supply
Connectors
Input Connector
Link Connector
UPDATE
NETWORK (RS485)
AC Power Options
AC Input Connector
AC Loop Through Connector
Hardware - Rigging
Enclosure Material and finish
Colour Options
Grille Material & Finish
Unpacked dimensions - Height
Width (Front)
Width (Back)
Depth
Packed Dimensions - Height
Width (Front)
Width (Back)
Depth
Net Weight (Kg / lbs)
Gross Weight (Kg / lbs)
Note : Specifications may be subject to change without notice.
WLA-210A
Active 2 x 10" 2-way Bi-Amplified
55 Hz - 20 KHz
50 Hz - 20 KHz
101 dB
133 dB
EvoFold®
100° x 10°
DSP based, 8 FIR presets resident in DSP based,8 presets resident in Input
Input Module
A) 1 SPKR 100 Hz HPF
B) 2 to 4 SPKR 100 Hz HPF
C) 4 to 8 SPKR 100 Hz HPF
D) >8 SPKR 100 Hz HPF
E) 2 to 4 SPKR
F) 4 to 8 SPKR
G) >8 SPKR
H) CUSTOM
Class D
1600 W Peak (1400 W LF +
200 W HF), 800 W Continuous
(700 W LF + 100 W HF)
Power switch on/off mute
Amplifier Shut Down. Auto Reset
80% Nominal Line Voltage
Independent L/ H Limiters and DC
Yes
Red LED
Green LED
White LED
Blue LED
+4 dBu
+18 dBu
Balanced: 10 KΩ
High Efficiency Switching Mode Power High Efficiency Switching Mode Power
Supply
Balanced Female XLR Connector
Balanced Male XLR Connector
USB Type B
RJ45
AC 100-120 V~ and 220-240 V~, 50/60
Hz Automatic
powerCON
powerCON
Integral side plate adjustable
rigging 0°-10°
15 mm / 18 mm Plywood
TOUGH-TONE paint
1.5 Steel
314 mm / 12.4" 190 mm / 7.5"
760 mm / 29.92"
760 mm / 29.92"
503 mm / 19.8"
404 mm / 15.9"
855 mm / 33.7"
855 mm / 33.7"
594 mm / 23.4"
40.0 Kg / 88 lbs
42.7 Kg / 93.9 lbs

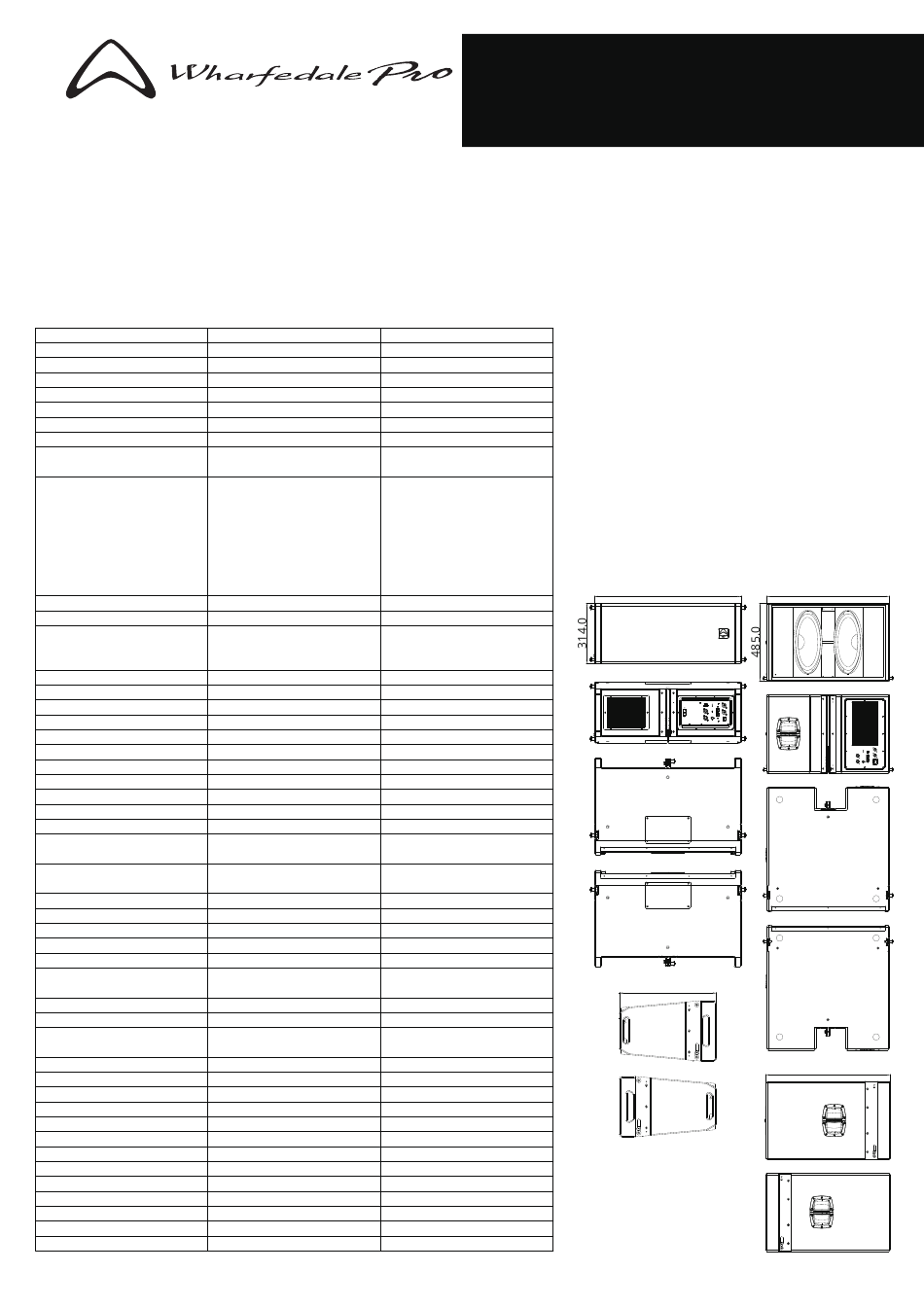

WLA-210A Series
QUICK START GUIDE

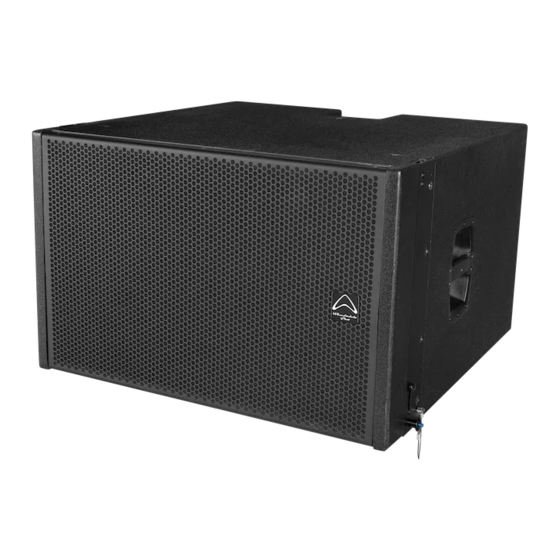

WLA-210SUBA
Active 2 x 15" Subwoofer
39 Hz - 125 HZ
35 Hz - 163 KHz
108 dB
145 dB
-
Module
A) FLOWN
B) FLOWN with 218
C) STACK
D) STACK with 218
E) CARDIOID AUDIENCE
F) CARDIOID STAGE
G) CUSTOM
H) CUSTOM
Class D
4000 W Peak / 2000 W Continuous
Power switch on/off mute
Amplifier Shut Down. Auto Reset
80% Nominal Line Voltage
Independent L/ H Limiters and DC
Yes
Red LED
Green LED
White LED
Blue LED
+4 dBu
+18 dBu
Balanced: 10 KΩ
Supply
Balanced Female XLR Connector
Balanced Male XLR Connector
USB Type B
RJ45
AC 100-120 V~ and 220-240 V~, 50/60
Hz Automatic
powerCON
powerCON
Integral side plate
15 mm / 18 mm Plywood
TOUGH-TONE paint
1.5 Steel
485 mm / 19.1"
760 mm / 29.9"
760 mm / 29.9"
775 mm / 30.67"
575 mm / 22.6"
850 mm / 33.5"
850 mm / 33.5"
865 mm / 34.6"
68.0Kg / 149.6 lbs
72.5 Kg / 159.5 lbs
Product Features
• Active with DSP and FIR filters
• Tough-Tone paint finish
• EVO-Fold waveguides in full range
elements
• Custom phase plugs
• Integral side plate rigging
• Optional WLA-210X Common Fly Frame
• EASE .gll files available for download
Overview
WLA-210A
760.0
503.0
WLA-210SUBA
760.0
775.0
