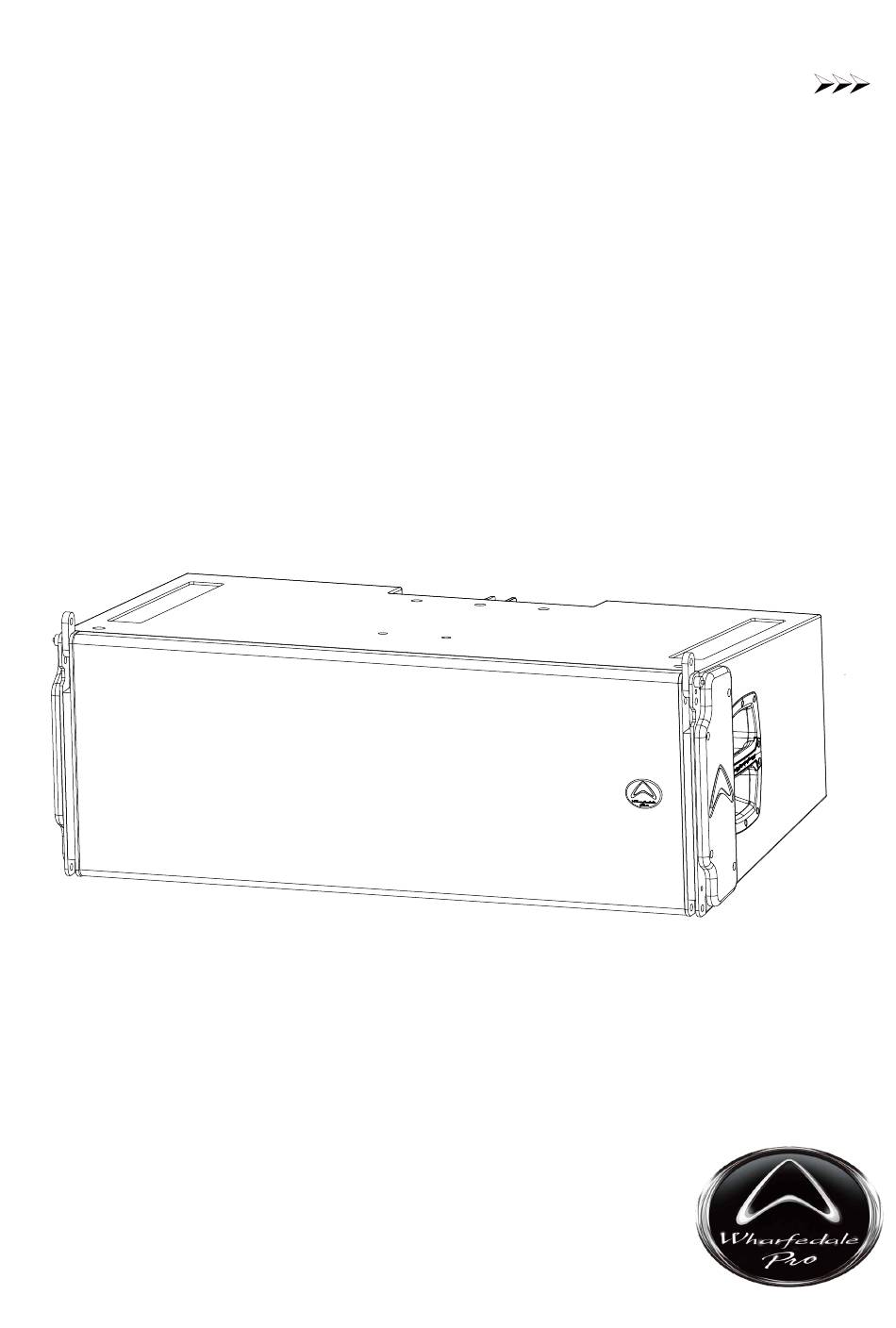

- Page 1 Wharfedale Pro User Manual WLA-312X www.wharfedalepro.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT WARNINGS & SAFETY INSTRUCTIONS ……………………………….1 THREE-WAY LINE ARRAY. HEAR A NEW DIMENSION ……………………………2 LINE DRAWINGS ….………………………………………………………………………3 WIRING DIAGRAM…………………………..………………………………………………4 SUGGESTED CROSSOVER PARAMETERS……………………..………………………5 SPECIFICATIONS ……………………..………………………….…………………………6... -
Page 3: Important Warnings & Safety Instructions
Inspect all mounting hardware before your line array is flown. If there is any damage or distortion to any mounting hardware do not fly the array until any damaged hardware is repaired or replaced. Only use Wharfedale Pro supplied Quick release Pins, contact your Wharfedale Pro Distributor if any quick release pins are lost or damaged. -
Page 4: Three-Way Line Array. Hear A New Dimension
DP-D series amplifier. Either of these DSP systems deliver full signal routing and processing to maximise the power and sonic effect of the WLA-312X array. With full steel grilles, multiple handles and 3 fly frame rigging points, WLA-312X is well suited for touring and for hard work on the road. -
Page 5: Line Drawings
LINE DRAWINGS WLA-312X 550.0 1030.0 116.5 114.0 33.0 50.0 37.0 120.0 100.0 15.0 34.0 30.0 67.0 765.0 WLA-312X FLY FRAME... -
Page 6: Wiring Diagram
Stereo DP-4100D WLA-218B DP-4150D Product list LOUDSPEAKERS AMPLIFIERS Wharfedale Pro manufacture a wide range of power amplifiers and signal processors. WLA-312X x 16 DP-4100D x 4 For recommended accessories, amplifiers and system diagrams please visit www.wharfedalepro.com DP-4150D x 1 WLA-218B x 4... -
Page 7: Suggested Crossover Parameters
Suggested Crossover parameters for use with a Wharfedale Pro Versadrive SC-48 ARRAY SCALING WLA-312X (35 dB Gain Recommended power amplifier) Amplifier Please note: ALL the loudspeakers in the SC-48 Electronic DP-4100(D) same array MUST have the same AS EQ. frequency divider... -
Page 8: Specifications
SPECIFICATIONS Model Name WLA-312X System Type Passive Configuration three-way Frequency Response (+/-3 dB) 50-18 kHz Frequency Range (-10 dB) 40-20 kHz Sensitivity 2.83 v / 1 Meter HF:114 dB/MF:105 dB/LF:102 dB Calculated Maximum SPL @ 1 Meter HF:142 dB/MF:136 dB/LF:138 dB Low Frequency Transducer ... - Page 9 Wharfedale Pro products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorised Wharfedale Pro dealer or distributor for information. Please be aware that the warranty details may differ from country to country. Contact your dealer or distributor for information (available at www.wharfedalepro.com).
