10/100/1000bt to 1000bx poe+ gb media converter (16 pages)
Summary of Contents for Black Box LGC120A-R4

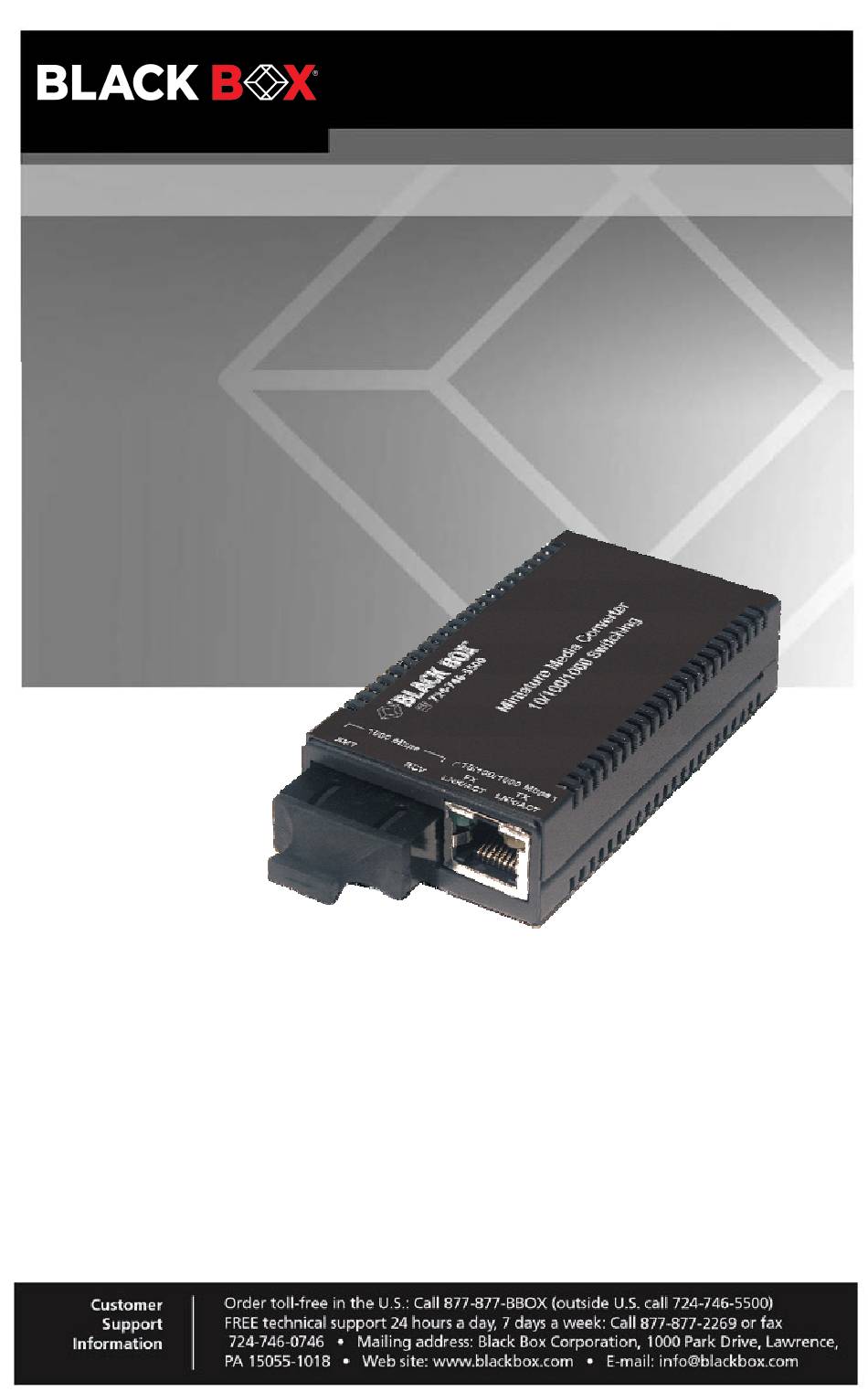

Page 1

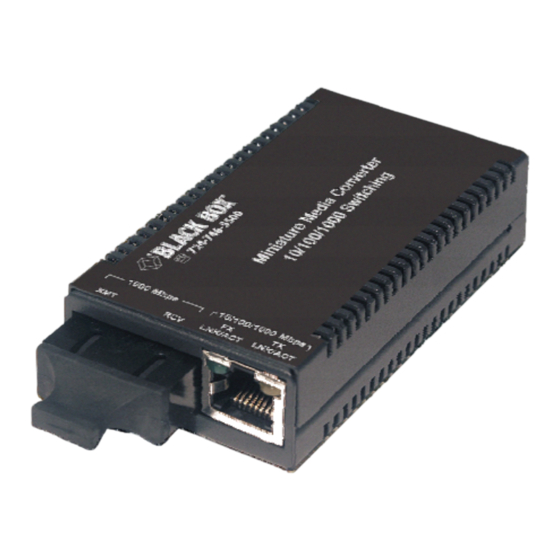

LGC120A-R4 LGC125A-R4 LGC121A-R4 LGC126A-R4 LGC122A-R4 Miniature Media Converter 10/100/1000 Switching Connect Ethernet, Fast Ethernet, or Gigabit Ethernet copper ports to 1000-Mbps multimode duplex, single-mode duplex, or single-mode single-strand fiber optic cable.
Page 2
TRADEMARKS USED IN THIS MANUAL Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. Page 2 877-877-2269 | blackbox.com...
Page 3
Class A certified device. This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada. LGC120A-R4 877-877-2269 | blackbox.com Page 3...
Page 4
Following these steps through proper disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about proper disposal, please contact local authorities, waste disposal services, or the point of purchase for this equipment. Page 4 877-877-2269 | blackbox.com LGC120A-R4...
Page 5
Powering the Miniature Media Converter 10/100/1000 Switching ..9 Operation....................10 LED Operation..................10 Contacting Black Box ................11 Fiber Optic Cleaning Guidelines ............12 Electrostatic Discharge Precautions ............ 13 LGC120A-R4 877-877-2269 | blackbox.com...
Page 6
Part Numbers Part Numbers Part Number Description LGC120A-R4 TX/SX-MM850-SC TX/LX-SM1310-SC LGC121A-R4 LGC122A-R4 TX/LX-SM1310/PLUS-SC LGC125A-R4 TX/SSLX-SM1310-SC (1310xmt/1550rcv) LGC126A-R4 TX/SSLX-SM1550-SC (1550xmt/1310rcv) Page 6 877-877-2269 | blackbox.com LGC120A-R4...
Page 7
Ethernet Connections 10/100/1000 BaseT, Auto Negotiation, Auto-Cross, Flow Control, 1536 MTU, Full Line-Rate Forwarding Dimensions 0.83”H x 1.80”W x 3.35”D (2.11 x 4.57 x 8.51 cm) NOTE: The media converters are now compliant to EN62368. LGC120A-R4 877-877-2269 | blackbox.com Page 7...
Page 8
FDX (including Flow Control). The Miniature Media Converter 10/100/1000 Switching offers plug-and-play operation, including the AutoCross feature which automatically selects between a crossover work-station or pass-through repeater hub connection depending on the connected device. Page 8 877-877-2269 | blackbox.com LGC120A-R4...
Page 9
Chapter 3: Install the Miniature Media Converter 10/100/1000 Switching 3. Install the Miniature Media Converter 10/100/1000 Switching The Miniature Media Converter 10/100/1000 Switching installs in a Black Box PowerTray 18-slot or can be used as a standalone media converter. As a standalone, the Miniature Media Converter 10/100/1000 Switching uses a universal external switching power cube with 100 –...
Page 10
FX LNK/ACT blinks green when activity is detected on the fiber port. Glows amber when a link is established on the copper port; TX LNK/ACT blinks amber when activity is detected on the copper port. Page 10 877-877-2269 | blackbox.com LGC120A-R4...
Page 11
Chapter 5: Contacting Black Box 5. Contacting Black Box Black Box Customer Service Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Free technical support, 24 hours a day, 7 days a week. Call: 877-877-2269 or Fax: 724-746-0746...
Page 12
2. Dust caps are installed at Black Box to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. If you need to disconnect the fiber device, reinstall the protective dust caps.
Page 13
WARNING! Integrated circuits and fiber optic components are extremely susceptible to electrostatic discharge damage. Do not handle these components directly unless you are a qualified service technician and use tools and techniques that conform to accepted industry practices. LGC120A-R4 877-877-2269 | blackbox.com Page 13...
Page 16
Black Box Tech Support: FREE! Live. 24/7. Tech support the way it should be. Great tech support is just 60 seconds away at 877-877-2269 or blackbox.com. About Black Box Black Box is a trusted IT solutions provider delivering cutting-edge technology ®...
