Summary of Contents for DeLonghi EAM3300

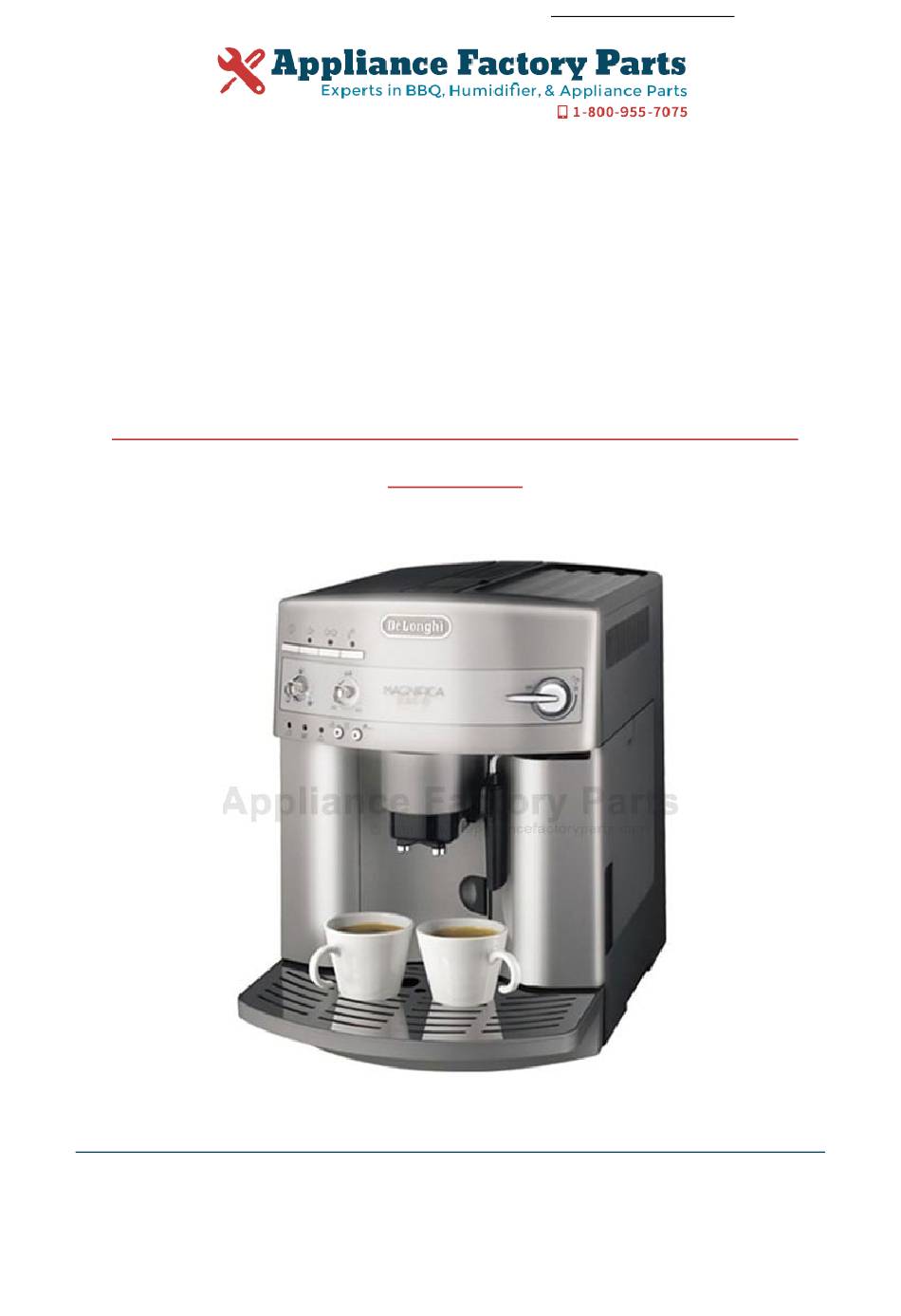

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. DELONGHI EAM3300 Owner's Manual Shop genuine replacement parts for DELONGHI EAM3300 Find Your DELONGHI Coffee Maker Parts - Select From 289 Models -------- Manual continues below --------...
- Page 2 Coffee has been used to factory test the appliance and it is therefore completely normal for there to be traces of coffee in the mill. This appliance is however guaranteed to be new. Important safeguards … … … … … … … … … … … … … … … … … … … …5 Description of the appliance …...
- Page 3 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the fol- lowing: • Read all instructions. • Do not touch hot surfaces. Use handles and knobs. • To protect against fire, electrical shock and personal injury, do not immerse cord, plug or appliance in water or other liquid.
- Page 4 1. DESCRIPTION OF THE APPLIANCE (SEE PAGE 3) A. Cup warmer tray M. Infuser B. Steam knob N. Power cable C. Steam spout O. Milk frother (removable) D. Milk frother P. Milk frother nozzle (removable) E. Water tank (removable) Q. Measure for pre-ground coffee F.
- Page 5 2 SAFETY WARNINGS 3 INSTALLATION • After unpacking, make sure the appliance is CAREFULLY READ AND KEEP THESE INSTRUC- complete and undamaged. If in doubt, do not TIONS! use it. Contact professionally qualified person- • This machine is designed to “make espresso nel.
- Page 6 To correctly learn how to use the machine, when starting it for the first time, carefully follow the step-by-step instructions described in the fol- lowing paragraphs. 4 PREPARING THE COFFEE MAKER 4.1 FILLING THE WATER TANK • Remove the water tank (Fig.1), rinse it and fill it with fresh water, with- out exceeding the MAX line.
- Page 7 5 PREPARING THE COFFEE (USING COFFEE BEANS) 1) Before delivering the coffee, always make sure that the green lights are on steady, that the water tank and the coffee bean container are full. 2) Adjust the right-hand knob (Fig. 7) to set the desired taste of the coffee. Turning the knob clockwise increases the quantity of coffee beans that the machine will grind, and thus makes the taste of the coffee stronger.
- Page 8 Then let the water flow out into the drip tray underneath, or alternatively use this water to fill (and then empty) the cup to be used for the coffee, so as to pre-heat it. 2) Unless preheated, do not use cups that are too thick, as they will absorb too much heat.
- Page 9 When using the machine for the first time, 4-5 cups of coffee need to be made before the machine starts to give satisfying results. When an alarm light comes on to signal an anomaly, do not contact the service centre straight away. The problems can almost always be resolved by following the instructions indicated in paragraphs 12 and 13.
- Page 10 7 PREPARING ESPRESSO COFFEE WITH GROUND COFFEE (INSTEAD OF BEANS) 1. Press the button to select the ground coffee function (Fig. 18). The light inside the button switches on to indicate that the function has been selected and the coffee grinder has been disabled. 2.
- Page 11 9 PREPARING CAPPUCCINOS (USING STEAM) • Move the cappuccino maker outwards (fig. 6) • Place an empty recipient under the cappuccino maker (fig. 3). Turn the steam knob a half turn counter-clockwise as far as it will go (the light flashes fig. 22). Run off the steam mixed with water for a few seconds until only steam is given off.
- Page 12 • Check that the two holes indicated by the arrows in Fig. 27 are not clogged. If necessary, clean them using a needle or pin. • Replace the steam nozzle by inserting it and vigorously turning it upwards into the steam spout. •...
- Page 13 10.2 CLEANING THE INFUSER The infuser must be cleaned regularly to prevent it from filling with coffee deposits (that may lead to malfunctions). To clean it, proceed as follows: • turn the machine off by pressing the button (Fig. 4) (do not unplug it) and wait for all the indicator lights to go off;...
- Page 14 Check that the two red buttons have opened back out, otherwise the door cannot close. The two red but- The two red but- tons have opened tons have not out CORRECTLY opened out INCORRECT CORRECT NOTE 1: If the infuser is not inserted correctly until hearing the click and the two red buttons have not opened out properly, the service door will not close and the machine will not operate (when switching on the machine the...
- Page 15 • after around 30 minutes, when the light comes on (chap. 12 - point 1), turn the steam knob half a turn clockwise (Fig.6) until it stops. The machine must be rinsed so as to eliminate the residues of descaling solution from inside the machine.
- Page 16 11 MEANING OF THE NORMAL OPERATION INDICATOR LIGHTS LIGHT DESCRIPTION MEANING The machine is not ready to make coffee (the ideal indicator water temperature has not yet been reached). lights flash Wait for the indicator lights to come on steady before making the coffee.
- Page 17 12 MEANING OF THE ALARM INDICATOR LIGHTS AND WHAT TO DO WHEN THEY ARE ON MEANING ACTION LIGHTS DESCRIPTION Fill the water tank as described in par. The water tank is empty or is 5, note 6 and insert it fully. light is on positioned incorrectly.
- Page 18 MEANING DESCRIPTION ACTION LIGHTS After cleaning, the infuser has Insert the infuser, see par. 10.2 probably been left out of the coffee light is on maker steady and the green lights are flashing. Thoroughly clean the inside of the The inside of the machine is very machine, as described in par.
- Page 19 PROBLEM CAUSE SOLUTION Scrape the remains of dry coffee • The coffee does not come • The outlet is blocked accumulated with a needle (Fig. out of one of the spouts. 28). • Turning the steam knob, no • The holes in the spouts are Clean the holes in the milk frother and the steam comes out of the clogged.
- Page 20 If repairs become necessary, see contact information below: U.S. Residents: Please contact our toll free hotline at 1-800-322-3848 or log onto our website at www.delonghi.com. For all accessories, spare parts or replacement parts, please contact our parts division at 1-800-865- 6330.
