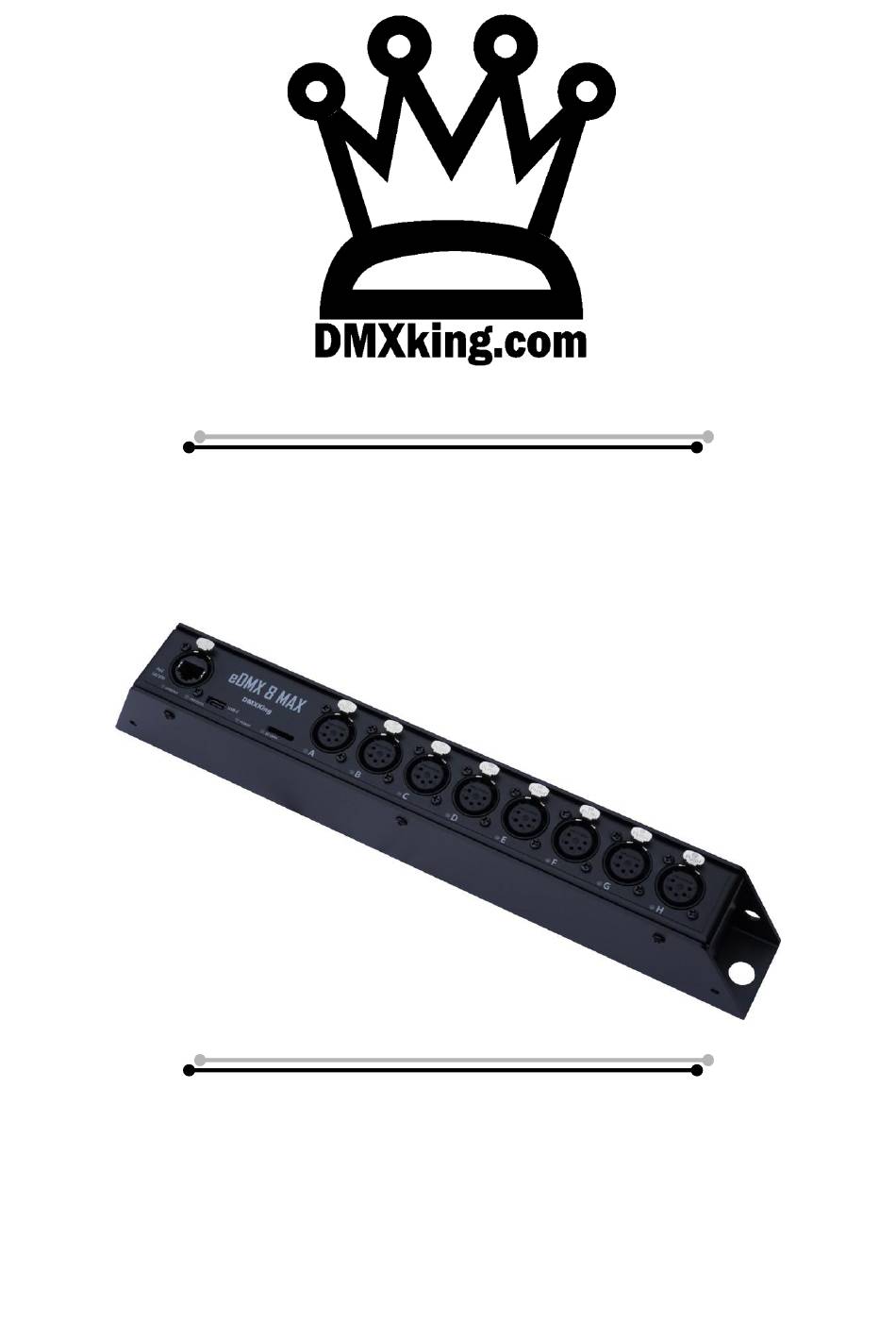

- Page 1 MAX USER MANUAL DMXking.com • JPK Systems Limited • New Zealand 0139-700-4.8...
- Page 2 USB DMX Serial Number ................................. 4 Default Configuration ................................. 5 Configuration Utility ................................... 6 Technical Specifications ................................7 Warranty ....................................7 DMXking Hardware Limited Warranty ............................7 Acknowledgements ..................................8 Declarations ....................................8 DMXking.com • JPK Systems Limited • New Zealand 0139-700-4.8...
- Page 3 1. INTRODUCTION Thanks for purchasing a DMXking product. Our aim is to bring you high quality products with great features we know you’ll appreciate. DMXking MAX series devices are Art-Net and sACN/E1.31 protocol compatible designed for use with computer based show control software or expansion of lighting console outputs. There are many free and commercial software packages available.
- Page 4 Supported operating systems: Windows, MacOS, Linux, iOS, Android − eDMX8 MAX – 8x DMX512 OUT or DMX512 IN with Art-Net, sACN E1.31 and E1.20 RDM support − Art-Net broadcast, Art-Net II,3 & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support −...
- Page 5 DMX512 Port D TX/RX activity Port E DMX512 Port E TX/RX activity Port F DMX512 Port F TX/RX activity Port G DMX512 Port G TX/RX activity Port H DMX512 Port H TX/RX activity DMXking.com • JPK Systems Limited • New Zealand 0139-700-4.8...
- Page 6 SOFTWARE COMPATIBILITY Software packages for USB DMX use either a Virtual COM Port (VCP) driver or FTDI specific D2XX driver. DMXking MAX series uses VCP which is more universal than FTDI D2XX, especially across different operating systems, however this has created some compatibility issues with existing software packages using the later.
- Page 7 4. DEFAULT CONFIGURATION All eDMX8 MAX units ship with default IP address settings. Please reconfigure network settings as required before use. Parameter Default Setting IP Address 192.168.0.112 Subnet Mask 255.255.255.0 Default Gateway 192.168.0.254 IGMPv2 Unsolicited Unchecked Report Network Mode Static IP address DMX512 Port configuration parameter defaults.
- Page 8 5. CONFIGURATION UTILITY Download eDMX MAX Configuration Utility from https://dmxking.com/downloads-list User manual for the utility https://dmxking.com/downloads/eDMX MAX Configuration Utility User Manual (EN).pdf DMXking.com • JPK Systems Limited • New Zealand 0139-700-4.8...
- Page 9 This warranty covers any defects in materials or workmanship with the exceptions stated below. How long coverage lasts This warranty runs for two years from the date of shipment from an authorized DMXking distributor. What is not covered Failure due to operator error or incorrect application of product.
- Page 10 8. ACKNOWLEDGEMENTS Art-Net™ Designed by and Copyright Artistic Licence 9. DECLARATIONS The eDMX8 MAX has been tested against applicable standards and certified compliant as below. Standard IEC 62368-1 Audio/Video and ICTE Safety Requirements IEC 55032 Radiated Emissions IEC 55035 EMC Immunity Requirements...
