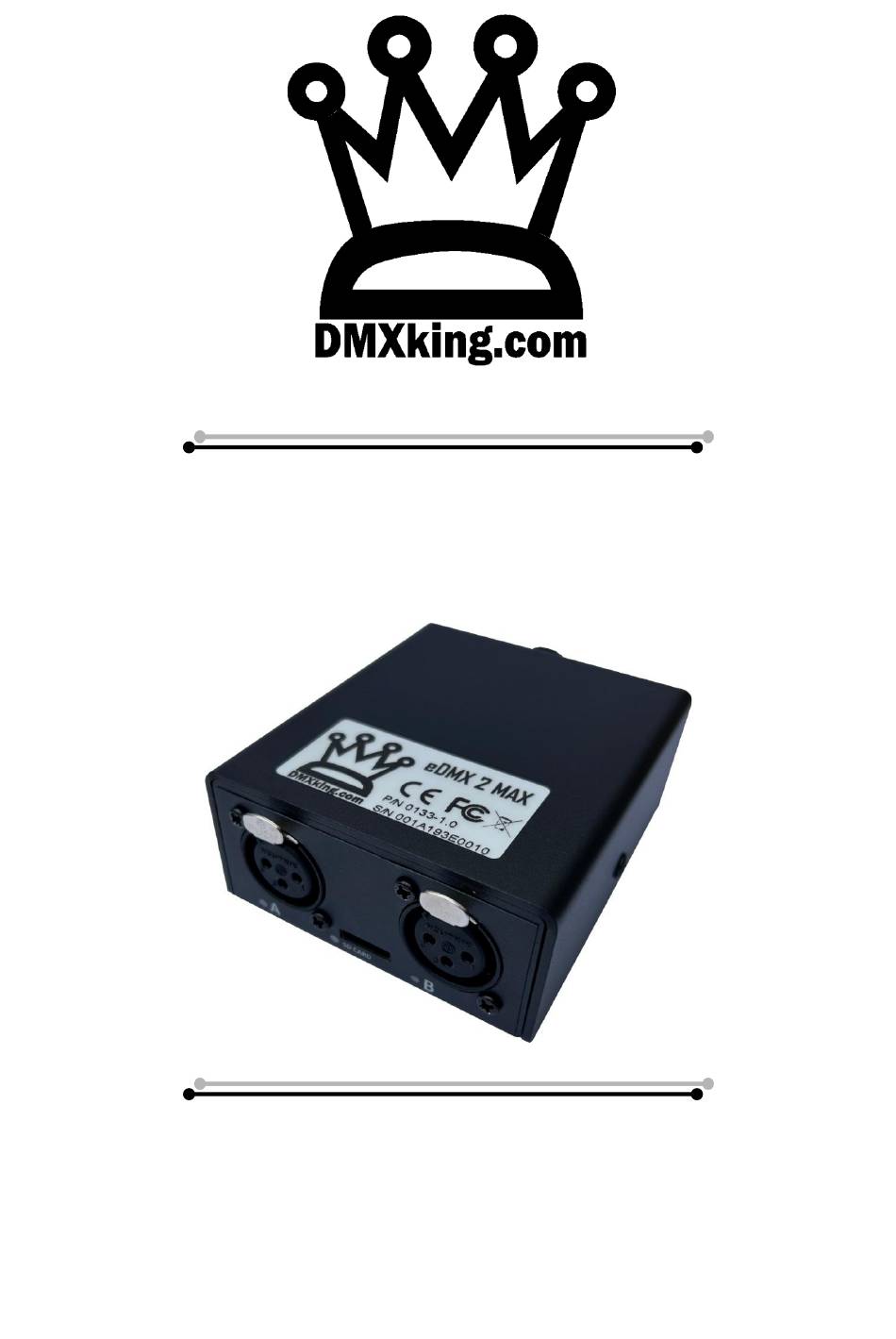

- Page 1 MAX USER MANUAL DMXking.com • JPK Systems Limited • New Zealand 0133-700-4.5...
-
Page 2: Table Of Contents
DMX port mapping ..................................5 USB DMX Serial Number ................................. 5 Default Configuration ................................. 6 Configuration Utility ................................... 7 Technical Specifications ................................8 Warranty ....................................8 DMXking Hardware Limited Warranty ............................8 DMXking.com • JPK Systems Limited • New Zealand 0133-700-4.5... -
Page 3: Introduction
1. INTRODUCTION Thanks for purchasing a DMXking product. Our aim is to bring you high quality products with great features we know you’ll appreciate. DMXking MAX series devices are Art-Net and sACN/E1.31 protocol compatible designed for use with computer based show control software or expansion of lighting console outputs. There are many free and commercial software packages available. -
Page 4: Main Features
Supported operating systems: Windows, MacOS, Linux, iOS, Android − eDMX2 MAX - 2x DMX512 OUT or DMX512 IN with Art-Net, sACN E1.31 and E1.20 RDM support − Art-Net broadcast, Art-Net II,3 & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support −... -
Page 5: Exterior View
REAR VIEW Power over Ethernet 802.3af / network 10/100Mbps RJ45 Ethercon socket. USB-C socket for DC power input alternative to PoE. 10way IDC socket for I/O triggering. See eDMX MAX Recorder Manual. DMXking.com • JPK Systems Limited • New Zealand 0133-700-4.5... -
Page 6: Status Led Table
Network activity. Green = Link, Flash = Traffic Power Incoming power good SD Card SD card activity Port A DMX512 Port A TX/RX activity Port B DMX512 Port B TX/RX activity DMXking.com • JPK Systems Limited • New Zealand 0133-700-4.5... -
Page 7: Usb Dmx Operation
SOFTWARE COMPATIBILITY Software packages for USB DMX use either a Virtual COM Port (VCP) driver or FTDI specific D2XX driver. DMXking MAX series uses VCP which is more universal than FTDI D2XX, especially across different operating systems, however this has created some compatibility issues with existing software packages using the later. -
Page 8: Default Configuration
Recall DMX Snapshot at startup Unchecked DMX512 Universe 1-4 [Net 00, Subnet 0, Universe 0-3] Note: sACN Universe 1 = Art-Net 00:0:0 *Global threshold for all DMX-IN ports, configured only in Port A settings tab. DMXking.com • JPK Systems Limited • New Zealand 0133-700-4.5... -
Page 9: Configuration Utility
5. CONFIGURATION UTILITY Download eDMX MAX Configuration Utility from https://dmxking.com/downloads-list User manual for the utility https://dmxking.com/downloads/eDMX MAX Configuration Utility User Manual (EN).pdf DMXking.com • JPK Systems Limited • New Zealand 0133-700-4.5... -
Page 10: Technical Specifications
This warranty covers any defects in materials or workmanship with the exceptions stated below. How long coverage lasts This warranty runs for two years from the date of shipment from an authorized DMXking distributor. What is not covered Failure due to operator error or incorrect application of product.
