Summary of Contents for OSD Audio ECLIPSE12 SUB

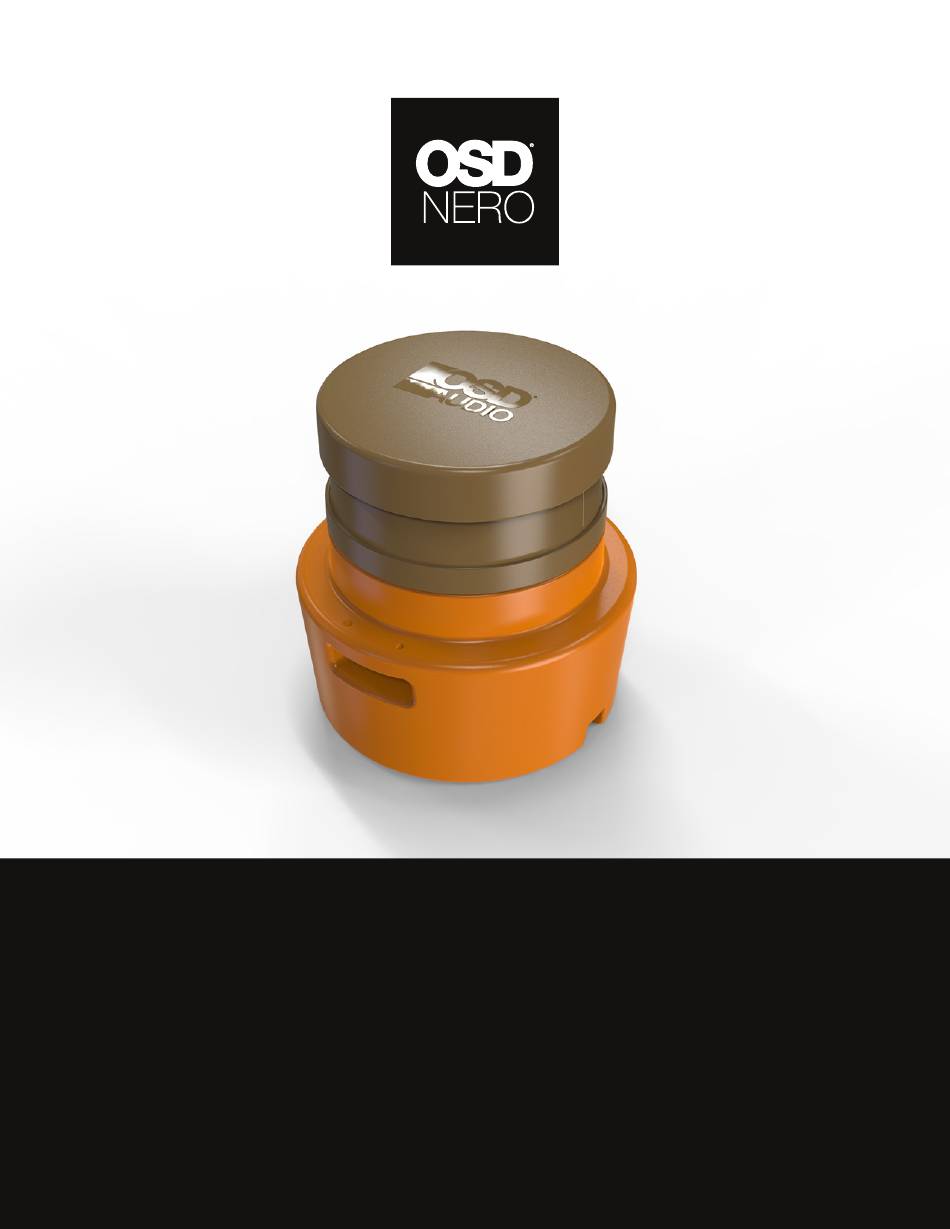

- Page 1 ECLIPSE12 SUB OWNER’S MANUAL...
- Page 2 Experience the OSD Nero Eclipse series, where inviting LED lighting blends with rich, clear audio. Featuring the Eclipse12 Sub & Eclipse25 Bollard for enchanting outdoor environments, the versatile Eclipse25 WM Surface Wall Mount, Eclipse25 WM UD Surface Wall Mount with up-down LED, or the sleek Eclipse25 WMS Slim Surface Wall Mount Speaker, each crafted to enhance any space with their harmonious design and pleasing sound.
- Page 3 MODEL DESCRIPTION Eclipse12 SUB 70V 12” 70V/4Ω Subwoofer Speaker w/LED Light • Omni Directional • 12” Woofer • 4-Ohm Power: 400Watts RMS • 70V/100V Tap: 200Watt audio • Frequency Response: 30-120Hz • Sensitivity: 89dB • Light Power: 13W (DC12V LED Light Belt) •...
- Page 4 INSTALLATION What Gauge Wire for Landscape Lighting and Sound? There are a couple different options here when it comes to landscape wiring. Luckily, we have some of the most popular choices (White or Black Jacket Option) in stock to help you. The most popular gauge sizes are 12/2 AWG landscape wire, 14/2 AWG landscape wire, and 16/2 AWG.
- Page 5 Speaker lead. These other six wires pertain to the multiple Audio Connection Options (4-ohm/70V). The wire leads come from the bottom of the Eclipse12 Sub. So, the Black and Red wire lead goes to the 12 Volt Transformer for the LED, and the six wire lead connects to the Audio Power/Source.
- Page 6 INSTALLATION Eclipse12 Sub 70V Connection W/12V Light Connect the Red (70V+) and Black(-) wires to 70V AMP(+) and Com(-) Connections Connect Red(+) and Black wires from the separate 12V lead to 12Volt Transformer(+/-) Output for the Light. Connect the Green(+) and White (-) to an additional Eclipse12.
- Page 7 INSTALLATION Eclipse12 Sub 70V 4-Ohm Connection W/12V Light Connect the Yellow(+) and Blue(-) wires to 4-Ohm Capable Amp Single Channel(+/-) Output Connect Red(+) and Black wires to 12Volt Transformer(+/-) Output for the Light. 70V leads are not used in this application.
- Page 8 INSTALLATION Eclipse12 Sub Connection W/12V Light Connect the Red(+) and Black(-) wires to 4-Ohm Capable Amp Single Channel(+/-) Output Connect Red(+) and Black wires to 12Volt Transformer(+/-) Output for the Light. 12V Transformer For Lights Amplifier SUBWOOFER OUTPUT REAR OUTPUT 4Ω...
- Page 9 For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD AUDIO. The unit must be returned to OSD AUDIO at the owner’s expense and with prior written permission.
- Page 10 OSD Audio | Brea, CA. | osdaudio.com...
