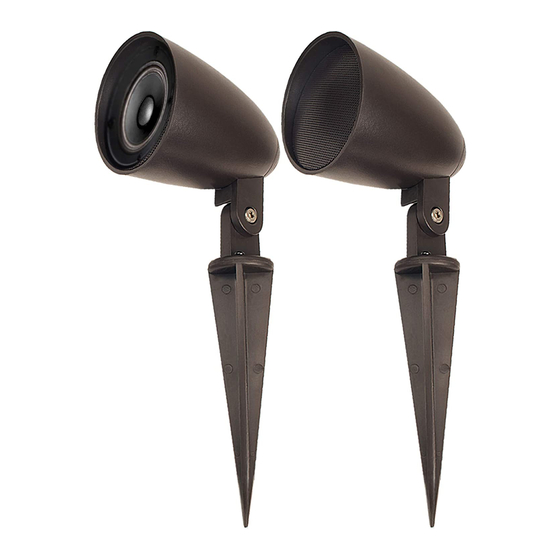

In-door/out-door speaker
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
LS2

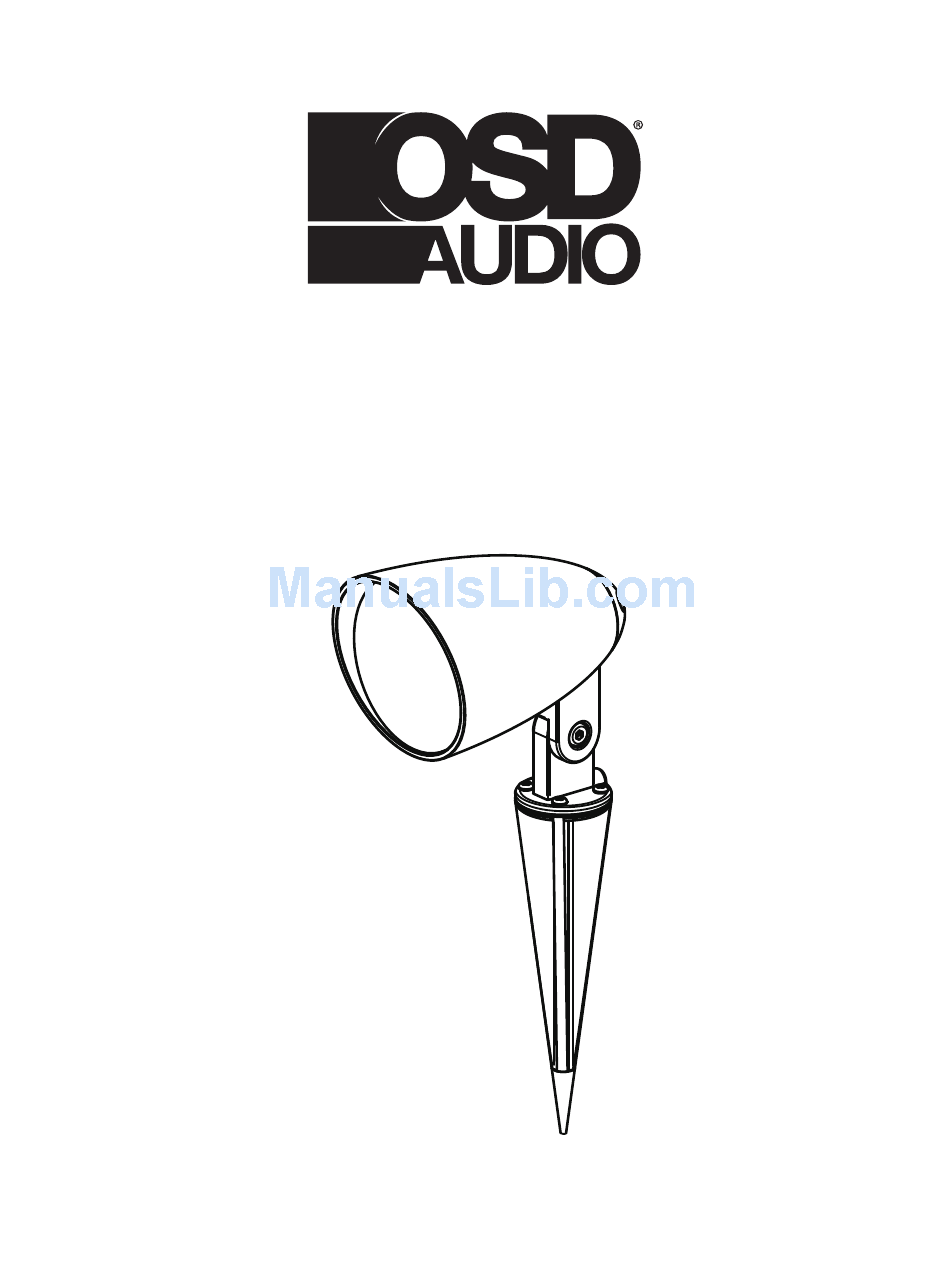

IN-DOOR/OUT-DOOR SPEAKER
INSTALL GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OSD Audio LS2

Summary of Contents for OSD Audio LS2

  • Page 1 IN-DOOR/OUT-DOOR SPEAKER INSTALL GUIDE...

  • Page 2: Tools Needed

    LS 2 INSTALL GUIDE Tools Needed Parts List - Drill - Hammer/Mallet - Knife - Phillips Screwdriver - Wire Cutter - Measuring Tape - Volume Control (Optional) - Silicon Cable Connectors (Optional) - Speaker Wire/ Direct Burial Wire 18 AWG minimum - for distances up to ….…………………… 10 ft 16 AWG - from …………………………………………….
  • Page 3 LS 2 INSTALL GUIDE On-Ceiling Placement 15’ - 20’ Designate the general listening area where the speakers would be most ideal. The speakers should face the listening area and be placed with in 20 feet of the general listening area for optimum performance. Use this method for both Listening Area Center Reference indoor and outdoor applications.
  • Page 4 LS 2 INSTALL GUIDE System Diagrams For optimum performance & sound quality we recommend combining the LS2 with our GLS8 In-Ground Subwoofer. Create an unobtrusive stealthy outdoor sound system with the following system diagrams. Additional system configurations can be created for up to 8 pairs of speakers using multichannel amplifiers and or series parallel wiring using the following System Diagrams.
  • Page 5 LS 2 INSTALL GUIDE System Diagrams Diagram 5 shows 4 pair wired in series parallel on a 2 channel amp with a Subwoofer SMP250 MONO AMP XMP100 AMPLIFIER GLS8 SUBWOOFER LEFT Channel RIGHT Channel Negative Negative Positive Positive Diagram 5...
  • Page 6 LS 2 INSTALL GUIDE System Diagrams Diagram 6 shows 8 pair wired in series parallel on a High Power (OSD AMP200) 2 channel amp with a Subwoofer AMP200 AMPLIFIER SMP250 MONO AMP GLS8 SUBWOOFER LEFT Channel RIGHT Channel Negative Negative Positive Positive Negative...
  • Page 7 LS 2 INSTALL GUIDE System Diagrams Diagram 7 shows 8 pair wired to a High Power (OSD AMP200) 2 channel amp with the addition of a OSD TSM8 Speaker Selector. Adding a speaker selector will allow turn specific areas or zones on or off depending on your needs. AMP200 AMPLIFIER SMP250 MONO AMP TSM8 SPKR SELECTOR...

  • Page 8: Specifications

    All OSD AUDIO outdoor speakers have (1) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany all claims. During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge for either parts or labor OSD AUDIO may replace returned speakers with a product of equal value and performance.
