KX022ACR-EVK-001 Manual
KX022ACR-EVK-001 is an evaluation board for KX022ACR-Z accelerometer. This User's Guide shows the board reference information.
KX022ACR-Z is mounted on U1. 14 pin MIL connector is mounted on J1.
J1 Connector Pin Assignment
*1: Connect to GND when not using external trigger option. 10 pin is pulled down with R6.
*2: 9 pin is pulled up with R5. I2C address is 1F.
Kionix
TM
is a trademark or a registered trademark of ROHM Co., Ltd.
© 2024 ROHM Co., Ltd.
TOP

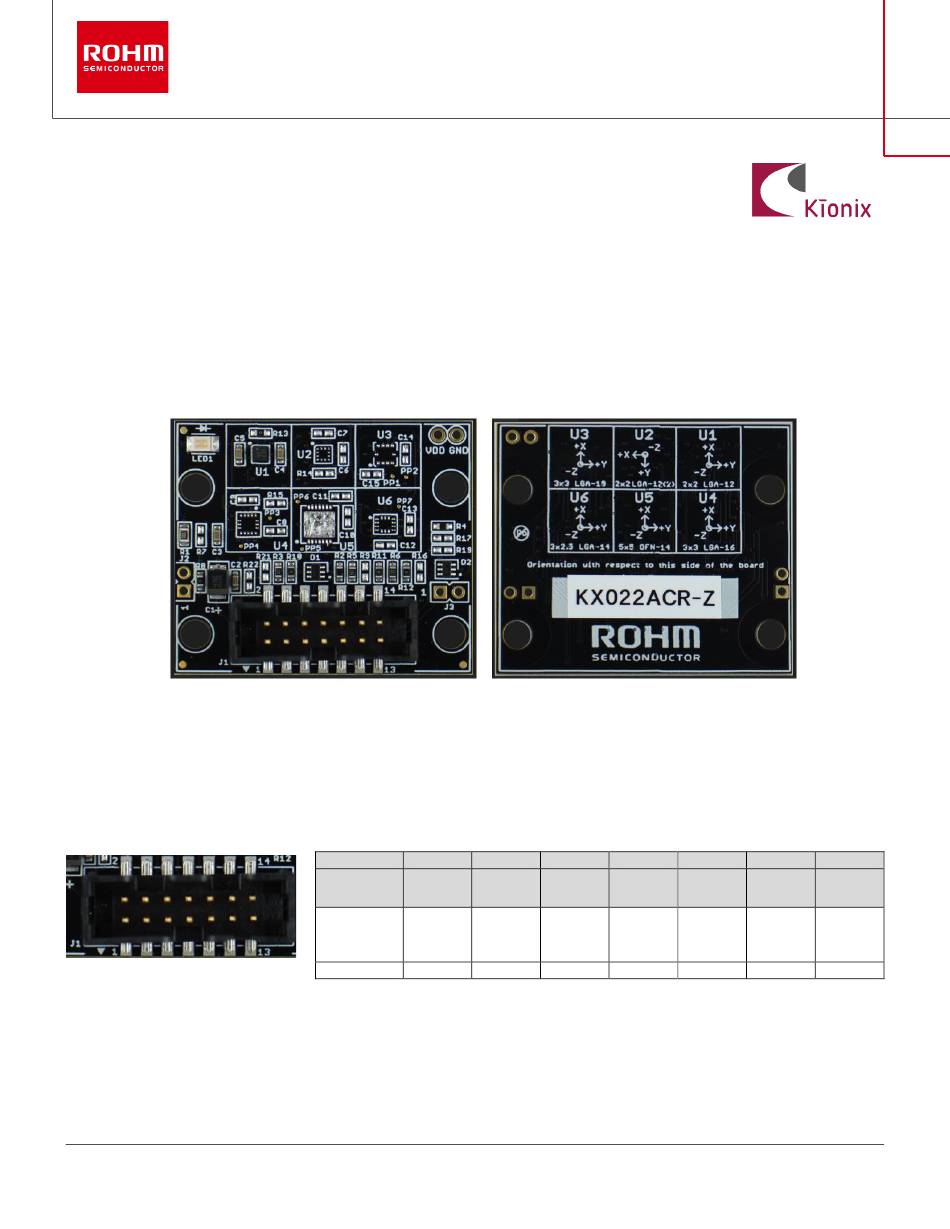

Figure 1: KX022ACR-EVK-001 Photo
Pin No.
2
Function
nCS
Function
VDD
Pin No.
1
Figure 2: J1 Connector Pin Assignment
1/3
User's Guide
BOTTOM
4
6
8
-
IO_VDD
GND
SCLK
SDI
-
/SCL
/SDA
3
5
7
10
12
14
*1
TRIG
INT2
-
SDO
INT1
-
/ADDR
*2
9
11
13
No. 67UG077E Rev.001
Sep.2024
