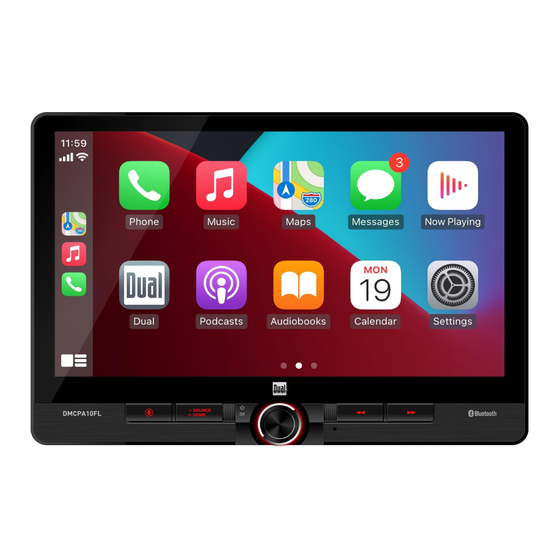

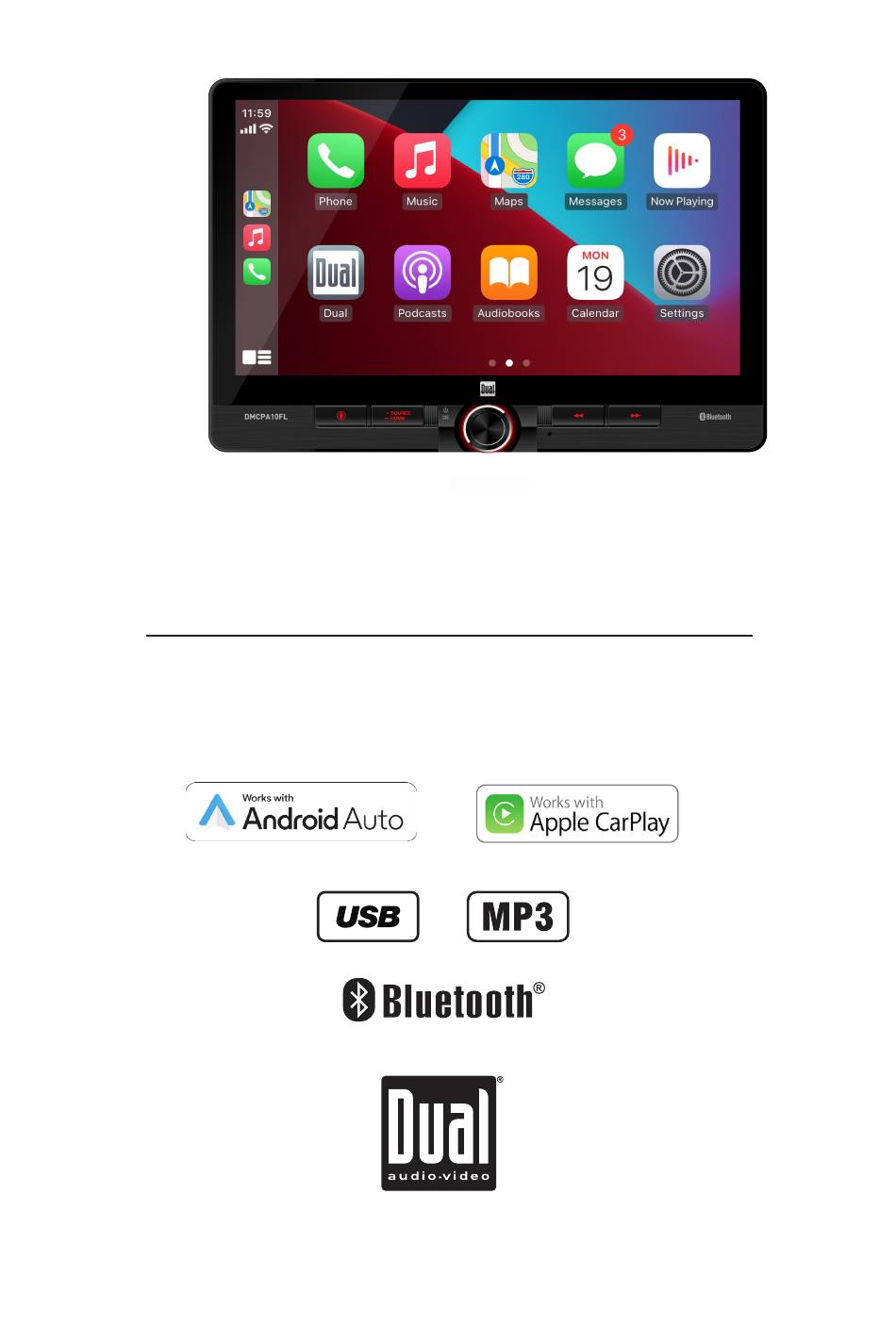

- Page 1 DMCPA10FL INSTALLATION/OWNER’S MANUAL Media Receiver with Android Auto™ and Apple CarPlay ® featuring a 10.1" digital TFT Display...
- Page 2 • Use only the provided hardware and wire harness. • If you experience problems during installation, consult your nearest DUAL dealer. • If the unit malfunctions, reset the unit as described. If the problem still persists, consult your nearest DUAL dealer or call technical assistance @ 1-866-382-5476.
- Page 3 DMCPA10FL Table of Contents Page Warning Statement ..........
- Page 4 DMCPA10FL WARNING Upon installation of this monitor/media player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons...
- Page 5 DMCPA10FL FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 6 DMCPA10FL Preparation Preparing for Installation Installation Package Contents Before You Begin 1.Main Unit 6.Trim Ring Before You Begin 2.Mounting Sleeve for 1 DIN 7.Wiring Harness • Consult a qualified technician for instructions. We always recommend professional installation. 3.Release Keys 8.Microphone •...
- Page 7 DMCPA10FL Screen Rotation...
- Page 8 DMCPA10FL Note: For CarPlay and Android Auto only Note: For CarPlay and Android Auto only Car P lay and Android Auto Car P lay and Android Auto 20P IN 18P IN 20P IN 18P IN Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage.
- Page 9 DMCPA10FL Control Locations DMCPA10FL The radio display features the following functions and displays: Voice Activation Button Source/Home Power/Volume/Mute Reset Previous Button Next Button...
- Page 10 DMCPA10FL General Operation Power On/Off Momentarily press to turn the unit on. Press and hold to turn the unit off. Volume Rotate the volume knob to increase or decrease the volume level. Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE again to return to the previously selected volume.
- Page 11 DMCPA10FL General Operation From the Main Menu screen, select Setup to access the Settings menu and select from eight categories represented by the icons on the left of the screen: General, Audio, Display, Wifi, Bluetooth, Camera, Region and Version. Select the category, and adjust any of the available options using the touch screen.
- Page 12 DMCPA10FL Audio Operation From the Settings screen, press the Equalizer icon (see #3 in On Screen Audio Adjustment Controls) to adjust Equalizer, (10-Band Tone Control and 7 Presets EQ Menus Settings), Surround Sound and Fader / Balance controls, On Screen Controls...
- Page 13 DMCPA10FL AM/FM Tuner Operation From the main menu, touch Radio Icon to select AM/FM tuner Radio Operation mode. Main Menu Press icon to return to Main Menu screen. Display status of various tuning functions including Auto. Current Mode Indicator Press to step through three FM and two AM bands.
- Page 14 DMCPA10FL USB Operation From the main menu, touch the USB icon on the main screen. Press icon to return to Main Menu screen. Main Menu Displays source currently playing. Current Mode Indicator Displays the current file number. File Number Press...
- Page 15 DMCPA10FL Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3/.flac/ogg File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz...
- Page 16 DMCPA10FL Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • AAC, protected AAC, M4A format Playback Order MP3 playback sequence begins in the root folder of the USB device. Any empty folders or folders that do not include MP3 files are skipped.
- Page 17 Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "DMCPA10FL". The unit can be in any mode of operation when pairing is performed.
- Page 18 DMCPA10FL Bluetooth Operation End Call Press to end a call in progress or reject an incoming call. Devices Press to show the pairing device list. To connect to a previously connected device. press the current device name. Any previously connected devices that are in rang will be listed by their device name.
- Page 19 DMCPA10FL Driving Orientation Settings To enhance the driving experience, the DMCPA10FL allows the user to configure Apple CarPlay and Android Auto for either Left Hand Drive (LHD) or Right Hand Drive (RHD) vehicles. To select desired configuration, select either LHD or RHD from the Settings menu.
- Page 20 DMCPA10FL Apple CarPlay Operation ® Apple CarPlay is a smart interface for iPhone, allowing you to voice-control (via Siri) music, navigation, phone and messaging apps - significantly reducing driver distraction. Phone - Use Siri to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen.
- Page 21 DMCPA10FL Apple CarPlay Operation ® When the Apple CarPlay menu is displayed, the home button in the lower left corner work just like the home button on your iPhone. Press and hold it to summon Siri and begin your voice commands.
- Page 22 DMCPA10FL Android Auto™ Operation Android Auto brings the most useful apps to your phone screen or your compatible car display, in a format that makes it easy for you to keep your main focus on driving. You can control things like navigation and maps, calls and text messages, and music.
- Page 23 DMCPA10FL Android Auto™ Operation Using Android Auto The Android Auto home screen displays personalized information, like time to your destination, reminders, recent calls incoming messages, the song you're listening to, and Google Now cards. When the Android Auto menu is displayed, you can say "OK Google" or select the microphone in the upper right corner to talk to Google.
- Page 24 DMCPA10FL Rear RCA Input Connect an optional audio/video source into the RCA (rear) input. A/V IN Adjust volume on the external audio source as needed (if connected to the headphone output of the device). Front and Rear Camera Operation - (Optional) Using the Cameras Connect an optional camera to the front or rear Camera Input.
- Page 25 3. Seek/Track Up (+) 6. Volume Up (+) 9. BT Talk Note: Not all OE steering wheel functions may be supported by the DMCPA10FL. PAC SWI-RC Installation Hints 1. Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Other/Sony".
- Page 26 Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Dealer Name...
- Page 27 DMCPA10FL Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Rear USB Compatibility: High Speed USB 2.0...
- Page 28 Dual dealer and used in the U.S.A. • Call us toll-free at 1-866-382-5476 • E-mail us at cs@dualav.com...
- Page 29 DMCPA10FL Notes...
- Page 30 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2024 Dual Electronics Corp. All rights reserved. NSC1124-V01...
