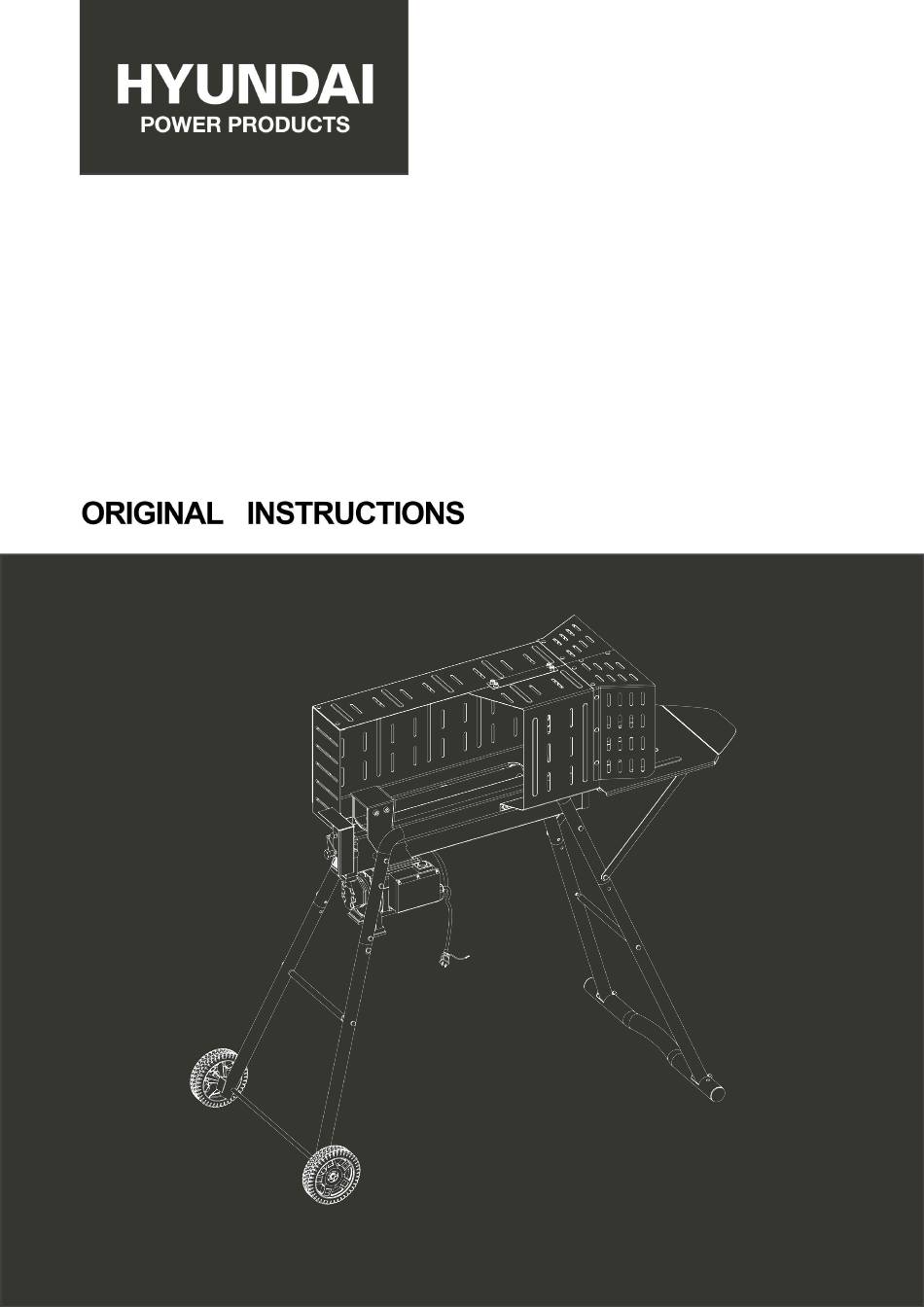

- Page 1 ELECTRIC LOGSPLITTER HFBE725TS WARNING: Read thoroughly the instruction manual before use...
-
Page 2: Description Of The Symbols
DESCRIPTION OF THE SYMBOLS WARNING! Standard graphic symbols are used on all machines in order to ensure complete safety of all parts of the log splitter. As these symbols are very important, read the information below attentively. Conforms to relevant safety standards It is obligatory to read the machine’s use and maintenance manual in full before using the machine. - Page 3 Warning: always pay attention to the movement of the log pusher. Keep hands out of the way of all moving parts. “Danger! Keep clear of moving parts!” The log splitter must be always operated by one person only. Other people should keep a safe distance from the work area, especially when the log splitter is under operations.
-
Page 4: Safety Warnings
Remove plug from mains before maintenance or if cord is damaged Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling center and disposed of in an environmentally safe way. Danger! Keep clear of moving parts! To be operated by one person only! The log splitter must be used horizontally, can’t be used vertically. - Page 5 be cut off flush with the trunk. 6. Never try to split logs larger than those indicated in the technical specifications. This could be dangerous and may damage the machine. 7. Break wood in the direction of the grain, do not place wood across the log splitter and leave it in that position for splitting;...
- Page 6 disconnect the power cable when not in use, when carrying out maintenance work, when changing attachment or moving the machine. 24. Before starting work, hydraulic pipes and hoses shall be inspected and the stopping devices shall be tested. 25. Stop the machine before cleaning or making adjustments. 26.
-
Page 7: Intended Use
This log splitter is only intended to be used to split logs! Serious injury may occur if this log splitter is used for any other purpose. TECHNICAL SPECIFICATIONS Model HFBE725TS Voltage: 230V~ 50Hz Power consumption 2300W S3 50% (5min on/5min off) - Page 8 UNPACKING WARNING! To prevent accidental starting that could cause possible serious personal injury, assemble all parts to your log splitter before connecting it to power supply. Log splitter should never be connected to power supply when you are assembling parts, making adjustment. Carefully remove all pieces from the carton.
- Page 9 FEATURES 1. Before attempting to use, familiarize yourself with all the operating features and safety requirements of your log splitter. 1. Blade 2. Oil tank 3. Hydraulic control lever 4. Rolling wheel 5. Push button switch 6. Log pusher 7. Safety guard for hydraulic control lever 8.
- Page 10 3. Recommended oils We recommend use of the following oils for the hydraulic cylinder. SHELL TELLUS T22 ARAL VITAM GF22 SP ENERGOL HCP22 MOBILE DTE 11 OR equivalent DO NOT USE OTHER GRADE OILS 4. Application conditions This log splitter is a home use model. It is designed for operating under ambient temperature between +5 C and 40 C and use at altitudes no more than 1000mm.
- Page 11 b) Connect horizontal shaft (9a) to front stand(10a&10b) with screws, then assemble horizontal leg(8) and fix it to front stand(10a&10b) by bolts (fig.3). fig.3 c) Connect back stand (13c) to connection pipe (c) and connect back stand (13d) to connection pipe (d) by bolts and nuts (fig.4). fig.4 d) Connect horizontal shaft (9b) to back stand (13c&13d) with bolts, assemble the wheel shaft (11) and wheels with four spring washers, the last fit wheel covers...
- Page 12 fig.5 Installation of the machine ④left cover ①stock support plate ②protection guard 1pcs ③back cover ⑤connection plate ⑥right cover ⑦ fixed ⑧ Inner hexagon bolt M8 ⑨ Square neck bolt M8 ⑩ Inner hexagon bolt M8...
-
Page 13: Operation
1) Install the support plate (1) on the machine by hooking the hooks under the supports provided for this purpose. 2) Install the work plates on both sides of the machine, align the holes, put the seals and screws to secure the parts. - Page 14 compressed after being decompressed, such continuous air compression and decompression will blow out the seals of the hydraulic system and cause permanent damage to the log splitter. Fig.6 DO NOT ADJUST THE MAX PRESSURE LIMITING SCREW (16) IN FIG. 7! Max pressure was set before the log splitter ex work and the max pressure limiting screw is tightened to ensure the log splitter works under pressure no more than...
- Page 15 This log splitter is equipped with control system that requires to be operated by both hands of the user – left hand controls the hydraulic control lever (3) while right hand controls the push button switch (5) as shown in Fig. 8. The log splitter will freeze upon absence of either hand.
- Page 16 Fig. 9 Break log in the direction of its grown grain. Do not place log across the log splitter for splitting. This may be dangerous and may seriously damage the machine. Do not attempt to split 2 pieces of logs at the same time. One of them may fly up and hit you.
-
Page 17: Maintenance
Fig.11 MAINTENANCE Replacing hydraulic oil (fig.12) Replace the hydraulic oil in the log splitter after every 150 hours of use. Take following steps to replace it. 1. Make sure all moving parts stops and the log splitter is unplugged. 2. Unscrew oil drain bolt with dipstick to remove it. - Page 18 fig.12 Periodically check oil level to ensure it is between 2 grooves around the dipstick. Upon lower oil level, oil refilling is required. Warning: Never mix oil with general waste! Used oil must be disposed of according to current regulations in the country where the machine is used.
-
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Motor stops Overload protection device Let motor cool down, and starting disengaged to protect the log push the button of the splitter from being damaged overload protection device to re-start the motor Log is improperly positioned Refer to “Log splitter operation”... - Page 20 DISPOSAL Do not dispose of power tools into household waste! According the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
-
Page 21: Declaration Of Conformity
Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 Declare that this machine: ELECTRIC LOGSPLITTER Model: HFBE725TS Serial number: 20221233051-20221233090 Is in conformity with the Directive 2006/42/EC and the regulations transposing it; Also in conformity with the following Directives: RoHS Directive (EU)2015/863 amending 2011/65/EU... -
Page 22: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 23: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 24: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
