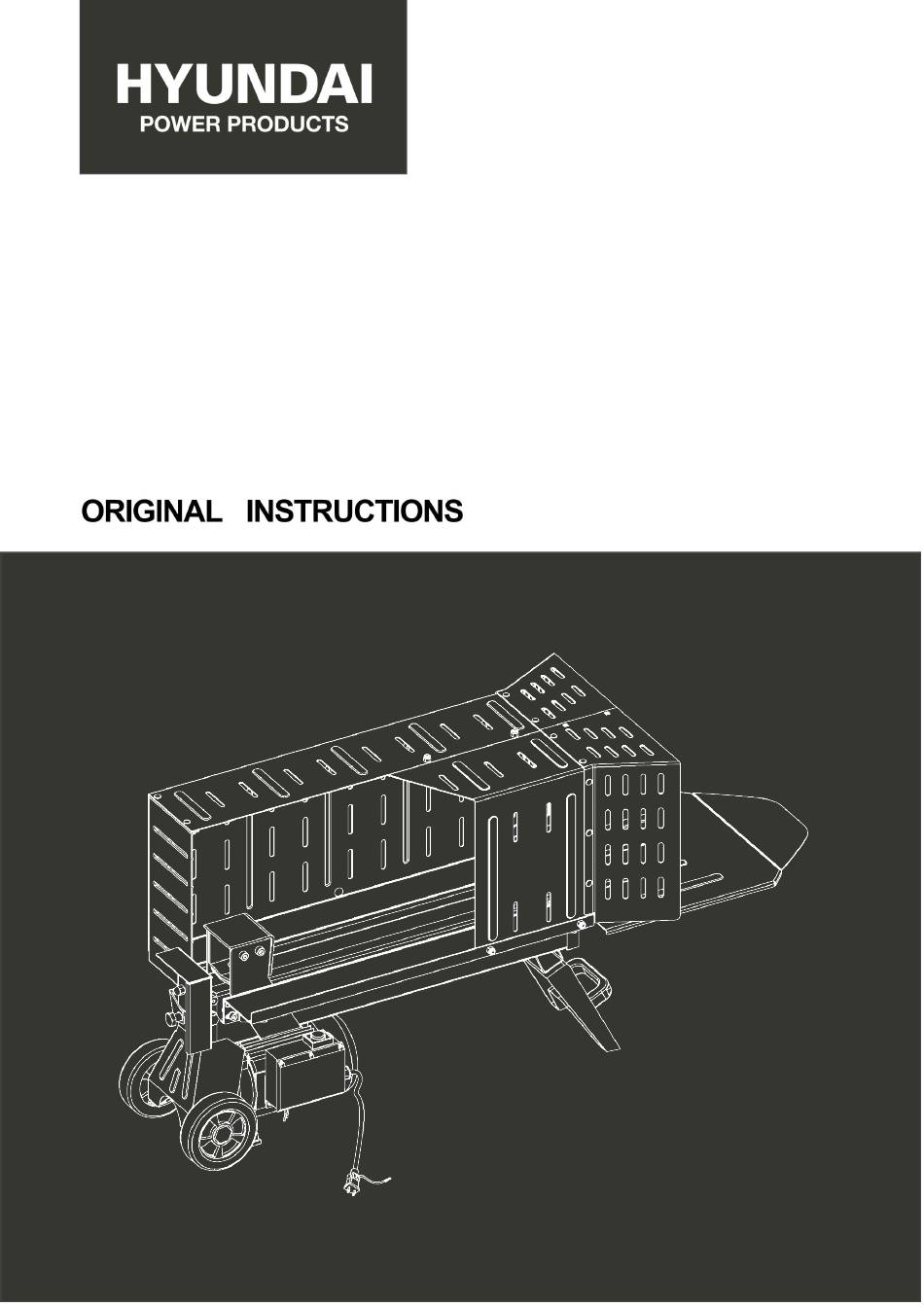

- Page 1 ELECTRIC LOG SPLITTER HFBE525T WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Safety Warnings And Cautions
SAFETY WARNINGS & CAUTIONS SYMBOL AFFIXED TO THE SAFETY WARNINGS & INSTRUCTIONS MACHINE UNDERSTAND YOUR LOG SPLITTER Read and understand the owner’s manual and labels affixed to the log splitter. Learn its application and limitations as well as the specific potential hazards peculiar to it. -
Page 3: Extension Cords
close to the machine, and thus risks being struck by wood chips or debris. EXTENSION CORDS Improper use of extension cords may cause inefficient operation of the log splitter which can result in overheating. Be sure the extension cord is no longer than 10m and its section is no less than 2.5mm to allow sufficient current flow to the motor. - Page 4 PROTECT YOUR HANDS Keep you hands away from splits and cracks which open in the log; They may close suddenly and crush or amputate your hands. Do not remove jammed logs with you hands. DON’T FORCE TOOL It will do a better and safer job at its design rate. Never try to split logs larger than those indicated in the specifications table.
- Page 5 Do not leave the machine unattended when running; Do not reach into the splitting zone; Symbols Wear hearing protection The machine must be operated only by one person Do not smoke Warning: Risk of slipping Warning: Floor-level obstacle Do not take the wood by hand if the wood gets stuck Warning: Electricity.
-
Page 6: Application Conditions
C and 55 This machine must be used and fixed on suitable work table to comply with the height of the control actuators between 850-1650mm from the ground. SPECIFICATIONS Model Number HFBE525T Motor 230V~ 50Hz 1500W S3 50% IP54 Diameter... -
Page 7: Set Up And Preparation For Operation
SET UP AND PREPARATION FOR OPERATION 1. Log Pusher 2. Work Table 3. Shield 4. Support Leg 5. Switch 6. Motor 7. Pushbutton Box 8. Wheels for Minor Moving ONLY. 9. Hydraulic Control Lever. 10. Control Lever Guard 13.Bleed Screw 14.Oil Drain Bolt with Dipstick Installation 1) Install the foot and foot grip under the machine, and secure with screws, seals and... - Page 8 Before operating the log splitter, the Bleed Screw should be loosened by some rotations until air can go in and out of the oil tank smoothly. Air flow thru the Bleed Screw hole should be detectable during the log splitter is under operations.
-
Page 9: Plumbing Diagram
WIRING DIAGRAM PLUMBING DIAGRAM LOG SPLITTER OPERATION... - Page 10 This log splitter is equipped with “ZHB” control system that requires to be operated by both hands of the user – Left hand controls the hydraulic control lever while right hand controls the pushbutton switch. The log splitter will freeze upon absence of either hand. Only after both hands release the controls, the log pusher starts to return backward to the starting position.
-
Page 11: Freeing A Jammed Log
Break log in the direction of its growing grain. Do not place log across the log splitter for splitting. It may be dangerous and may seriously damage the machine. Do not attempt to split 2 pieces of logs at the same time. One of them may fly up and hit you. -
Page 12: Sharpening Wedge
MAINTENANCE REPLACING HYDRAULIC OIL Replace the Hydraulic oil in the log splitter after every 150 hours of use. Take following steps to replace it. Make sure all moving parts stops and the log splitter is unplugged. Unscrew Oil Drain Bolt with Dipstick to remove ... -
Page 13: Troubleshooting
TROUBLE SHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Overload Protection Device Contact a qualified Electrician for opening Motor Stops disengaged to protect the log splitter the Pushbutton Box to engage the Overload Start from being damaged Protection Device inside * Refer to “ Log Splitter Operation” section for Log is improperly positioned perfect log loading. -
Page 14: Declaration Of Conformity
ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 Declare that the following machine ELECTRIC LOG SPLITTER HFBE525T Serial number： 20210734670-20210734769 20210736318-20210736417 Is in conformity with the Directive Machine 2006/42/EC and to the regulations transposing it;... -
Page 15: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 16: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 17: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
