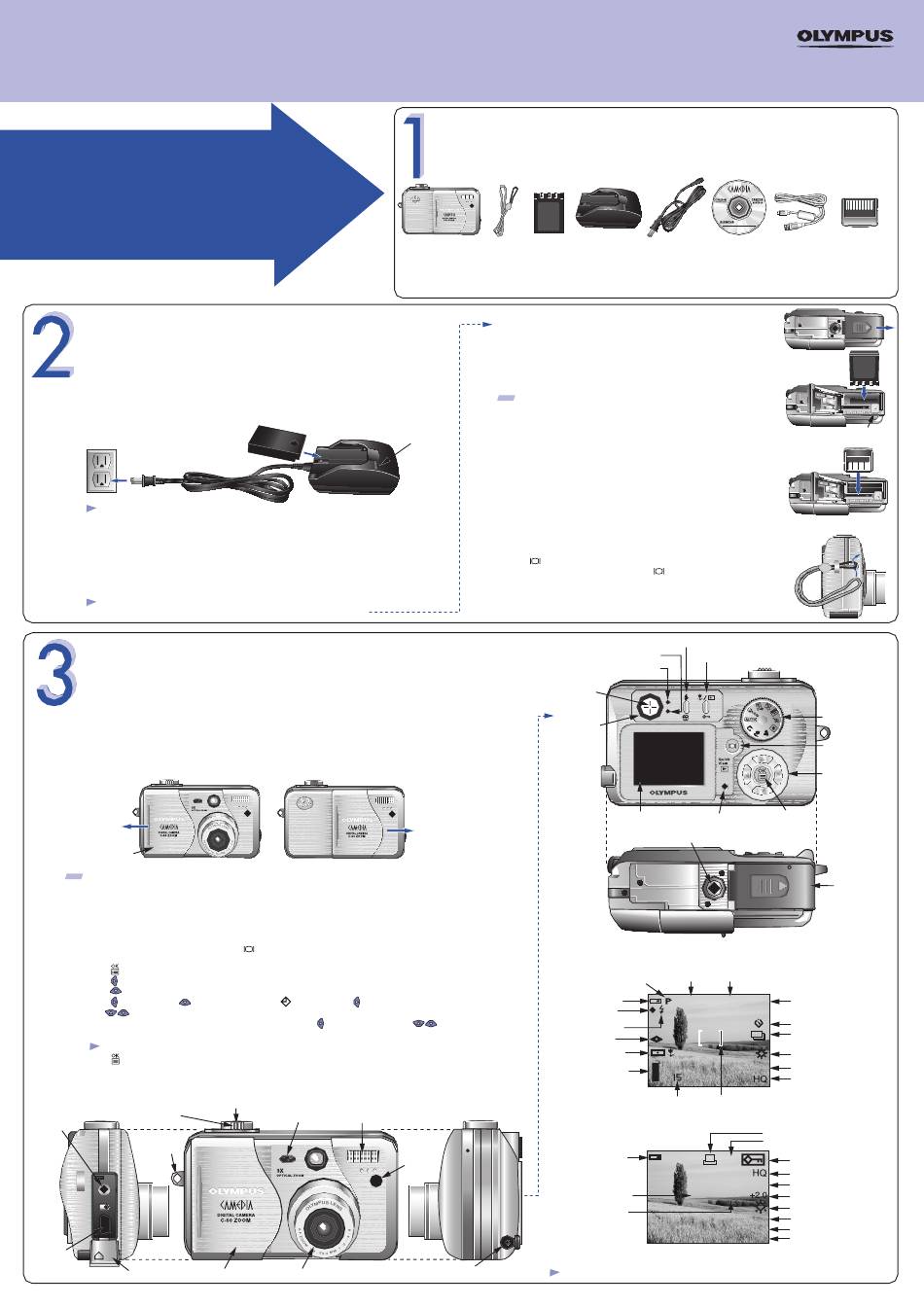

Olympus CAMEDIA C-50 ZOOM Basic Manual

QuickStart Guide
C-50 ZOOM DIGITAL CAMERA
START
It is strongly recommended
that you follow these step-by-
step numbered instructions to
set up and quickly begin
HERE
using your new C-50 Zoom
Digital Camera.
For more detailed instructions on advanced features, please refer
to the printed Basic Manual included in your package, or the
Reference Manual on the CD-ROM.
PREPARE THE CAMERA FOR USE
Before you begin using your Olympus C-50 Zoom Digital Camera...
a.
Charging the battery
The C-50 Zoom uses an Olympus Lithium ion battery (LI-10B) and dedicated charger (LI-10C).
This is the only battery/charger designed for use with the C-50 Zoom. The battery cannot be
charged while in the camera.
Note: The Lithium ion battery is not fully charged when the camera is
purchased. You must fully charge the battery using the charger before first use.
• Insert the Lithium ion battery into the charger as indicated in the illustration.
• Connect the battery charger AC cable as shown to a standard wall outlet.
• To fully charge the battery requires approximately 2 hours. The charge indicator light will
be red when charging, and will turn green when the charging process is complete.
b.
Loading the battery
Note: The C-50 battery and media card compartments are accessed by opening
the same compartment cover.
TURNING ON THE CAMERA
All you need to do is slide the lens barrier open or closed to turn the camera ON or OFF.
a.
Turn the camera ON
(SHOOTING MODE)
• Open the lens barrier fully until it clicks. The lens extends.
• To turn the camera off, slide the lens barrier until you feel the first click. Wait until the lens is fully retracted, then
close the lens barrier all the way.
Power on
Lens barrier
TIP: To maximize battery life, the C-50 Zoom Digital Camera features a power saving mode in which the camera enters a sleep mode
after approximately three (3) minutes of non-use. (Sleep intervals can be changed by the user. See the C-50 Zoom Basic Manual for
instructions.) Press the shutter button to wake up the camera.
b.
Set the Date and Time
(OPTIONAL)
Although this is not required, it is recommended that you set the date and time. This affects the way image
file names are created, and will conveniently include this information with each picture.
• With the front lens barrier closed, press
in the monitor.
• Press to display the menu.
• Press to select MODE MENU.
• Press three times to select SETUP.
• Press once, and then three times to highlight
• Use to select the date format (usually M, D, Y).
• Adjust the date and time in the appropriate fields by using
the proper value. Repeat this step until all date/time fields have been set.
Note: Time is entered using the 24-hour format.
• Press twice to store the date and time and exit the menu.
c.
Camera Diagram and Controls
Now take a moment to familiarize yourself with the key areas of camera controls by reviewing the illustrations.
Zoom lever
VIDEO OUT
jack
Strap
eyelet
USB
connector
Lens barrier
Connector cover
VT453001
Power off
once. The monitor will turn on with "No Picture" displayed
, and then press once.
to select the field, and
Shutter button
Self-timer/
Remote control lamp Flash
Lens
Need more help?
visit http://support.olympusamerica.com
for online automated help
UNPACKING THE BOX CONTENTS
Gather your C-50 Zoom Camera and the parts as shown in the illustration. You'll need these to complete the steps
for the camera set-up procedures that follow.
C-50 Zoom Strap LI-10B lithium
Digital Camera ion battery
The following items are also included in the C-50 Zoom package: Basic Manual, battery charger instructions, video cable,
RM-1 remote control, warranty card, registration card, and safety precautions booklet.
• Slide the battery/card compartment cover in the direction of the
arrow, and lift open the cover as shown in the illustration.
• Insert the battery (note the label inside the battery chamber) into the
compartment. When the battery is fully inserted, the red locking lever
will be engaged.
• Do not close the battery/card compartment cover at this time.
TIP: An optional Olympus D-7AC AC adapter is available, and is recommended when
downloading images to ensure a consistent power supply. See the C-50 Zoom
Basic Manual for more information.
c.
Insert the xD-Picture Card
Charge indicator
The xD-Picture Card is where the camera stores your pictures and is available in a variety
of memory capacities. The pictures you take with the camera remain on the xD-Picture
Card even when the camera is turned off and/or the battery is removed.
• Insert the xD-Picture Card into the spring-loaded card slot as shown
in the illustration. Push the card fully into the slot. The card will lock
into place when fully inserted.
• To remove, push down on the xD-Picture Card. The card will pop up.
Pull to remove.
• Close the battery/card compartment cover and slide it back to lock it into place.
Confirm you have installed the battery and xD-Picture Card properly by
pressing . The "No Picture" message should be displayed in the
monitor. Turn the camera off by pressing
d.
Attach the strap
Attach the strap as illustrated to make the camera easier to handle.
AF target mark
Viewfinder
to set
Spot metering/
Macro mode
Remote
control
receiver
DC-IN jack
Note: Depending on the camera settings, not all indicators will be displayed
LI-10C Battery CAMEDIA
battery charger Master 4.0
CD-ROM
charger AC cable
again.
(OPTIONAL)
Flash mode button/Erase button
Green lamp
Macro/Spot button/Protect button
Orange lamp
Monitor
Card access lamp
Tripod socket
Camera Settings in Shooting Mode as shown in Monitor
Aperture Shutter
Shooting
value speed
mode
Battery check
F2.8 1/800
Green lamp
Flash stand-by
AF
Flash mode
ISO 80
Memory gauge
Number of storable still pictures/ AF target mark
seconds remaining
Camera Settings in Playback Mode as shown in Monitor
Battery check
X10
SIZE: 2560 X 1920
Aperture value F2.8 1/800
Shutter speed
ISO 80
02.06.10 12:30
FILE: 100 0016
Olympus America, Inc.
Two Corporate Center Drive
Melville, NY 11747-3157
USB cable 32 MB
(grey color) xD-Picture Card
Locking lever
Mode dial
Monitor button
(Quick View)
Arrow pad
OK/Menu
button
Battery/Card
compartment
cover
0.0 Exposure compensation/
Exposure variance
Self-timer
Drive mode
White balance
ISO
Record mode
Print reserve
Number of prints
Protect
Record mode
