Thank you for purchasing this ORIGIN21 product.

Questions, problems, missing parts?

Before returning, contact us on:

888-251-1026, 8 a.m. - 8 p.m., EST, Monday-Sunday or ascs@lowes.com.

AS23588

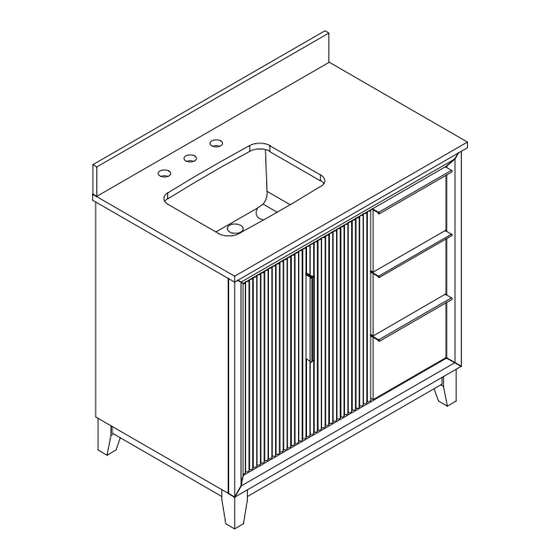

36" FETZER VANITY

ITEM #5501912

MODEL # TJ-0302V3622GR

WITH TOP

Need help?

Do you have a question about the ORIGIN21 TJ-0302V3622GR and is the answer not in the manual?

Questions and answers

Summary of Contents for LF ORIGIN21 TJ-0302V3622GR

Page 1 ITEM #5501912 MODEL # TJ-0302V3622GR 36" FETZER VANITY WITH TOP ORIGIN21 and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved. ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Thank you for purchasing this ORIGIN21 product.
Page 2 TABLE OF CONTENTS Package Contents........................3 Safety Instruction......................3 Preparation.........................4 Assembly Instructions....................4 Care and Maintenance......................13 Troubleshooting....................13 Warranty..........................13 Replacement Parts List......................14...
Page 3 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Vanity Vanity top Backsplash SAFETY INSTRUCTION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING Unpacking requires two adults and several steps are more easily handled with two adults. CAUTION DO NOT try to pry off top from vanity, as damage to top or vanity may occur.
Page 4 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 30-35 minutes (24 hours for silicone caulk to dry). Tools Required for Assembly (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit.
Page 5 ASSEMBLY INSTRUCTIONS 3. Reinstalling the drawers (step 3 -> 4) Fully extend the metal glide tracks. 4. Reinstalling the drawers Gently lower and slide the drawer box into the rear glide catch. Lower the drawer box down to completely rest on extended glides and push plastic levers to lock the drawer box in place.
Page 6 ASSEMBLY INSTRUCTIONS 6. Adjusting door up or down. 7. Retightening screws (a). 8. Adjusting the doors left or right (optional) Turn screws (b) on both hinges...
Page 7 ASSEMBLY INSTRUCTIONS 9. Adjusting the doors in or out (step 9 -> 11) (optional) Loosen screws (c) on both hinges. 10. Adjusting the doors in or out 11. Retightening screws (c)
Page 8 ASSEMBLY INSTRUCTIONS 12. Adjusting the shelves (step 12 -> 15) (optional) Remove the shelf screws securing the shelf to the Shelf supports (4 screws). 13. Removing the shelf from the vanity 14. Inserting the shelf supports into the desired holes Ensure that all the shelf supports are level.
Page 9 ASSEMBLY INSTRUCTIONS 15. Reinstalling the shelves Gently insert the shelf into the vanity Secure it to the Shelf supports using the shelf screws 16. Applying silicon to the Backsplash (step 16 -> 18) Apply silicone to the unpolished back side and bottom of the Backsplash (C).
Page 10 "(34mm) 20. Removing top - reinstalling/replacing top (step 20 ->24) (optional) lf you need to remove the top for any purpose, do so in the following manner: Open the doors and remove the top drawers (Please reference the step 2 on page 4).
Page 11 ASSEMBLY INSTRUCTIONS 21. Removing the top Use a screwdriver (not provided) to unscrew these 10 wood screws (d), and place them face up onto a scratch free surface such as a foam sheet that came in the packaging. Screws for fixing top layout 10 screws Top panel 22.
Page 12 ASSEMBLY INSTRUCTIONS 24. Re-installing the drawers Please reference the step 3 -> 4 on page 5.
Page 13 CARE AND MAINTENANCE Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. You can clean the vanity with a gentle, non-abrasive household cleaner. Make sure to dry the wood immediately with a soft cloth or towel. The stone top can be cleaned using standard marble cleaning agents available at your local supplier.
Page 14 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 888-251-1026, 8 a.m. - 8 p.m., EST, Monday - Sunday. You may also contact us at ascs@lowes.com. PART DESCRIPTION PART# Backsplash TJ-0302V3622-BL Right door TJ-0302V3622-RD Left door TJ-0302V3622-LD Drawer boxes TJ-0302V3622-DB Adjustable shelf...
