LF allen+roth TJ-0207V3622WH Assembly Instructions Manual

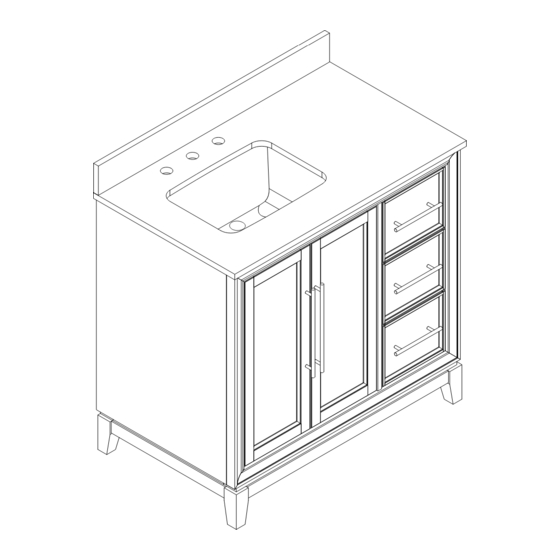

36 single sinkvanity with top
Hide thumbs

Advertisement

Quick Links

Download this manual
ALLEN + ROTH and logo design are
trademarks or registered trademarks of LF,
LLC. All rights reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Thank you for purchasing this ALLEN + ROTH product.
Questions, problems, missing parts?
Before returning, contact us on:
866-439-9800, 8 a.m. - 8 p.m., EST, Monday-Sunday or ascs@lowes.com.
XXXXXXX
36" SINGLE SINK
VANITY WITH TOP
1
I TEM #5980220
MODEL # TJ-0207V3622WH

Advertisement

loading
Need help?

Need help?

Do you have a question about the allen+roth TJ-0207V3622WH and is the answer not in the manual?

Questions and answers

Related Manuals for LF allen+roth TJ-0207V3622WH

Summary of Contents for LF allen+roth TJ-0207V3622WH

  • Page 1 I TEM #5980220 MODEL # TJ-0207V3622WH 36" SINGLE SINK VANITY WITH TOP ALLEN + ROTH and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved. ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Thank you for purchasing this ALLEN + ROTH product.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents........................3 Safety Instruction......................3 Preparation.........................4 Assembly Instructions....................4 Care and Maintenance......................12 Troubleshooting....................12 Warranty..........................12 Replacement Parts List......................13...

  • Page 3: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Vanity Vanity top Backsplash SAFETY INSTRUCTION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING Unpacking requires two adults and several steps are more easily handled with two adults. CAUTION DO NOT try to pry off top from vanity, as damage to top or vanity may occur.

  • Page 4: Preparation

    PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 30-35 minutes (24 hours for silicone caulk to dry). Tools Required for Assembly (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit.
  • Page 5 ASSEMBLY INSTRUCTIONS → 3. Reinstalling the drawers (step 3 (optional) Fully extend the metal glide tracks. 4. Reinstalling the drawers Gently lower and slide the drawer box into the rear glide catch. Lower the drawer box down to completely rest on extended glides and push plastic levers to lock the drawer box in place.
  • Page 6 ASSEMBLY INSTRUCTIONS 6. Adjusting the doors up or down (optional) Loosen screws (4pcs/ hinge) on both hinges. Adjust door up or down. Retighten screws. 7. Adjusting the doors in or out (optional) Loosen screws (1pc/ hinge) on both hinges. Adjust the doors in or out. Retighten screws.
  • Page 7 ASSEMBLY INSTRUCTIONS → 8. Adjusting the shelves (step 8 11) (optional) Remove the shelf screws securing the shelf to the Shelf supports (4 screws). 9. Removing the shelf from the vanity. 10. Inserting the shelf supports into the desired holes Ensure that all the shelf supports are level.
  • Page 8 ASSEMBLY INSTRUCTIONS 11. Reinstalling the shelves Gently insert the shelf into the vanity Secure it to the Shelf supports using the shelf screws 12. Applying silicon to the Backsplash (step 12 → Apply silicone to the unpolished back side and bottom of the Backsplash (C).
  • Page 9 16. Removing top - reinstalling/replacing top → (step 16 20) (optional) lf you need to remove the top for any purpose, do so in the following manner: Open the doors and remove the top drawers (Please reference the step 2 on page 4).
  • Page 10 ASSEMBLY INSTRUCTIONS 17. Removing the top Use a screwdriver (not provided) to unscrew these 10 wood screws, and place them face up onto a scratch free surface such as a foam sheet that came in the packaging. Screws for fixing top layout 10 screws Top panel 18.
  • Page 11 ASSEMBLY INSTRUCTIONS 20. Re-installing the drawers → Please reference the step 3 4 on page 5.

  • Page 12: Care And Maintenance

    CARE AND MAINTENANCE Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. You can clean the vanity with a gentle, non-abrasive household cleaner. Make sure to dry the wood immediately with a soft cloth or towel. The stone top can be cleaned using standard marble cleaning agents available at your local supplier.

  • Page 13: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 888-251-1026, 8 a.m. - 8 p.m., EST, Monday - Sunday. You may also contact us at ascs@lowes.com. PART DESCRIPTION PART# Backsplash BSP-10036400 Right door 0207V3622-RDO Left door 0207V3622-LDO Side drawers 0207V3622-SD Shelf...
