Summary of Contents for Keysight Technologies 16440A
Page 1

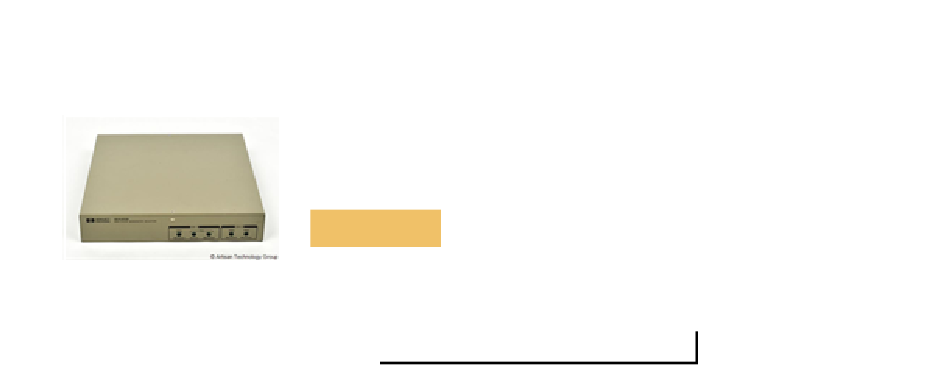

HP 16440A SMU/Pulse Generator Selector 1275 In Stock Qty Available: 1 Used and in Excellent Condition Open Web Page https://www.artisantg.com/80235-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
Page 3
FAR 52.227-19 (June 1987) or any equivalent agency regulation or contract clause. Use, duplication or disclosure of Software is subject to Keysight Technologies’ standard commercial license terms, and non-DOD Departments and Agencies of the U.S. Government will receive no greater than...
Because of the danger of introducing additional hazards, do not install substitute parts or perform any unauthorized modification to the instrument. Return the instrument to a Keysight Technologies Sales and Service Office for services and repair to ensure that safety features are maintained.
Safety Symbols The general definitions of safety symbols used on equipment or in manuals are listed below. Instruction manual symbol. The equipment will be marked with this symbol when it is necessary for the user to refer to the instruction manual. Hazardous voltage and potential for electrical shock.
Product Stewardship Waste Electrical and Electronic Equipment (WEEE) The crossed out wheeled bin symbol indicates that separate collection for waste electric and electronic equipment (WEEE) is required, as obligated by the EU DIRECTIVE and other National legislation. Please refer to http://keysight.com/go/takeback to understand your Trade in options with Keysight in addition to product takeback instructions.
Page 9
The B1500A needs Keysight 16445A selector adapter. Inspecting the 16440A upon Receiving NOTE When the 16440A selector (B1500A-A04) arrives at your site, make sure that nothing is missing or damaged. Unpack the carton, then check the contents against figure and table shown in “Introduction”.
Page 10
16440-60001 5 angle 16440-60002 6 User's Guide 16440-90005 a. Three screws are furnished for each plate. b. Furnished with 16440A-001/002. Two screws are also furnished for each angle. c. This document. Furnished with 16440A-001/002. Keysight 16440A User’s Guide, Edition 6...
If you want to add two more channels for a total of four, you can order another 16440A, which is called the “selector expander”. The selector and selector expander have identical circuits. The only difference is the channel naming. The selector has CH 1 and CH 2, and the selector expander has CH 3 and CH 4.
Page 12
CH 1 and CH 3 can have four switching states: all open, SMU on, PGU on, and PGU open. CH 2 and CH 4 can have three switching states: all open, SMU on, and PGU on. Keysight 16440A User’s Guide, Edition 6...
Page 13
When the switching state changes from “PGU on” to “PGU open”, only the semiconductor relay switches. This reduces the amount of times the mechanical relay is switched. The semiconductor relay has a much longer switching life than the mechanical relay. Keysight 16440A User’s Guide, Edition 6...
Page 14
If you use two selectors to have four channels, connect the CONTROL Output terminal of the selector to the CONTROL Input terminal of the second selector using a 40 cm control cable as shown below. Keysight 16440A User’s Guide, Edition 6...
Page 15
You can use two inputs for one selector, and four inputs for two selectors. b. You can use two outputs for one selector and four outputs for two selectors. Selector out- put is either one of the PGU outputs or the SMU output. Keysight 16440A User’s Guide, Edition 6...
Page 16
User's Guide Operation • Connecting the selector to the B1500A Turn off the B1500A before connecting the instruments. Then connect as shown below. 16440A Selector #2 for DUT terminals 3 a CONTROL Input Output CH 1 CH 2 Output DUT terminal 1...
3. Position a plate on both sides. 4. Attach each plate using the three flathead screws supplied with the instrument. NOTE If you use the 16445A selector adapter, fix it under the selector by similar method. Keysight 16440A User’s Guide, Edition 6...
Page 18
6. Position a plate on both sides. 7. Attach each plate using the three flathead screws supplied with the instrument. NOTE If you use the 16445A selector adapter, fix it under the selector by similar method. Keysight 16440A User’s Guide, Edition 6...
Page 19
If you use the 16441A R-box, attach the R-Box to the selector as shown below. 16442A/B Test Fixture 16440A Selector 16441A R-BOX NOTE If you use the 16445A selector adapter, fix it under the R-box by similar method. Keysight 16440A User’s Guide, Edition 6...
Page 20
To Attach the Selector to Shielding Box You can attach your selector to a shielding box. You need a standard screwdriver. The following figure shows the spacing of the 16440A (B1500A-A04) screw holes. You need to prepare four screws and nuts to match the screw holes.
Page 21
3. Position a plate on both sides. 4. Attach each plate using the three flathead screws supplied with the instrument. NOTE If you use the 16445A selector adapter, fix it on top of the selector by similar method. Keysight 16440A User’s Guide, Edition 6...
Page 22
2. Place the selector(s) on the side panel of the shielding box. 3. Position four nuts on the inside panel of the shielding box. 4. Attach the angle bracket to the shielding box using four flathead screws. Keysight 16440A User’s Guide, Edition 6...
Page 23
User's Guide Installation If you use the 16441A R-box, attach the R-Box to the selector on the shielding box as shown below. Keysight 16440A User’s Guide, Edition 6...
Keysight Technologies recommend the following cleaning procedure. 1. Make sure that voltage or current is not present at any channel. 2. Disconnect all cables from the selector.
Function Keysight 16440A switches either a SMU or PGU to the associated output port. You can expand to 4 channels by adding an additional 16440A. The channel 1 PGU port provides “PGU OPEN” function, which can disconnect the PGU by opening a semiconductor relay.
Page 29
40 cm triaxial cable (Keysight part number 04155-61605) • Option 003 • 40 cm control cable (Keysight part number 04155-61608) for connecting selector to selector expander • 40 cm triaxial cable (Keysight part number 04155-61605) Keysight 16440A User’s Guide, Edition 6...
700 pF typical (at 1 MHz, VinVout = 0 V) Signal transfer characteristics Overshoot < 5 % of pulse amplitude (at 20 ns leading and trailing time, 50 pulse generator source impedance, 50 pF 1 M in parallel load) Keysight 16440A User’s Guide, Edition 6...
Page 31
User's Guide Specifications Keysight 16445A Selector Adapter Specifications Keysight 16445A Selector Adapter is the connection box required to transfer the control signal from the B1500A and apply DC power to the Keysight 16440A SMU/Pulse Generator Selector. • Temperature Range +5 C to +40 C Operating -20 C to +60 C...
