Simplicity
Operation
CONTENT OF SECTION TRACTOR CONTROLS
A brief description of tractor controls, followed
by the basic tractor operating procedures, is given
in this section to help you get to know your tractor
and how to operate it safely and efficiently.

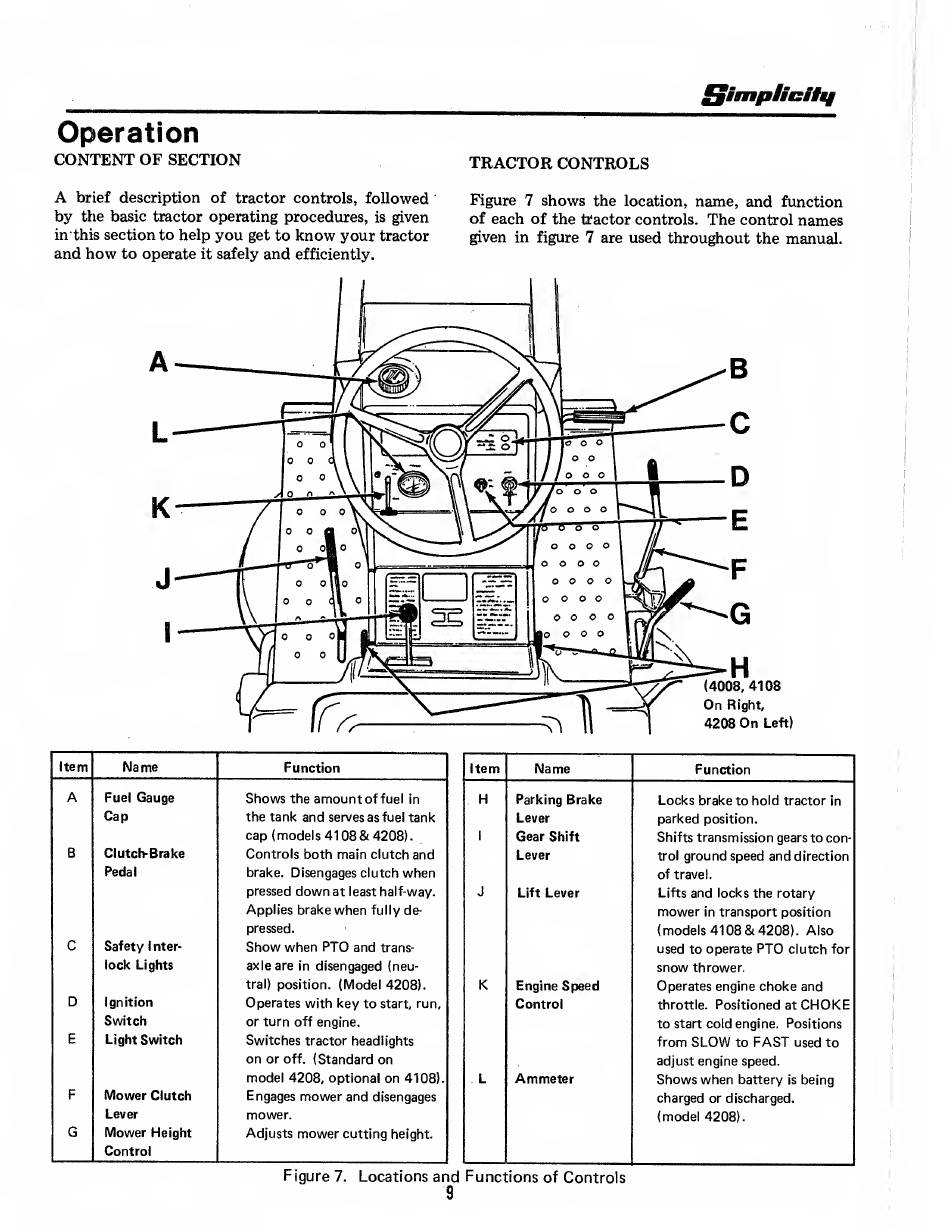

Figure 7 shows the location, name, and function
of each of the tractor controls. The control names
given in figure 7 are used throughout the manual.
Item Name
Function
Item Name Function
A
Fuel Gauge
Shows the amount of fuel in H
Parking Brake
Locks brake to hold tractor in
Cap
the tank and serves as fuel tank
Lever
parked position.
cap (models 4108 & 4208). 1 Gear Shift
Shifts transmission gears to con-
B Clutch-Brake
Controls both main clutch and
Lever
trol ground speed and direction
Pedal
brake. Disengages clutch when
of travel.
pressed down at least half-way. J
Lift Lever Lifts and locks the rotary
Applies brake when fully de-
mower in transport position
pressed.
(models 4108 & 4208). Also
C Safety 1 nter-
Show when PTO and trans-
used to operate PTO clutch for
lock Lights
axle are in disengaged (neu-
snow thrower.
tral) position. (Model 4208).
K
Engine Speed Operates engine choke and
D Ignition
Operates with key to start, run.
Control
throttle. Positioned at CHOKE
Switch
or turn off engine.
to start cold engine. Positions
E
Light Switch Switches tractor headlights
from SLOW to FAST used to
on or off. (Standard on
adjust engine speed.
model 4208, optional on 4108). L Ammeter
Shows when battery is being
F Mower Clutch
Engages mower and disengages
charged or discharged.
Lever mower.
(model 4208).
G Mower Height
Adjusts mower cutting height.
Control
Figure 7. Locations and Functions of Controls
9
