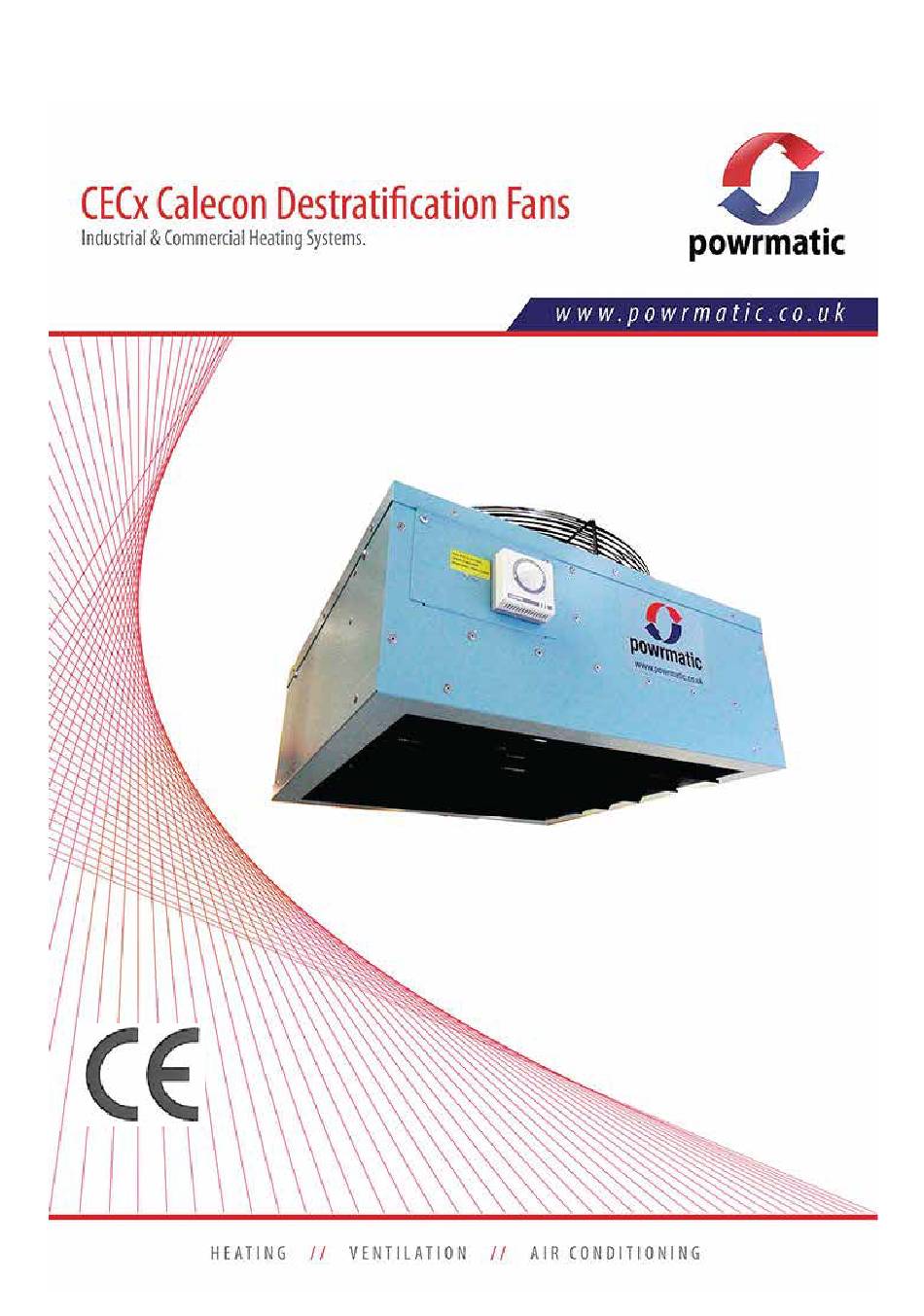

- Page 1 Issue 2.0 June 2014 Users, Installation and Servicing Instructions WARNING: THIS APPLIANCE MUST BE EARTHED...
- Page 2 The original installation documentation. As much detail as possible on the fault. Your supplier, or installer, will then contact Powrmatic to make a guarantee claim on your behalf. Conditions of Guarantee The destratification fan must have been installed by a competent recognised installer, and in accordance with the manufacturer’s instructions, building regulations and local...
- Page 3 We appreciate you buying one of our high quality products and know that you have made the best choice. By choosing Powrmatic, you are investing in UK manufacturing & its workforce. We pride ourselves by manufacturing products that provide clean, comfortable and safe working environ- ments worldwide together with the personal &...
- Page 4 Ensure units are not mounted so as to greater system flexibility. If the speed regulators are not of obstruct the movement of overhead cranes, forklift trucks Powrmatic supply, it must be established that they are etc. compatible with the Calecon units. Refer to the instruc- Where multiple units are being used, their positioning tions with the speed controllers for wiring details.
- Page 5 2.1.3. Electrical Connections Any external controls that are used in conjunction with the units must be of an approved type. All units are fully pre-wired and only require final connec- To wire the Calecon unit:- tions for the incoming mains supply. 1.
- Page 6 Model CECx1400 CECx2250 CECx3350 CECx4500 CECx6500 Air displacement m3/s 0.77 1.58 2.10 3.07 m3/h 2787 4320 5688 7560 11040 Mounting height (max.) Mounting Height (sug. min.) Electrics Supply V/ph/Hz 230/1/50 Start Current amps Run Current amps 0.78 Dimensions Width “A” Overall Height “B”...
- Page 7 4.3 Wiring Diagrams EARTH MAINS SUPPLY LIVE 230V 1ph 50 Hz NEUTRAL CEWAL RQ10 THERMOSTAT CAPACITOR Black Blue Brown Green 1ph Calecon CECx3350/4500- LB FANS EARTH MAINS SUPPLY LIVE 230V 1ph 50 Hz NEUTRAL CEWAL RQ10 THERMOSTAT 1ph Calecon CECx1400/2250/6500 - ZIEHL FAN LIVE 1 LIVE 2 MAINS SUPPLY...
- Page 8 Calecon Calecon HEATING DIVISION Hort Bridge Ilminster, Somerset TA19 9PS Tel: 01460 53535 Fax: 01460 52341 Every effort is made to ensure accuracy at time of going to press. However as part of our policy of continued product improvement, we reserve the right to alter specification without prior notice. Page 8 CECx Range Users, Installation &...
