RAB WPLED L Instructions

INSTRUCTIONS
WPLED® L FIELD-ADJUSTABLE WALL PACK INSTALLATION
RAB Lighting is committed to creating high-quality, aff ordable, well-designed and energy-effi cient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We'd love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fi xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture. No user serviceable parts inside.
CAUTION: For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened
rmly. Apply weatherproof sealant between mounting surface and back of housing. This is especially important with an
uneven wall surface. Silicone all plugs and unused conduit entries.
Suitable for outdoor applications.
Suitable for downlight ONLY.

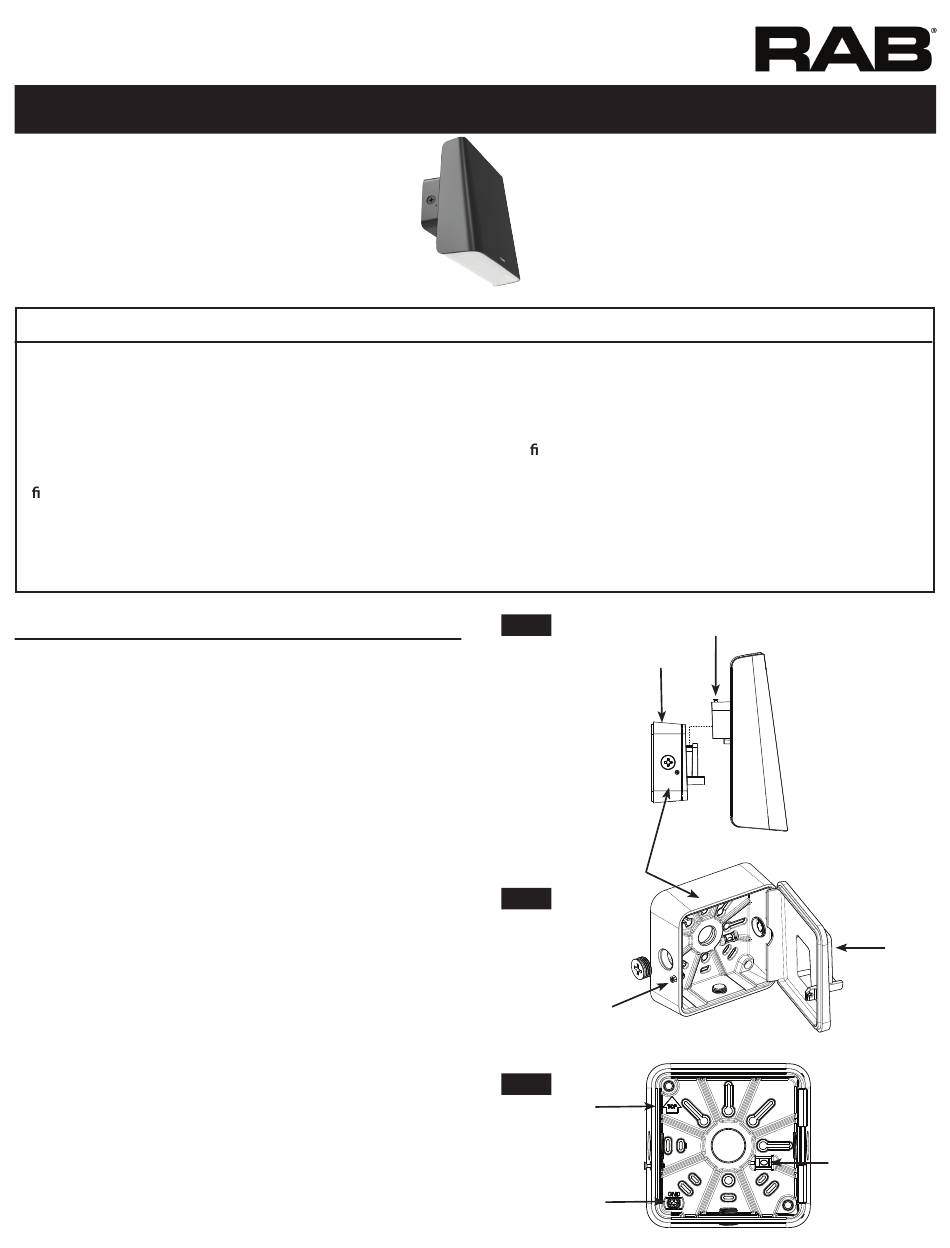

WALL MOUNT
1. Separate the Wall Mount Box Assembly from fi xture by loosening
captive Red Cleat Screw (Fig. 1) and slide the fi xture off the Wall
Mount Box.
2. Loosen the captive Red Door Screw on the Wall Mount Box and
open the door (Fig. 2).
3. Orient Wall Mount Box such that 'TOP' is pointing up (Fig. 3) and
feed supply wires into the Wall Mount Box.
4. Secure Wall Mount Box to a sturdy mounting surface. Use
appropriate mounting hardware (by others). A Leveling Bubble is
provided (Fig. 3).
5. Silicone around the edge of Wall Mount Box and/or junction box
where it meets the wall.
6. Set desired Color Temperature (CCT), Power (W) and/or Photocell
ON/OFF position (see Field Adjustment instructions, Fig. 4 & 5).
7. Feed fi xture wires through door opening then slide fi xture onto
Door Cleat and secure the captive Red Cleat Screw.
8. Wire the fi xture using UL listed wire connectors according to NEC
and local codes (Fig. 6).
9. Close door and tighten Red Door Screw.
Fig: 1
Wall Mount Box
Assembly
Wall Mount Box
Fig: 2
Red Door Screw
Fig: 3
'TOP'
Ground
Red Cleat Screw
Leveling
Bubble
Door
