RAB ALED10 Mounting Instructions

Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your
comments. Call the us at 888-RAB-1000, or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT.
Make certain power is OFF before installing or maintaining fixture. No user serviceable
WARNING:
parts inside.
ALED10, ALED13

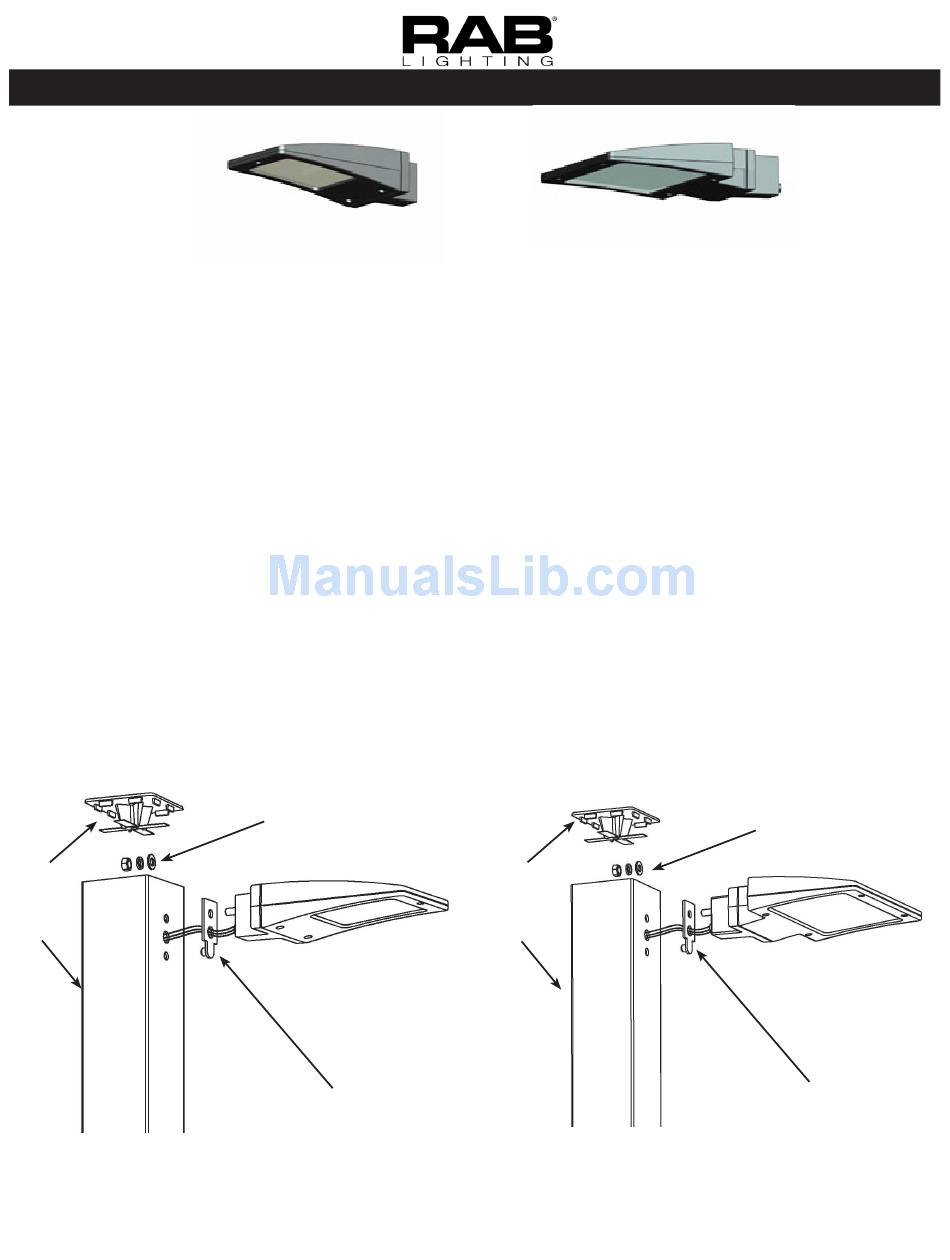

MOUNT TO POLE
For use with standard RAB pole drilling. See drawing
below
Mount fixture to Pole:
1.
Place Adaptor Gasket between the fixture and drilled
Pole as shown. Line up center hole with center hole
in the pole drilling pattern.
2.
Place 3/8-16 bolt from the Adaptor thru the top hole
of the Gasket to the Pole. Use nut, lockwasher and
washer and tighten inside the pole.
3.
Make the necessary wiring connections and knot the
wires for strain relief.
4.
Install the Pole Cap.
Pole Cap
Pole
ALED POLE MOUNT INSTRUCTIONS
TM
Nut, Lockwasher &
Washer
Adaptor Gasket
ALED20, ALED26
MOUNT TO POLE
For use with standard RAB pole drilling. See drawing
below
Mount fixture to Pole:
1.
Place Adaptor Gasket between the fixture and drilled
Pole as shown. Line up center hole with center hole
in the pole drilling pattern.
2.
Place 3/8-16 bolt from the Adaptor thru the top hole
of the Gasket to the Pole. Use nut, lockwasher and
washer and tighten inside the pole.
3.
Make the necessary wiring connections and knot the
wires for strain relief.
4.
Install the Pole Cap.
Pole Cap
Pole
.
Nut, Lockwasher &
Washer
Adaptor Gasket
