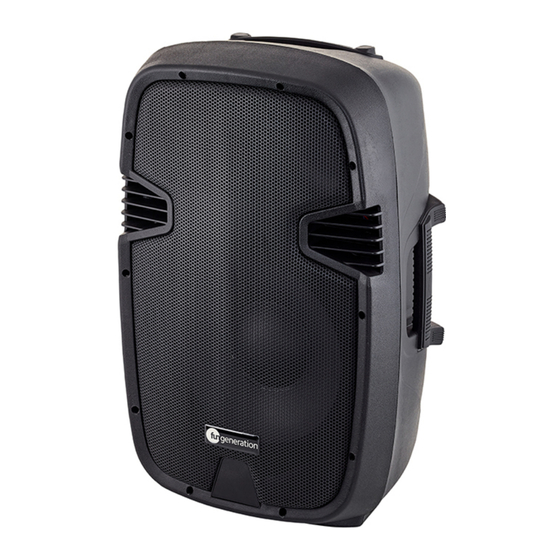

PL 108 P, PL 110 P, PL 112 P, PL 115 P

Passive Speaker

Need help?

Do you have a question about the PL 108 P and is the answer not in the manual?

Questions and answers

Summary of Contents for Fun Generation PL 108 P

Page 1 PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 21.10.2024, ID: 383468, 383471, 383472, 402991 (V4)
Page 3 Safety instructions............................. 7 Features................................9 Installation..............................10 4.1 Tips on handling speakers......................12 Connections............................... 13 Technical specifications........................14 Plug and connection assignment....................24 Protecting the environment......................25 PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 4 PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 5 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 6 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 7 Decrease the volume level immediately if you experience ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use adequate ear-muffs. PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 8 The plasticiser contained in the rubber feet of this product may react with the coating of the floor and cause permanent dark stains after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the product’s rubber feet and the floor. PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 9 36 mm pole flange on the bottom Sturdy plastic housing with carrying handles Protective cover (optional, item no. 407135, item no. 407136, item no. 407137, item no. 407138, model-specific) PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 10 Ensure that speakers are always a sufficient distance away from sensitive equip‐ ment that may be affected by an external magnetic field. PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 11 Only use stands whose maximum bearing capacity is at least as high as the weight of the device. Always ensure that the stand is stable. PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 12 If you notice distortion during operation, either the amp or the speaker is overloaded. This may permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐ tortion. PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 13 ö 1 [INPUT] | Input, designed as a lockable Speaker Twist 2 [OUTPUT] | Connection for connecting another passive speaker, designed as a lockable Speaker Twist PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 14 Max. sound pressure level 107 dB SPL Beam angle (H × V) 90° × 60° Dimensions (W × H × D) 240 mm × 390 mm × 205 mm PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 15 Technical specifications Weight 3.8 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 16 Technical specifications Frequency response PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 17 254 mm Beam angle (H × V) 90° × 60° Dimensions (W × H × D) 325 mm × 490 mm × 254 mm Weight 5.6 kg PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 18 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Frequency response PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 19 315 mm Beam angle (H × V) 90° × 60° Dimensions (W × H × D) 374 mm × 570 mm × 315 mm Weight 9.8 kg PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 20 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Frequency response PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 21 350 mm Beam angle (H × V) 90° × 60° Dimensions (W × H × D) 440 mm × 670 mm × 350 mm Weight 11 kg PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 22 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Frequency response PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 23 Ways 2-way Stand flange 36 mm Wall mount Protective cover Optional Optional Optional Optional (item no. (item no. (item no. (item no. 407135) 407136) 407137) 407138) PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 24 ‘just’ in poor transmission quality! Speaker Twist connector Signal 1 (in phase) 1– Signal 1 (out of phase) PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 25 Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the instructions and markings on the packaging. Observe the disposal note regarding documentation in France. PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 26 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. If your old device contains personal data, delete those data before disposing of it. PL 108 P, PL 110 P, PL 112 P, PL 115 P Passive Speaker...
Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
