Summary of Contents for Fun Generation PL 108 P

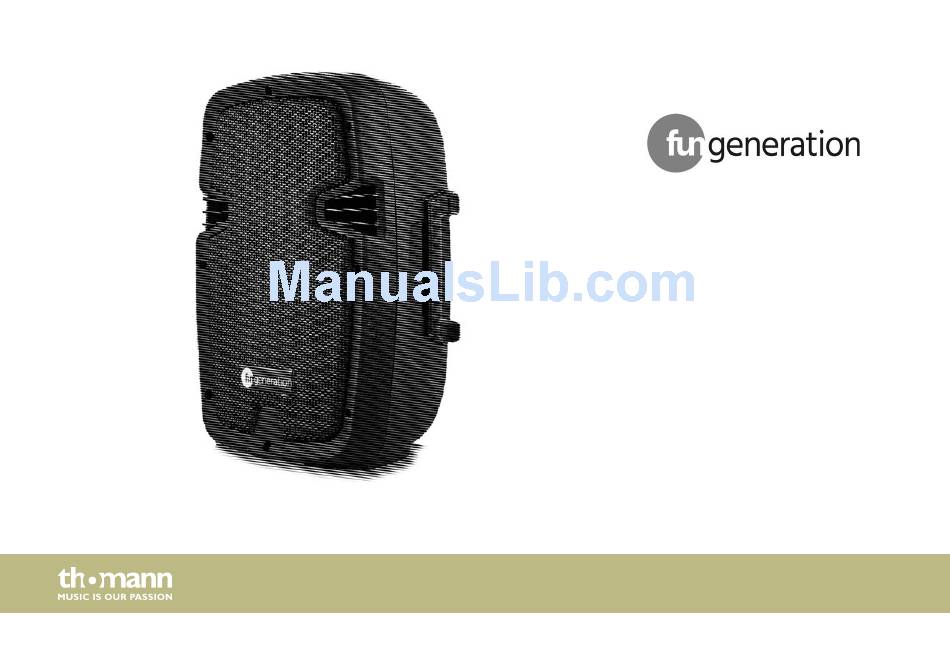

- Page 1 PL 108 P / 110 P / 112 P passive 2 way speaker user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 19.09.2016, ID: 383468_383471_383472...
-
Page 3: Table Of Contents
1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 10 Installation..............................11 4.1 Tips on handling speakers......................13 4.2 Connections............................14 Technical specifications........................17 Plug and connection assignment....................20 Cleaning............................... 21 Protecting the environment......................22 PL 108 P / 110 P / 112 P... -
Page 4: General Information
General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. PL 108 P / 110 P / 112 P... -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. PL 108 P / 110 P / 112 P...
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Decrease the volume level immediately if you experience ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. PL 108 P / 110 P / 112 P...
-
Page 10: Features
Features Features passive 2-way speaker maximum load capacity 320 W, 480 W or 600 W (depending on the model) 8", 10" or 12" woofer (depending on the model) 1" tweeter 2 × lockable NL4 chassis connectors (IN/OUT) solid plastic housing with pole mount and handles passive 2 way speaker... -
Page 11: Installation
Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. PL 108 P / 110 P / 112 P... - Page 12 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. passive 2 way speaker...
-
Page 13: Tips On Handling Speakers
If you notice distortion during operation, either the amp or the speaker is overloaded. This may permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐ tortion. PL 108 P / 110 P / 112 P... -
Page 14: Connections
Installation 4.2 Connections Model PL 108 P passive 2 way speaker... - Page 15 Installation Model PL 110 P PL 108 P / 110 P / 112 P...
- Page 16 Installation Model PL 112 P 1 [INPUT] Lockable NL4 chassis connector for signal input (1+/1–). 2 [OUTPUT] Lockable NL4 chassis connector output for connecting an additional passive speaker box (1+/1–). passive 2 way speaker...
-
Page 17: Technical Specifications
8 Ω Sound pressure level (max.) 107 dB Frequency range 90 Hz - 18 kHz Dimensions (W × H × D) 438 mm × 295 mm × 245 mm Weight 3.8 kg PL 108 P / 110 P / 112 P... - Page 18 Technical specifications PL 110 P System Passive 2-way speaker Configuration 1 × 10" woofer, 1 × 1" tweeter Connections 2 × NL4 (IN/OUT) Power handling 480 W (peak) Impedance 8 Ω Sound pressure level (max.) 109 dB Frequency range 80 Hz - 18 kHz Dimensions (W ×...
- Page 19 8 Ω Sound pressure level (max.) 114 dB Frequency range 80 Hz - 19 kHz Dimensions (W × H × D) 630 mm × 420 mm × 342 mm Weight 9.8 kg PL 108 P / 110 P / 112 P...
-
Page 20: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... -
Page 21: Cleaning
The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. PL 108 P / 110 P / 112 P... -
Page 22: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
