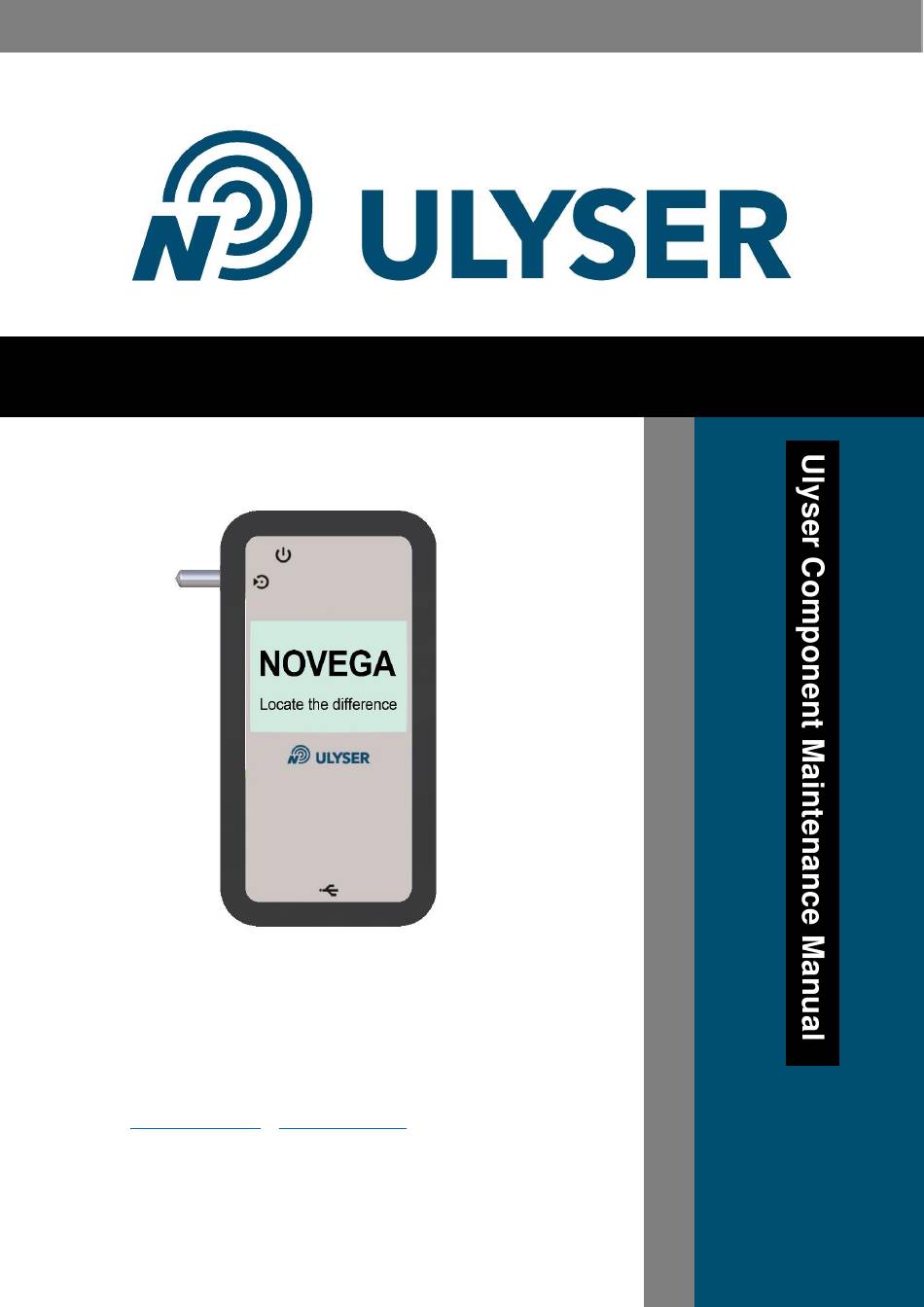

Novega Ulyser Aviation Maintenance Manual

Tester and analyser for underwater locating devices

Advertisement

Quick Links

Document number CMM_685_Ulyser
Novega Produktionssysteme GmbH
Gewerbepark 2 | 87477 Sulzberg (See) | Germany
Fon: +49/8376/92990-0
info@novega.de
|
www.novega.de
PNR:
20538-00
Cage Code:
CG871
ECCN:
EAR99
Rev02

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ulyser Aviation and is the answer not in the manual?

Questions and answers

Summary of Contents for Novega Ulyser Aviation

  • Page 1 Document number CMM_685_Ulyser Novega Produktionssysteme GmbH Gewerbepark 2 | 87477 Sulzberg (See) | Germany Fon: +49/8376/92990-0 info@novega.de www.novega.de PNR: 20538-00 Cage Code: CG871 ECCN: EAR99 Rev02...
  • Page 2 This document/data is the property of Novega. You may not possess, use, copy, or disclose this document/data or any information contained therein, for any purpose, including without limitation to design, manufacture, or repair parts, or obtain EASA or any other government approval to do so, without Novega express written permission. Neither receipt nor possession, use, copying, or disclosing by anyone without Novega express written permission is not authorized and may result in criminal and/or civil liability.
  • Page 3 Test Procedure ............................ 17 General ............................17 Switching On/Off the Ulyser ..................... 17 Functional Test and Readout of Novega-ULD ................ 17 Functional Test and Readout of Novega-LF-ULD..............19 Functional Test and Readout of Other ULD with one Pin ............ 21 Functional Test and Readout Other ULD with two Pins ............
  • Page 4 Figure 19: Connecting Screen with process bar ..................14 Figure 20: Measurement Screen example (Novega) ................15 Figure 21: Measurement Screen example (Novega) with Signal OK-symbol ........15 Figure 22: Memory Screen example ......................15 Figure 23: Sending Screen ......................... 15 Figure 24: Connecting Screen (other) ......................
  • Page 5 Table 2-1: Log of Revisions .......................... 6 Table 3-1: Type Plate information ......................8 Table 3-2: Specification ..........................8 Table 3-3: Component scope ........................9 Table 4-1: Device description ........................10 Rev02 09 Aug 2024 Page 5 of 32 © Novega 2024, confidential and proprietary document...
  • Page 6 LF-ULD ..............Airframe Low Frequency Underwater Locating Device PNR ............................Part number SER ............................Serial number ULB ......................... Underwater Locator Beacon ULD ......................... Underwater Locating Device Rev02 09 Aug 2024 Page 6 of 32 © Novega 2024, confidential and proprietary document...
  • Page 7 With the Ulyser a functional test of an ULD/LF-ULD can be performed. Both Novega and devices of other manufacturers can be tested with it. The Ulyser measures the battery voltage and reads out data of the ULD/LF-ULD.
  • Page 8 Size (L x W x H): 94 mm (3.70 inch) x 49 mm (1.93 inch) x 16 mm (0.63 inch) Weight: 55 g (1.9 oz) Table 3-2: Specification Rev02 09 Aug 2024 Page 8 of 32 © Novega 2024, confidential and proprietary document...
  • Page 9 Figure 4: Component scope Position Name Ulyser 22097-00 Device Support 25106-00 Activation Cord 21860-00 Activation Cord SID88 21950-00 Activation Clamp 25110-00 Case 25114-00 Table 3-3: Component scope Rev02 09 Aug 2024 Page 9 of 32 © Novega 2024, confidential and proprietary document...
  • Page 10 Figure 6: Ulyser back side Figure 5: Ulyser front side Position Name Touchscreen Jack/measuring adapter USB Micro-B Port On/Off-Button Loudspeaker Microphone Works Test Sticker Table 4-1: Device description Rev02 09 Aug 2024 Page 10 of 32 © Novega 2024, confidential and proprietary document...
  • Page 11 Insert the USB Micro-B plug into the USB water switch pins socket of the Ulyser (Figure 9). Polarity: + Positive Pole: Jack of Activation Cord - Negative Pole: Jack of the Ulyser Rev02 09 Aug 2024 Page 11 of 32 © Novega 2024, confidential and proprietary document...
  • Page 12 Polarity: + Positive Pole: Activation Clamp - Negative Pole: Jack of the Ulyser Note: Never use this clamp for devices with two water switch pins! Rev02 09 Aug 2024 Page 12 of 32 © Novega 2024, confidential and proprietary document...
  • Page 13 Insert the USB Micro-B plug into the USB socket of the Ulyser (Figure 15). Polarity: + Positive Pole: Jack of Activation Cord - Negative Pole: Jack of the Ulyser Rev02 09 Aug 2024 Page 13 of 32 © Novega 2024, confidential and proprietary document...
  • Page 14 ULD/LF-ULD activated. Successfully measuring is confirmed by a single “beep”; the Figure 19: Connecting Screen with Ulyser automatically switches process bar Measurement Screen (Figure 20). Rev02 09 Aug 2024 Page 14 of 32 © Novega 2024, confidential and proprietary document...
  • Page 15 Return to the Start Menu (Figure 17) by tapping the screen. 4.3.5 Memory Screen By pressing the Memory-button , the last stored measurement data of a Novega device is displayed (Figure 22). Note: Return to the Start Menu (Figure 17) by tapping the screen.
  • Page 16 Start Screen (Figure 16), when the device turned Then Ulyser automatically switches into the Start Menu Figure 27: Low Battery Screen (Figure 17). Rev02 09 Aug 2024 Page 16 of 32 © Novega 2024, confidential and proprietary document...
  • Page 17 Data of the last readout remain recorded under normal conditions (e.g. battery level is not low) on the Ulyser. 5.3 Functional Test and Readout of Novega-ULD Perform the following steps for the functional test and readout of a Novega-ULD 5.3.1 Place the required equipment on the table as described in chapter 4.2.2 and put the ULD on...
  • Page 18 To ensure that the ULD switches back into sleep mode, wait until the pulse symbol on the display disappears and the audible pulse repetition of the Ulyser stops. Rev02 09 Aug 2024 Page 18 of 32 © Novega 2024, confidential and proprietary document...
  • Page 19 Ulyser Component Maintenance Manual Document Name: CMM_685_Ulyser_Aviation 5.4 Functional Test and Readout of Novega-LF-ULD Perform the following steps for the functional test and readout of a Novega-LF-ULD 5.4.1 Place the required equipment on the table as described in chapter 4.2.4.
  • Page 20 To ensure that the LF-ULD switches back into sleep mode, wait until the pulse symbol on the display disappears and the audible pulse repetition of the Ulyser stops. Rev02 09 Aug 2024 Page 20 of 32 © Novega 2024, confidential and proprietary document...
  • Page 21 Document Name: CMM_685_Ulyser_Aviation 5.5 Functional Test and Readout of Other ULD with one Pin Perform the following steps for the functional test of a non Novega-ULD with one water switch 5.5.1 Place the required equipment on the table as described in chapter 4.2.3 and put the ULD on the fixture provided.
  • Page 22 Jack and clamp can be removed (Figure 40). Note: The voltage value and the Signal OK- symbol are still displayed after measuring. Figure 40: Remove jack and clamp Rev02 09 Aug 2024 Page 22 of 32 © Novega 2024, confidential and proprietary document...
  • Page 23 Ulyser Component Maintenance Manual Document Name: CMM_685_Ulyser_Aviation 5.6 Functional Test and Readout Other ULD with two Pins Perform the following steps for the functional test of a non Novega-ULD with two water switch pins 5.6.1 Place the required equipment on the table as described in chapter 4.2.4 and put the ULD on...
  • Page 24 Jacks can be removed (Figure 44). Note: The voltage value and the Signal OK- symbol are still displayed after measuring Figure 44: Remove the jacks Rev02 09 Aug 2024 Page 24 of 32 © Novega 2024, confidential and proprietary document...
  • Page 25 Document Name: CMM_685_Ulyser_Aviation 5.7 Functional Test and Readout Other LF-ULD with one Pin Perform the following steps for the functional test of a non Novega-LF-ULD with one water switch 5.7.1 Place the required equipment on the table as described in chapter 4.2.5.
  • Page 26 Jacks can be removed (Figure 48). Note: The voltage value and the Signal OK- symbol are still displayed after measuring. Figure 48: Remove the jacks Rev02 09 Aug 2024 Page 26 of 32 © Novega 2024, confidential and proprietary document...
  • Page 27 (Service Address). Defect Activation Contact service Clamp. department (Service Address). Defect of the ULD/LF-ULD. Check the ULD/LF-ULD. Defect of the Ulyser. Contact service department (Service Address). Rev02 09 Aug 2024 Page 27 of 32 © Novega 2024, confidential and proprietary document...
  • Page 28 Ulyser in the Note the pulse repetition rate direction of the ULD/LF-ULD of the ULD/LF-ULD. to prevent losing the acoustic signal. Rev02 09 Aug 2024 Page 28 of 32 © Novega 2024, confidential and proprietary document...
  • Page 29 Novega) complete testing “O” ULD/LF-ULD choose procedure with the Ulyser Start the functional test again. please follow the instructions of chapter 5 step by step. Rev02 09 Aug 2024 Page 29 of 32 © Novega 2024, confidential and proprietary document...
  • Page 30 Open the battery cover on the back side of the Ulyser by pulling it in the direction shown (Figure 50). Figure 50: Open the battery cover Rev02 09 Aug 2024 Page 30 of 32 © Novega 2024, confidential and proprietary document...
  • Page 31 Close the battery cover (Figure 52). Figure 52: Close the battery cover 7.1.8 Mount the silicone sleeve (Figure 53) Figure 53: Mount the silicone sleeve Rev02 09 Aug 2024 Page 31 of 32 © Novega 2024, confidential and proprietary document...
  • Page 32 Gewerbepark 2 | 87477 Sulzberg (See) | Germany Fon: (+49) 8376-92990-0 E-Mail: info@novega.de www.novega.de 8 Warranty and Guaranty For further information regarding warranty and guaranty, please contact our service department (Service Address). Rev02 09 Aug 2024 Page 32 of 32 © Novega 2024, confidential and proprietary document...
