Corradi Move Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Move®
Installation manual
Rev. 3 - 11.2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the Move and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Corradi Move

Summary of Contents for Corradi Move

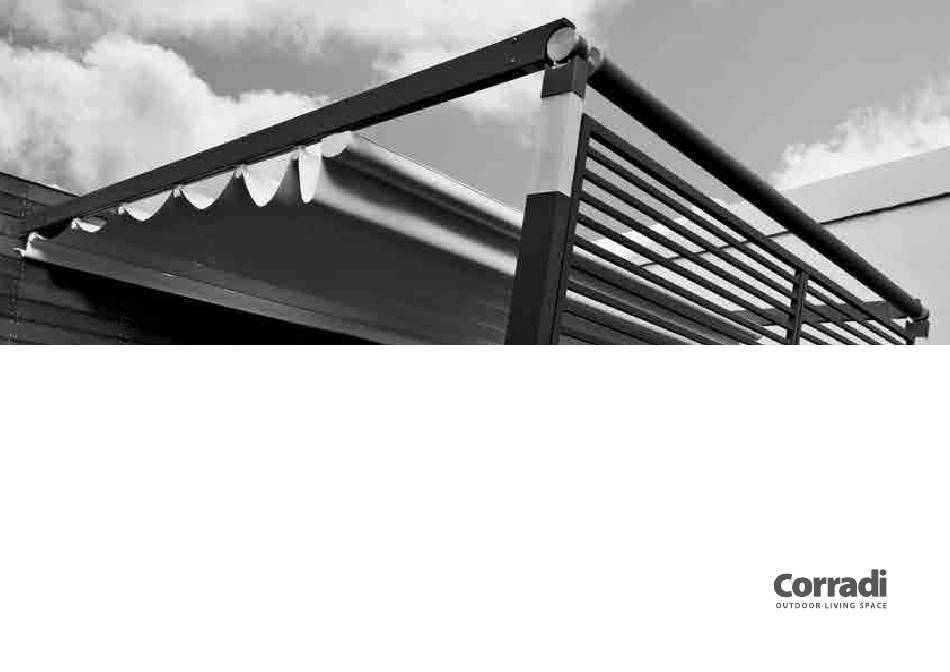

  • Page 1 Move® Installation manual Rev. 3 - 11.2015...
  • Page 2 INDEX...
  • Page 3 Mounting drive shafts will invalidate said warranty. Assembling Impact canvas awning CORRADI reserves the right to make technical modifications to the components or products, Mounting Impact canvas awning except for the main features, at any time and without prior notice.
  • Page 4 GENERAL SAFETY PRECAUTIONS Destination of use The MOVE is designed for a specific use (as outlined in this manual); any use other than that Attention: general operating note envisaged shall relieve CORRADI of any responsibility.
  • Page 5 The use of non-original spare parts, or unauthorised interventions or modifications shall relieve CORRADI of any responsibility for damage caused to persons animals or property. It is absolutely forbidden to tamper with the fixings, the supports, the guides, the fixtures, the command and idler units and any other component of the MOVE.
  • Page 6 WALL MOUNTED CONTROLS (CUSTOMER RESPONSIBILITY) It is custom designed and built for the client to protect from the In case of MOVE with a wall-switch, push the switch in the low To open the canvas, press the lower zone of the button, to close sun and inclement weather, with the exception of snow;...
  • Page 7 PRELIMINARY CHECKS Proceed as follows: - Remove the elements from the packaging. The MOVE is delivered in a strong package that protects it from knocks or scratches. There is a label on the package that indicates: Attention: • Manufacturer data do not use a knife to avoid the risk of ruining the paint or metal elements.
  • Page 8 894 kg. The MOVE system is operated by a motor-reducer (electric drive) with the possibility of radio control; operated on request by a gearbox (manual drive), solely for flat versions or tilted with 2 guides up to 350 cm projection.
  • Page 9 Ideal for TILTED AWNINGS with 4 guides to guarantee with every manoeuvre the correct canvas tension, which could change due to the dilatations of the fabric or the guides caused by thermal excursions. 7 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 10 - the external line of the brackets (1). line marked on the wall. - the intermediate dimensions for fastening the central brackets (with 3-guide structure and equal runner centres). 8 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 11 - Check the linearity of the tracing made with a spirit level. - Position the outside brackets on the line traced on the wall and mark the fixing holes. 9 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 12 - Drill the bracket fixing holes on the wall with a suitable drill bit. - Insert the plugs (suitable for the type of wall and load, see table). - tighten the screws; - check the planarity of each bracket. 10 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 13 - The intermediate bracket must be positioned in correspondence with the line marked on the wall. - the external line of the brackets (1). - the intermediate dimensions for fastening the central brackets (with 3-guide structure and equal runner centres). 11 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 14 - Drill the bracket fixing holes on the wall with a suitable drill bit. - Insert the plugs (suitable for the type of wall and load, see table). - tighten the screws; - check the planarity of each bracket. 12 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 15 - Screw in the bracket (3) using bolts and washers (4). - Insert the top corner profile of the beam (2) into the folded end of the bracket (5) and tighten using bolts and washers (5). 13 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 16 INDEX 2 MOUNTING WALL BEAM (OPTIONAL) fig. 12 - Tighten the bolts. - Insert the caps (1) in both ends of the beam. 14 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 17 - Remove the button screws (1) and the hexagonal bars (2), insert the hexagonal bars into the using the screws (3) without tightening them fully. upright hinge (3) and insert it into the relative bracket of guide (4). 15 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 18 N.B.: This operation is to be performed on the inner sides of the structure. N.B.: This operation is to be performed on both outer sides of the structure. 16 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 19 Remove the screws on the runner cross-bar, fit the runner cross-bar with the motor facing the wall to the beams with the screws previously loosened, positioning it so that the motor drive control unit (3) is facing downwards. 17 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 20 - For 4-guide structures, there are two motor runner cross-bars and they must be installed in the outer clear openings. - Use the corner brackets (1) and the screws provided (2) to fit the runner cross-bars (3) to the beams. 18 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 21 20 - Guide fixing fig. 21 - Guide fixing - Fully tighten all the guide/upright fastening screws. - Fully tighten all the screws fastening the guide with the wall bracket. 19 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 22 - Mount the outer supports of the profile with Velcro 10 cm from the inside of the wall bracket aligned at a distance of approximately 9 cm from the lower edge of the wall bracket. - The inner supports must be approximately 100 cm apart. - Fix the profile with Velcro to the supports by turning the lever of each support. 20 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 23 24 - Mounting transmission shaft - Move to the limit switch (towards the wall) the drive slider of the runners so that all the - The transmission unit is made up of pre-assembled shafts: secondary transmission shaft (1) left intermediate sliders are grouped together.
  • Page 24 - Slide the shaft (2) on the drive shaft (6), rotating it to compact the sliders in the runner (I). are of the same length. - Insert the two bushes (7) on both sides and lock them with the screws (5). 22 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 25 - If the two hexagons do not couple during the insertion (male and female), turn the shaft (2) slightly, always keeping it pushed towards the motor until reaching the first coupling point. 23 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 26 - Insert into the runner (I) until up against the bush (10). - Position the bush (10) at 5.5 cm and lock it with the screw (9). 24 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 27 - If the two hexagons do not couple during the insertion (male and female), turn the shaft (3) slightly, always keeping it pushed towards the motor until reaching the first coupling point. 25 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 28 - Tighten the screw (11). - Take the shaft (1) and loosen the screw (13). - Position the bush (14) at 5.5 cm and lock with the screw (13). 26 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 29 - Insert the shaft into the runner (I) until up against the bush (14). - Loosen the screw (15), run the shaft (1) rotating it (see fig. 29) to compact the sliders in the runner (I). 27 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 30 - Check the correct working efficiency of the movement by moving the winding handle if the movement is manual, or else by temporarily connecting the electric motor. N.B.: At this point, fully tighten the fixing screws on each guide. 28 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 31 - Prepare the windbreak tubes, taking care to spray the silicon for the entire length of the slots to N.B.: For structures above 600 cm, the canvas is not supplied mounted. facilitate the insertion of the canvas as shown in the figure. 29 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 32 - Insert the windbreak tubes (I) in the respective rubber cords of the canvas awning (Z) as shown pelmet with Velcro (V), intermediate tubes (I) and terminal tubes (T). in the figure. 30 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 33 - Insert the supports of the central sliders (G) in the respective windbreaker tubes (I). - Fit the successive windbreaker tubes (I) on the canvas awning rubber cords (Z) and snug against the central slider supports (G). 31 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 34 46 - Assembling canvas awning - Insert the lateral stoppers (Y) in the respective windbreak tubes (I) on both sides. - Insert the terminal tubes (T) as illustrated. 32 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 35 47 - Assembling canvas awning fig. 48 - Assembling canvas awning - Insert the slider supports of the terminal tubes (S) as illustrated. - Insert the terminal tubes (T) as illustrated. 33 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 36 - Fit the front pelmet (M) on the wall side terminal tube, and the pelmet with Velcro (V) on the - Insert the outside stoppers (J) in the respective terminal tubes on both sides. outer side terminal tube. 34 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 37 - Rotate the canvas awning, bringing the tubes to rest on the floor as shown in the figure, and then - Move one side of the canvas flush with the lateral stoppers and lock in this position with the start stretching the canvas.
  • Page 38 - If the completely tightened canvas is longer or shorter than the tubes, divide the measure equally (X/2) on both sides and proceed with the canvas fixing. NOTE: NEVER FASTEN the plates (P), with the relative screws, to the intermediate joints (if present). 36 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 39 - It is recommended to use the special tool contained in the LAYING KIT (optional on request). NOTE: Tighten the canvas as much as possible. The perfect aesthetic and functional result is directly proportional to the tension of the canvas. 37 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 40 (A) to make a cut in correspondence with the hole for the passage of the slider pin (look for the position half way between the two screws fixing the canvas). 38 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 41 “motor and automatism” manual. Using the remote control provided, move the guide sliders down by approximately 80-90 cm (on flat awning); up to 100 cm from the end of the lower guide (on tilted awning).
  • Page 42 NOTE: The drive slider nuts (C1) and the fixed slider nut (C2) should be tightened until the terminal cap is against the slider. The intermediate sliders should be hand-tightened to the end of the thread. 40 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 43 INDEX 8 INSTALLATION OF ASSEMBLED IMPACT AWNING fig. 61 - Velcro pelmet - Fix the Velcro pelmet to the previously installed profile. 41 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 44 - Drill the floor in correspondence with the holes of each foot (3). - Fasten using the plugs (4) and tighten (5). - Lower the tubular and tighten the screws previously loosened (6). 42 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 45 - Fasten using the plugs (4) and tighten (5), then lower the foot covers previously lifted (5). N.B.: The foot covers, standard supply, must be cut to the required size on site. 43 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 46 (A). 44 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 47 - Cut the cables to fit and attach them to the control unit by following the instructions below. carried out by the customer). To register the remote control follow the instructions contained in the handbook "MIR WHITE". 45 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 48 - Cut the cables to fit and attach them to the control unit by following the instructions below. carried out by the customer). To register the remote control follow the instructions contained in this handbook "MIR RGB". 46 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 49 INDEX 14 PROTECTION HOOD FOR JOINTS COVER fig. 72 - Fit the covering protection hoods into place, in the indicated areas. 47 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 50 INDEX 15 TIN HARDWARE fig. 73 - Spread the adhesive noise-reducing gasket on all the beam union bars. 48 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 51 - Drill the tin hardware in correspondence with the centre line of the beam joining bars (4). - Fasten with the self-drilling screws (5). - Insert and tighten the bracket cover protections (6) right (cod. 03907) and left (cod. 03906). 49 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 52 - Drill the wall in correspondence with the holes on the protection cover (3) and insert suitable wall plugs, then fasten with the screws and rivet. - Spread a line of silicon between the roof protective cover and the wall (4). 50 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 53 - Insert the indicated side of the gutter terminal (2) into the end of the gutter profile (1), twisting until it is fully attached. - Remove all of the adhesive strip cover (3). - Press the terminal against the gutter profile so that it adheres properly. 51 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 54 - Fit the lock fork (2) into the gutter terminal housing (1). - Apply a silicone bead along the gutter profile/terminal join as shown in the figure. N.B.: Repeat these operations on the opposite side of the structure. 52 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 55 - Screw in with the screw (5) near the terminal tube, callout Z. - The outer screw (6) (with dummy hole) is for adjusting the height of the gutter, callout W. - Repeat at the opposite end. 53 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 56 - Drill the gutter first at the two ends, then in the centre every approx. 25 cm, in the groove and Repeat these exact operations on the opposite side of the structure. the end tube with a ø4 drill bit. 54 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 57 - Twist in the middle section of the gutter profile (1) equidistant from the ends of the two gutter profiles, drill in the centre and screw in. N.B.: Assembly equivalent to gutter profile. 55 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 58 - Insert the indicated side of the water drainage central elements (1) into the end of the gutter profiles (3), twisting until they are fully attached. - Remove all of the adhesive strip cover (2). - Press the terminal against the gutter profiles so that it adheres properly. 56 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 59 N.B.: For aesthetical purposes only, it is advisable, though not essential, to apply silicone beads to the hollow spaces outside the gutter and the central and side water drainage elements, then remove any excess to even it up (X). 57 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 60 >118 > 32,7 hurricane massive damage * Wind resistance classification according to UNI EN 13561 DATA SHEET 2 - MAXIMUM DIMENSIONS DATA SHEET 3 - DEFLECTION MINIMUM VALUES FOR FLAT MOVE WITH SINGLE CANVAS Modello Nr.guide Width Projection Centre distance...
  • Page 61 74 km/h (Beaufort scale 6 - Class 3 in accordance with EN 13561) Width (cm) 1000 1050 1100 1150 1200 1250 1300 2 guides 3 guides 4 guides 59 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
  • Page 62 INDEX DATA SHEETS DATA SHEET 6 - MINIMUM SLOPE (values for tilted Move with single canvas) Width (cm) 1000 1050 1100 1150 1200 1250 1300 2 guides 3 guides 4 guides 60 di 62 CORRADI - INSTALLATION MANUAL - MOVE...
  • Page 63 For the correct choice and use of the bolts refer exclusively to the manual of the fixing system anchor (not combined) (considering 2 bolts for each support). manufacturer. * data taken from the HILTI technical sheets (ST_HY 70_2008.PDF page 259-261 and hsl-3.PDF page 62-63) 61 di 62 CORRADI - INSTALLATION MANUAL - MOVE Rev. 3 - 11.2015...
