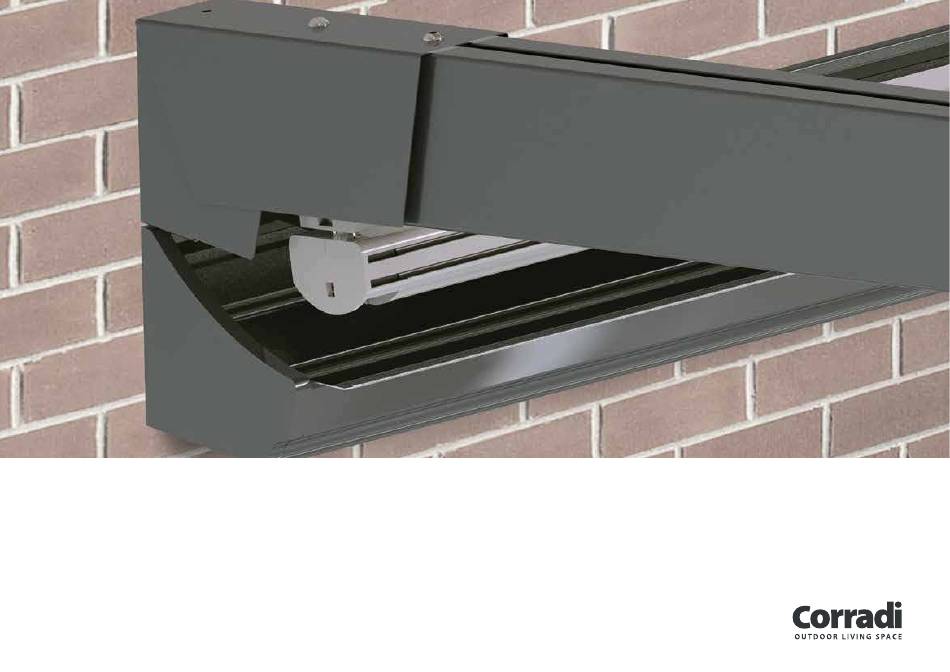

PALLADIA MURO MURO®
Installation manual
05145-ING 0.02.2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PALLADIA MURO MURO and is the answer not in the manual?

Questions and answers

Related Manuals for Corradi PALLADIA MURO MURO

Summary of Contents for Corradi PALLADIA MURO MURO

  • Page 1 PALLADIA MURO MURO® Installation manual 05145-ING 0.02.2016...

  • Page 2: Table Of Contents

    5. Mounting the transmission shafts 6. Assembling impact canvas awning CORRADI S.r.L. reserves the right to make technical modifications to the components or products, except 7. Mounting Impact canvas awning for the main features, at any time and without prior notice.

  • Page 3: Symbols

    GENERAL SAFETY PRECAUTIONS Destination of use Any improper use of PALLADIA MURO MURO relieves CORRADI S.r.L. of all liability. Attention: general operating note When using the canvas it is good practice to remember that all moving parts can be a source of danger.

  • Page 4: Preliminary Checks

    The use of non-original spare parts, or unauthorised interventions or modifications shall relieve CORRADI S.r.L. of any responsibility for damage caused to persons animals or property. It is absolutely forbidden to tamper with the fixings, the supports, the guides, the fixtures, the command and idler units and any other component of the PALLADIA MURO MURO.

  • Page 5: Radio Control

    MANUAL DRIVE Canvas ascent If the PALLADIA MURO MURO is fitted with manual drive, to open and close the canvas, insert the manual winding handle in the seat of the gearbox and turn clockwise (to raise the canvas) or anticlockwise (to lower the canvas).

  • Page 6: Material Check, Unpacking And Preparation

    MATERIAL CHECK, UNPACKING AND PREPARATION PRELIMINARY CHECKS Tje PALLADIA MURO MURO is delivered in a strong package that protects it from knocks or scratches. There is a label on the package that indicates: • Manufacturer data • The order number •...

  • Page 7: Features

    2 guides 2 guides The PALLADIA MURO MURO system is set in motion by a ratio-motor (electric drive) and it may be 3 guides 3 guides remote controlled;...

  • Page 8: Versions And Motorisations

    AWNINGS with 4 guides to guarantee with every manoeuvre the correct canvas tension, which could change due to the dilatations of the fabric or the guides caused by thermal excursions. 8 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...

  • Page 9: Mounting Rear Wall Brackets

    - the external line of the brackets (1). marked on the wall. - the intermediate dimensions for fastening the central brackets (with 3-guide structure and equal runner centres). 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 9 of 52...
  • Page 10 Check the linearity of the tracing made with a spirit level. Position the outside brackets on the line traced on the wall and mark the fixing holes. 10 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 11 - Insert the plugs (suitable for the type of wall and load, see table pag. 59); - tighten the screws; - check the planarity of each bracket 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 11 of 52...

  • Page 12: Mounting Wall Beam (Optional)

    The intermediate bracket must be positioned in correspondence with the line marked on the wall. - the external line of the brackets (1). - the intermediate dimensions for fastening the central brackets (with 3-guide structure and equal runner centres). 12 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 13 - Insert the plugs (suitable for the type of wall and load, see table pag. 59). - Tighten the screws. - Check the planarity of each bracket. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 13 of 52...
  • Page 14 - Screw in the bracket (3) using bolts and washers (4). - Insert the top corner profile of the beam (2) into the folded end of the bracket (5) and tighten using bolts and washers (5). 14 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 15 2 MOUNTING WALL BEAM (OPTIONAL) fig. 12 - Tighten the bolts. - Insert the caps (1) in both ends of the beam. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 15 of 52...

  • Page 16: Mounting Guides/Uprights

    For 4-guide structures, there are two motor runner cross-bars and they must be installed in the outer clear openings. Use the corner brackets (1) and the screws provided (2) to fit the runner cross-bars (3) to the beams 16 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 17 - Loosen the two screws (5) to be able to move the plates (2). - Rest the guide on the brackets (3) and insert the screws (1) in the upper slot. - Close with the screws (4) and adjust. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 17 of 52...
  • Page 18 Remove the screws on the runner cross-bar, fit the runner cross-bar with the motor facing the wall to the beams with the screws previously loosened, positioning it so that the motor drive control unit (3) is facing downwards. 18 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 19 3 MOUNTING THE GUIDES/UPRIGHTS fig. 20 - Guide fixing - Fully tighten all the screws fastening the guide with the wall bracket. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 19 of 52...

  • Page 20: Mounting Profile With Velcro

    Mount the outer supports of the profile with Velcro 10 cm from the inside of the wall bracket aligned at a distance of approximately 9 cm from the lower edge of the wall bracket. The inner supports must be approximately 100 cm apart. Fix the profile with Velcro to the supports by turning the lever of each support. 20 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...

  • Page 21: Mounting The Transmission Shafts

    Take the shaft (2) and loosen the screws (4) and (5). Remove the drive shaft (6) and the two bushes (7). ATTENTION: DO NOT DISMOUNT THE PRE-ASSEMBLED SHAFTS. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 21 of 52...
  • Page 22 Slide the shaft (2) on the drive shaft (6), rotating it to compact the sliders in the runner (I). the same length. Insert the two bushes (7) on both sides and lock them with the screws (5). 22 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 23 If the two hexagons do not couple during the insertion (male and female), turn the shaft (2) slightly, always keeping it pushed towards the motor until reaching the first coupling point. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 23 of 52...
  • Page 24 Take the transmission shaft (3) and loosen the screw (9). Insert into the runner (I) until up against the bush (10). Position the bush (10) at 5,5 cm and lock it with the screw (9). 24 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 25 If the two hexagons do not couple during the insertion (male and female), turn the shaft (3) slightly, always keeping it pushed towards the motor until reaching the first coupling point. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 25 of 52...
  • Page 26 33 - Shaft installation Tighten the screw (11). Take the shaft (1) and loosen the screw (13). Position the bush (14) at 5,5 cm and lock with the screw (13) 26 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 27 Insert the shaft into the runner (I) until up against the bush (14). Loosen the screw (15), run the shaft (1) rotating it (see fig. 30) to compact the sliders in the runner (I). 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 27 of 52...
  • Page 28 Check the correct working efficiency of the movement by moving the winding handle if the movement is manual, or else by temporarily connecting the electric motor. N.B.: At this point, fully tighten the fixing screws on each guide 28 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...

  • Page 29: Assembling Impact Canvas Awning

    Prepare the windbreak tubes, taking care to spray the silicon for the entire length of the slots to facilitate N.B.: For structures above 600 cm, the canvas is not supplied mounted. the insertion of the canvas as shown in the figure. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 29 of 52...
  • Page 30 Insert the windbreak tubes (I) in the respective rubber cords of the canvas awning (Z) as shown in the Velcro (V), intermediate tubes (I) and terminal tubes (T). figure. 30 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 31 Insert the supports of the central sliders (G) in the respective windbreaker tubes (I). Fit the successive windbreaker tubes (I) on the canvas awning rubber cords (Z) and snug against the central slider supports (G). 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 31 of 52...
  • Page 32 45 – Assembling canvas awning Insert the lateral stoppers (Y) in the respective windbreak tubes (I) on both sides. Insert the terminal tubes (T) as illustrated. 32 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 33 46 – Assembling canvas awning fig. 47 – Assembling canvas awning Insert the slider supports of the terminal tubes (S) as illustrated. Insert the terminal tubes (T) as illustrated. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 33 of 52...
  • Page 34 Fit the front pelmet (M) on the wall side terminal tube, and the pelmet with Velcro (V) on the outer side Insert the outside stoppers (J) in the respective terminal tubes on both sides. terminal tube. 34 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 35 On the opposite extremity of the windbreak tube on which the tightener is applied, tighten the canvas by placing the knee on the end stopper of the tube 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 35 of 52...
  • Page 36 If the completely tightened canvas is longer or shorter than the tubes, divide the measure equally (X/2) on both sides and proceed with the canvas fixing. NOTE: NEVER FASTEN the plates (P), with the relative screws, to the intermediate joints (if present). 36 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 37 It is recommended to use the special tool contained in the LAYING KIT (optional on request). NOTE: Tighten the canvas as much as possible. The perfect aesthetic and functional result is directly proportional to the tension of the canvas 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 37 of 52...
  • Page 38 (look for the position half way between the two screws fixing the canvas). 38 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...

  • Page 39: Mounting Impact Canvas Awning

    Lower the bar of each lifting kit to the ground. Rest the canvas on the bars. Simultaneously actuate the lifting kits to bring the canvas awning up to the pins on the runners. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 39 of 52...
  • Page 40 NOTE: The drive slider nuts (C1) and the fixed slider nut (C2) should be tightened until the terminal cap is against the slider. The intermediate sliders should be hand-tightened to the end of the thread. 40 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...

  • Page 41: Installation Of Assembled Impact Awning

    If wishing to reduce the distance between the taut canvas and the wall, the opening limit switch will Fix the Velcro pelmet to the previously installed profile. have to be reprogrammed after having moved the first slider (C2) forward. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 41 of 52...

  • Page 42: Tin Hardware

    9 TIN HARDWARE fig. 62 Spread the adhesive noise-reducing gasket on all the beam union bars. 42 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 43 - Drill a hole in the metalwork in correspondence with the centre line of the beam union bars (4). - Fix using the self-drilling screws (5) provided. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 43 of 52...
  • Page 44 - mount the side bracket cover (3) inserting it from the bottom up. Remove the excess portion of bracket - Spread a line of silicon between the roof protective cover and the wall (4). cover using a suitable instrument. 44 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...

  • Page 45: Gutter Assembly (Tilted Version)

    Make a ø 3 hole at a distance of about 5 cm from the outer edge and centred in the zone indicated in the design for fixing the gutter to the structure. 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 45 of 52...
  • Page 46 Silicone the collar of the elbow connection (1) and insert it in the hole made in the gutter (3). Fasten the extension (2) to the gutter (3) with self-drilling screws or rivets. 46 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 0.02.2016...
  • Page 47 Page left intentionally blank for pagination purposes 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 47 of 52...

  • Page 48: Data Sheets

    > 32,7 hurricane massive damage *Wind resistance classification according to UNI EN 13561 DATA SHEET 2 - MAXIMUM DIMENSIONS DATA SHEET 3 - ARROW (MINIMUM VALUES FOR PALLADIA MURO MURO WITH SINGLE CANVAS) Model N° guides Width Projection Width (cm)
  • Page 49 49 km/h (Beaufort scale 6 - Class 3 according to EN 13561) Width (cm) 1000 1050 1100 1150 1200 1250 1300 2 runners 3 runners 4 runners 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 49 of 52...
  • Page 50 DATA SHEETS DATA SHEET 5- MINIMUM SLOPE (minimum values in cm for single canvas tilted PALLADIA MURO MURO) Width (cm) 1000 1050 1100 1150 1200 1250 1300 2 runners 3 runners 4 runners 50 of 52 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO...

  • Page 51: Example - Calculation Of Wind Resistance Based

    For the correct choice and use of the bolts refer exclusively to the manual of the fixing system anchor (not combined) (considering 2 bolts for each support). manufacturer * data taken from the HILTI technical sheets (ST_HY 70_2008.PDF page 259-261 and hsl-3.PDF page62-63) 0.02.2016 CORRADI SRL  INSTALLATION MANUAL  PALLADIA MURO MURO 51 of 52...
  • Page 52 CORRADIGROUP Corradi SrL Corradi System Srl 39, Via G. Brini 40128 Bologna - Italy 18, Via A. Einstein 47122 Forlì - Italy T +39 051 4188 411 F +39 051 4188 400 T +39 0543 796617 F +39 0543 794339 E info@corradi.eu...
