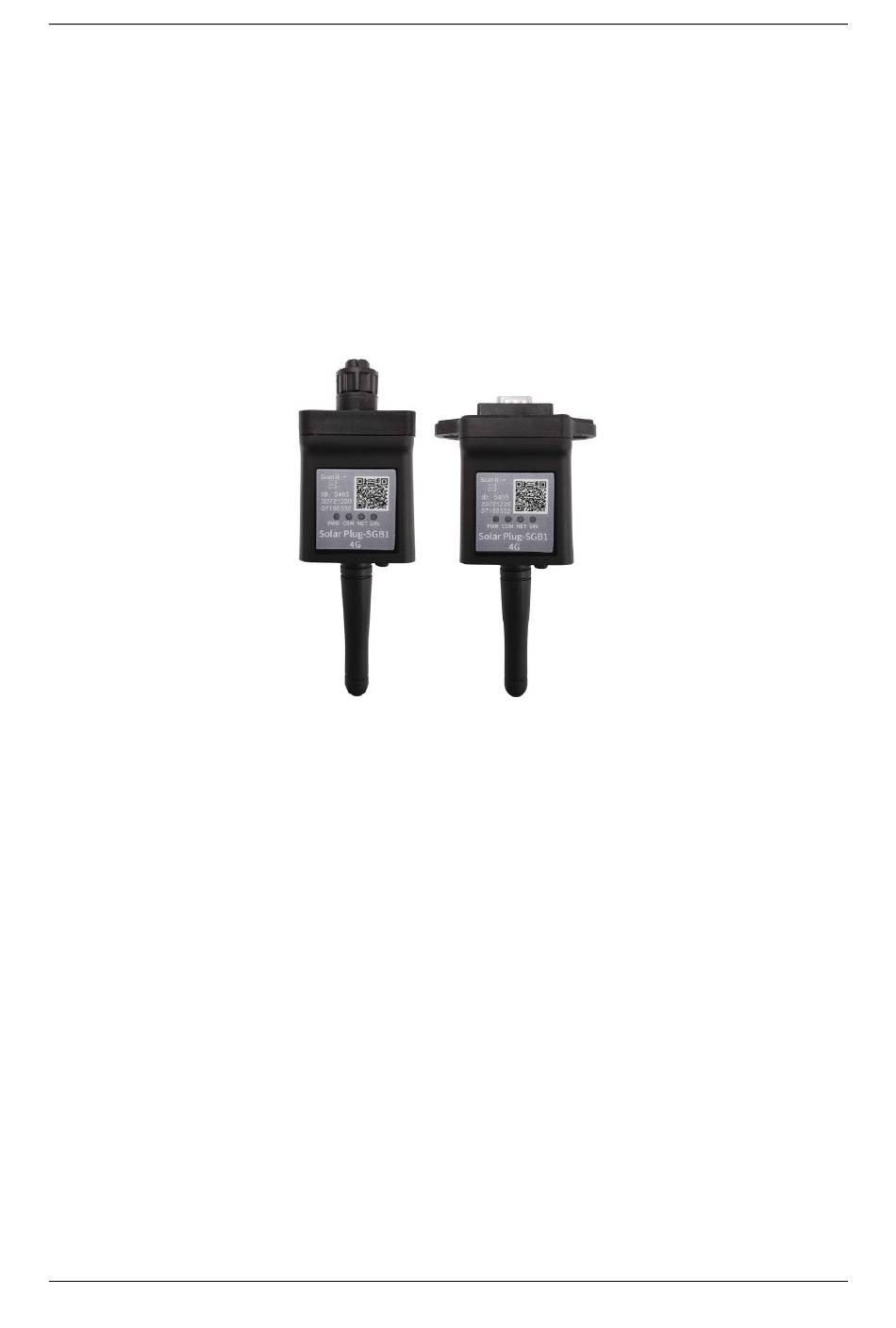

Solar Plug-SGB1 User Manual
RS485/RS232/TTL To 4G DTU
Product Features
Adopting RISC architecture SOC chip, with a maximum frequency of 160MHz, 276KB RAM,
2MB Flash, based on FreeRTOS system
Supports 4G, LTE-TDD, LTE-FDD for all network connectivity, with optional sub models
supporting specific networks
Support BLE 5.0 for diagnostic or local Bluetooth debugging and data collection functions
Supports RS485/RS232/TTL (one out of three) to 4G data transmission, with a maximum
serial port speed of 460800bps
Support Solar Of Things photovoltaic energy management platform, web page or APP to
monitor energy data
Power supply: 5~ 36VDC@10W
Supports multiple interface styles
Solar Plug-SGB1
User Manual
V 1.2
- 1 -
Advertisement
Related Manuals for Hi-flying Solar Plug-SGB1
Summary of Contents for Hi-flying Solar Plug-SGB1
- Page 1 Solar Plug-SGB1 User Manual Solar Plug-SGB1 RS485/RS232/TTL To 4G DTU User Manual V 1.2 Product Features Adopting RISC architecture SOC chip, with a maximum frequency of 160MHz, 276KB RAM, 2MB Flash, based on FreeRTOS system Supports 4G, LTE-TDD, LTE-FDD for all network connectivity, with optional sub models supporting specific networks ...
-
Page 2: Table Of Contents
2.1. Interface Diagram ......................9 2.2. Product Appearance Diagram ..................10 2.3. Solar Plug-SGB1 Interface Pin Definition ..............11 2.4. Solar Plug-SGB1 Indicator Light And Button Functions ...........13 2.5. Add SIM ...........................14 2.6. RS485 Interface Description ..................16 2.7. RS232 Interface Description ..................16 2.8. -
Page 3: Figure
Solar Plug-SGB1-20 Mechanical Dimensions ................21 Figure 23. Solar Plug-SGB1-27 Mechanical Dimensions ................22 Figure 24. Solar Plug-SGB1 Product Number Definition ................. 23 Figure 25. Product Application Architecture Diagram ..................24 Solar Plug-SGB1 Product Technical Parameters ................... 5 4G Operating Frequency ........................7 Interface Sub Models And Pin Definition Diagram ................ - Page 4 Solar Plug-SGB1 User Manual - 4 -...
-
Page 5: Product Overview
It is convenient for traditional serial devices to connect and use, and is suitable for Solar of Things photovoltaic energy management. It is suitable for the photovoltaic energy industry. 1.2. Product Parameters Solar Plug-SGB1 Product Technical Parameters Classification Parameter System Information... - Page 6 Solar Plug-SGB1 User Manual LTE-TDD: Maximum uplink rate 4Mbps, maximum downlink rate 6Mbps (configuration 1) LTE-TDD: Maximum uplink rate 2Mbps, maximum downlink rate 8Mbps (configuration 2) 4G Interface (- SA sub model) Using Regions Hong Kong, South Korea, Australia, Asia Pacific Support Frequency LTE-FDD：B1/B3/B5/B7/B8/B28...
-
Page 7: Frequency Band Description
Solar Plug-SGB1 User Manual Firmware Upgrade Serial port or OTA network upgrade Basic Parameters SIM Card Interface (Internal To The Nano SIM (1.8V/3V) Product) -06/-15/-22/-23/-24/-25 Type: 160mm x 72.37mm x 34.48mm -13 Type: 153mm x 72.28mm x 34.48mm Size -09/-10/-12/-26 Type: 172.5mm x 47.76mm x 34.53mm... - Page 8 Solar Plug-SGB1 User Manual Figure 1. Typical Applications - 8 -...
-
Page 9: Hardware Introduction
Solar Plug-SGB1 User Manual 2. HARDWARE INTRODUCTION Solar Plug SGB1 is a cellular network solution for serial device networking, which enables data transmission through cellular networks, making product integration very easy. 2.1. Interface Diagram Solar Plug SGB1 can use different interface styles to meet different device interface requirements, and currently there are three main interface styles. -
Page 10: Product Appearance Diagram
Solar Plug-SGB1 User Manual The DB9 interface also has a short style, detailed as described in the size diagram. Figure 5. DB9 Interface Default Style And Short Style If customers have customized interface requirements, they can contact our company for detailed discussion. -
Page 11: Solar Plug-Sgb1 Interface Pin Definition
Figure 9. Solar Plug-SGB1-15 Appearance Diagram 2.3. Solar Plug-SGB1 Interface Pin Definition The pin markings of the red aircraft female head and DB9 are shown in the following figure. Figure 10. Pin Markings Of The Red Aircraft Female Head And DB9... - Page 12 Solar Plug-SGB1 User Manual The green aircraft female head and DB9's green aircraft carrier head side pin markings are shown in the following figure. Figure 11. Green aircraft Female Head And Green Aircraft Female Head Side Pin Markings Interface Sub Models And Pin Definition Diagram...
-
Page 13: Signal Description
>: I — Input; O — Output; Power—Power supply 2.4. Solar Plug-SGB1 Indicator Light And Button Functions There are 4 LED indicator lights on the front of the product, and there is also a reset button on the side of the antenna. -
Page 14: Add Sim
Solar Plug-SGB1 User Manual Description Network Signal Note Name Type Off for 0.1 seconds, on for 0.1 seconds: The 4G network is in a data transmission and reception state Server On: connected to the server connection Off: Not connected to the server indicator light Defaults to high. - Page 15 Solar Plug-SGB1 User Manual Figure 14. Add SIM Step 2 Figure 15. Add SIM Step 3 - 15 -...
-
Page 16: Rs485 Interface Description
Figure 17. Standard DB9 Female RS232 Interface Pin Number Network Name Description Send data Receive data Power input to this product RI(VCC) 2.8. Solar Plug-SGB1 Mechanical Dimensions The dimensions of different sub models of Solar Plug-SGB1 products are defined as follows (in millimeters). - 16 -... -
Page 17: Mechanical Dimensions For Types 06/-15/-22
Solar Plug-SGB1 User Manual 2.8.1. Mechanical Dimensions For Types 06/-15/-22 Figure 18. Solar Plug-SGB1-06/-15/-22 Mechanical Dimensions - 17 -... -
Page 18: Mechanical Dimensions For Types -23/-24/-25
Solar Plug-SGB1 User Manual 2.8.2. Mechanical Dimensions For Types -23/-24/-25 Figure 19. Solar Plug-SGB1-23/-24/-25 Mechanical Dimensions - 18 -... -
Page 19: Mechanical Dimensions For Types -13
Solar Plug-SGB1 User Manual 2.8.3. Mechanical Dimensions For Types -13 Figure 20. Solar Plug-SGB1-13 Mechanical Dimensions - 19 -... -
Page 20: Mechanical Dimensions For Types -09/-10/-12/-26
Solar Plug-SGB1 User Manual 2.8.4. Mechanical Dimensions For Types -09/-10/-12/-26 Figure 21. Solar Plug-SGB1-09/-10/-12/-26 Mechanical Dimensions - 20 -... -
Page 21: Mechanical Dimensions For Types-20
Solar Plug-SGB1 User Manual 2.8.5. Mechanical Dimensions For Types-20 Figure 22. Solar Plug-SGB1-20 Mechanical Dimensions - 21 -... -
Page 22: Mechanical Dimensions For Types -27
Solar Plug-SGB1 User Manual 2.8.6. Mechanical Dimensions For Types -27 Figure 23. Solar Plug-SGB1-27 Mechanical Dimensions - 22 -... -
Page 23: Product Number
Solar Plug-SGB1 User Manual 2.9. Product Number According to customer requirements, Solar Plug-SGB1 provides different configuration versions, as follows: Figure 24. Solar Plug-SGB1 Product Number Definition - 23 -... -
Page 24: Network Topology
Solar Plug-SGB1 User Manual 3. NETWORK TOPOLOGY The application architecture of Solar Plug-SGB1 product is shown in the following figure. Figure 25. Product Application Architecture Diagram - 24 -... -
Page 25: Appendix A: Contact Information
Solar Plug-SGB1 User Manual APPENDIX A: CONTACT INFORMATION ------------------------------------------------------------------------------------------------------------ Website: www.hi-flying.com Contact person: Sales: sales@iotworkshop.com Support: support@iotworkshop.com Service: service@iotworkshop.com Business: business@iotworkshop.com ------------------------------------------------------------------------------------------------------------- - 25 -...
