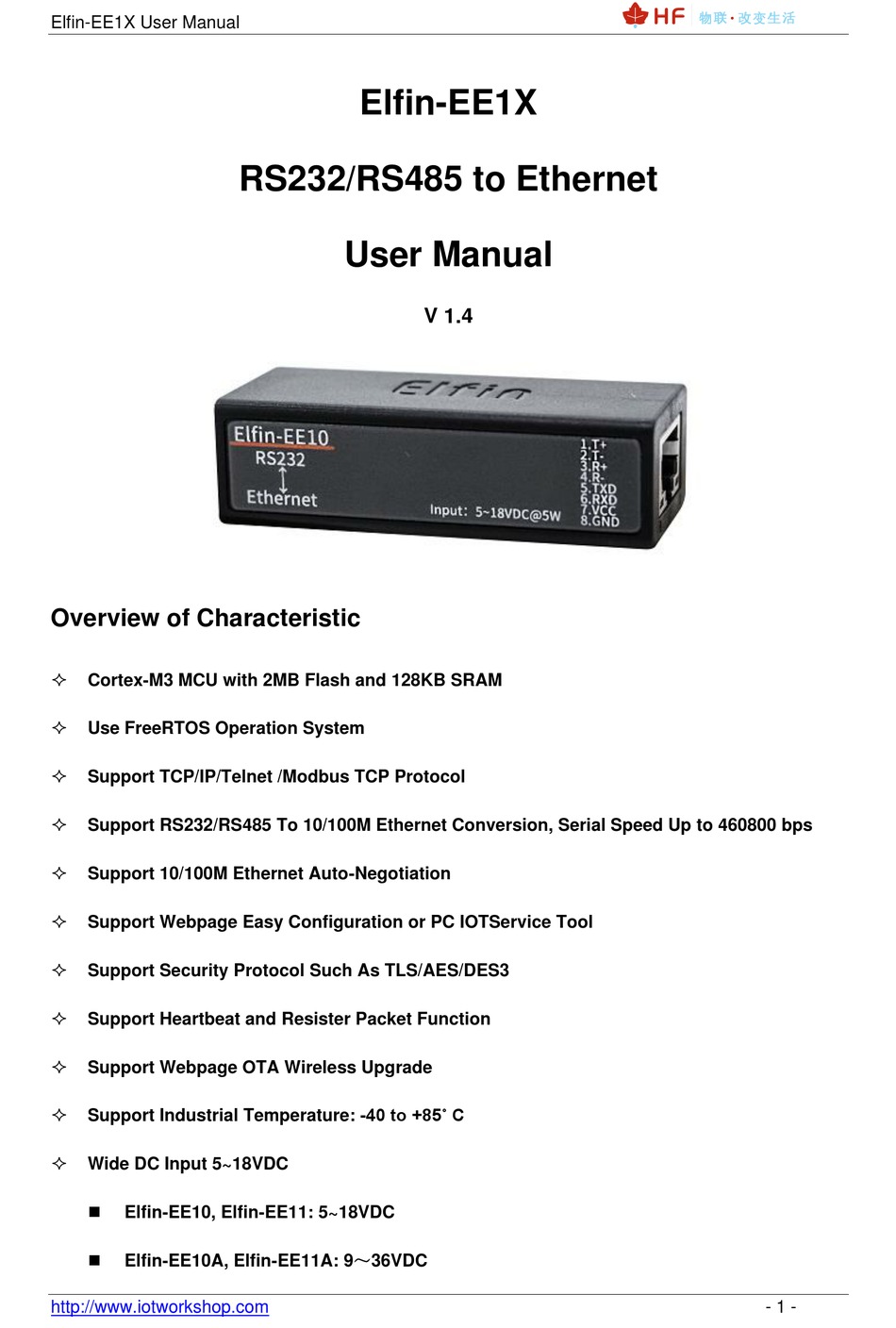

Elfin-EE1X User Manual
Overview of Characteristic
Cortex-M3 MCU with 2MB Flash and 128KB SRAM
Use FreeRTOS Operation System
Support TCP/IP/Telnet /Modbus TCP Protocol
Support RS232/RS485 To 10/100M Ethernet Conversion, Serial Speed Up to 460800 bps
Support 10/100M Ethernet Auto-Negotiation
Support Webpage Easy Configuration or PC IOTService Tool
Support Security Protocol Such As TLS/AES/DES3
Support Heartbeat and Resister Packet Function
Support Webpage OTA Wireless Upgrade
Support Industrial Temperature: -40 to +85˚ C
Wide DC Input 5~18VDC
◼
Elfin-EE10, Elfin-EE11: 5~18VDC
◼
Elfin-EE10A, Elfin-EE11A: 9～36VDC
http://www.iotworkshop.com
Elfin-EE1X
RS232/RS485 to Ethernet
User Manual
V 1.4
- 1 -
Advertisement
Table of Contents
Related Manuals for Hi-flying Elfin-EE1X
Summary of Contents for Hi-flying Elfin-EE1X
- Page 1 Elfin-EE1X User Manual Elfin-EE1X RS232/RS485 to Ethernet User Manual V 1.4 Overview of Characteristic Cortex-M3 MCU with 2MB Flash and 128KB SRAM Use FreeRTOS Operation System Support TCP/IP/Telnet /Modbus TCP Protocol Support RS232/RS485 To 10/100M Ethernet Conversion, Serial Speed Up to 460800 bps ...
- Page 2 Elfin-EE1X User Manual Size: 61 x 26 x 17.8 mm (L x W x H) http://www.iotworkshop.com - 2 -...
-
Page 3: Table Of Contents
Elfin-EE1X User Manual TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS ................3 LIST OF FIGURES ..........................4 LIST OF TABLES ..........................5 HISTORY ............................5 PRODUCT OVERVIEW ......................6 1.1. General Description ......................6 1.2. -
Page 4: List Of Figures
Rail Bracket ........................... 16 Figure 14. Bracket Size ........................... 16 Figure 15. Bracket Install Picture ........................17 Figure 16. Product Installation ........................17 Figure 17. EVK Package ..........................18 Figure 18. Elfin-EE1X Product Order Information ................... 18 http://www.iotworkshop.com - 4 -... -
Page 5: List Of Tables
ELFIN-EE1X Serial Server Device User Manual LIST OF TABLES Table1. Elfin-EE1X Technical Specifications ....................... 6 Table2. Elfin-EE10 Interface Definition ........................ 9 Table3. Elfin-EE11 Interface Definition ......................10 HISTORY Ed. V1.0 07-27-2018 First Version Ed. V1.1 08-17-2018 Fix pin description. Ed. V1.2 09-18-2018 Fix LED description. -
Page 6: Product Overview
The Elfin-EE1X using highly integrated hardware and software platform, it has been optimized for all kinds of applications in the industrial control, smart grid, personal medical application and remote control that have lower data rates, and transmit or receive data on an infrequent basis. -
Page 7: Key Application
Elfin-EE10, Elfin-EE11: 5~18VDC Input Voltage Elfin-EE10A, Elfin-EE11A: 9～36VDC Working Current ~100mA Power <400mW 1.3. Key Application The Elfin-EE1X device connects serial device to Ethernet networks using the TCP/IP protocol: ⚫ Remote equipment monitoring ⚫ Asset tracking and telemetry ⚫ Security Application ⚫... -
Page 8: Hardware Introduction
ELFIN-EE1X Serial Server Device User Manual 2. HARDWARE INTRODUCTION The Elfin-EE1X unit is a complete solution for serial port device connecting to network. This powerful device supports a 10/100BASE-T Ethernet connection, a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack, and standards-based (AES) encryption. -
Page 9: Elfin-Ee10 Pins Definition
ELFIN-EE1X Serial Server Device User Manual 2.1. Elfin-EE10 Pins Definition Figure 3. Elfin-EE10 RJ45 Interface Pin Table2. Elfin-EE10 Interface Definition Description Net Name Signal Type Comment Connect to Standard Ethernet RJ45 PIN1 Ethernet TX+ Connect to Standard Ethernet RJ45 PIN2... -
Page 10: Elfin-Ee11 Pins Definition
ELFIN-EE1X Serial Server Device User Manual 2.2. Elfin-EE11 Pins Definition Figure 4. Elfin-EE11 RJ45 Interface Pin Table3. Elfin-EE11 Interface Definition Description Net Name Signal Type Comment Connect to Standard Ethernet RJ45 PIN1 Ethernet TX+ Connect to Standard Ethernet RJ45 PIN2... -
Page 11: Rs485 Interface
The RS485 interface support maximum 32 RS485 device. The cable maximum length is 1200 meters. Need to add 120Ohm terminal resistor for over 300 meters. 2.5. Mechanical Size The dimensions of Elfin-EE1X are defined as following picture (mm): Figure 5. Elfin-EE1X Mechanical Dimension 2.6. -
Page 12: Figure 6. Rj45 8Pin Connector
ELFIN-EE1X Serial Server Device User Manual Figure 6. RJ45 8PIN Connector Figure 7. EE10 +8PIN Connector Figure 8. EE11+8PIN Connector http://www.hi-flying.com - 12 -... -
Page 13: Ee10 Interface Conversion Cable
ELFIN-EE1X Serial Server Device User Manual 2.7. EE10 Interface Conversion Cable Figure 9. Interface Conversion Cable May also make cable according to the following picture. http://www.hi-flying.com - 13 -... -
Page 14: Figure 10. Cable Manufacture Guide
ELFIN-EE1X Serial Server Device User Manual Figure 10. Cable Manufacture Guide http://www.hi-flying.com - 14 -... -
Page 15: Ee11 Interface Conversion Cable
ELFIN-EE1X Serial Server Device User Manual 2.8. EE11 Interface Conversion Cable Figure 11. Interface Conversion Cable 2.9. Fixed Bracket Bracket Type Order: 10810003001 Figure 12. Fixed Bracket http://www.hi-flying.com - 15 -... -
Page 16: Rail Bracket
ELFIN-EE1X Serial Server Device User Manual 2.10. Rail Bracket Bracket Type Order: 10703000003 Figure 13. Rail Bracket 2.11. Bracket Figure 14. Bracket Size http://www.hi-flying.com - 16 -... -
Page 17: Product Installation
ELFIN-EE1X Serial Server Device User Manual Figure 15. Bracket Install Picture 2.12. Product Installation Figure 16. Product Installation 2.13. EVK EVK indluce one Elfin device, one RJ45 Connector and one screw driver. http://www.hi-flying.com - 17 -... -
Page 18: Order Information
ELFIN-EE1X Serial Server Device User Manual Figure 17. EVK Package 2.14. Order Information Base on customer detailed requirement, Elfin-EE1X provide different configuration version, Details as below: Function Power Type UART UART Number Model Input Elfin-EE10 5~18VDC Ethernet RS232 Elfin-EE11 5~18VDC... -
Page 19: Appendix A: Contact Information
ELFIN-EE1X Serial Server Device User Manual APPENDIX A: CONTACT INFORMATION ------------------------------------------------------------------------------------------------------------ Address: Room 1002,Building 1,No.3000,Longdong Avenue,Pudong New Area,Shanghai,China,201203 Web: www.iotworkshop.com www.hi-flying.com Contact: Sales: sales@iotworkshop.com Support: support@iotworkshop.com Service: service@iotworkshop.com Business: business@iotworkshop.com ---------------------------------------------------------------------------- ------------------------------- For more information about IOTworkshop modules, applications, and solutions, please visit our web site www.iotworkshop.com...
