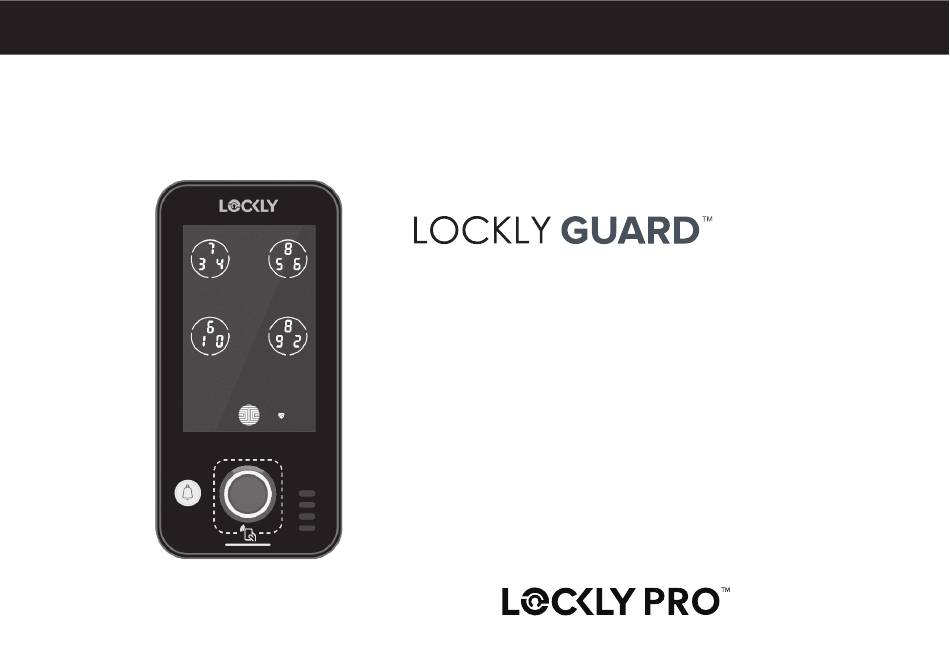

- Page 1 INSTALLATION GUIDE INGRESS 302W SMART ACCESS CONTROL + DOORBELL For commercial use & professional installation www.LocklyPRO.com...
-
Page 2: Section 1 - Product Overview
Section 1 - Product Overview Cable Outlet Touchscreen Reset Keypad Program 1 2 3 4 5 6 7 8 Welcome/Safe Mode Cable Outlet RFID Card Reader Fingerprint Reader Anti-Theft Alarm Speaker LED Indicator Doorbell PUSH Lock Control Port To ensure the device works properly, please make sure the wires are connected according to this diagram. -
Page 3: Section 3- Installing The Mounting Plate
Before installing, please refer to page P4-P8 of the user manual to select the suitable installation scenario. Connect the cables of the devices and accessories to Lockly Guard Ingress according to the wiring diagram. Then, install Lockly Guard Ingress by following Steps 3 &... - Page 4 Section 3- Installing the Mounting Plate (cont...) 3. If you need to pass through a cable on wire outlet (A), insert 4. Insert the plastic wall plugs on the drilled holes. Secure the mounting plate with screws. the cable first before installing the mounting plate on the wall. Note: The wiring cable should be flat, not crossing or overlapping.
- Page 5 Section 4- Installing Lockly Guard Ingress 1. Align Ingress from the top of the mounting plate then insert 2. Use the provided allen key to tighten the screw at till it reaches the bottom of the plate. Ensure Ingress is completely the bottom by turning it clockwise.
- Page 6 TOTAL ACCESS SOLUTION We’re here to help! prosales@lockly.com locklypro.com/support © Copyright 2023 Lockly All rights reserved USA Patent NO. US 9,881,146 B2 | USA Patent NO. US 9,853,815 B2 | USA Patent NO. US 9,875,350 B2 | USA Patent NO. US 9,665,706 B2 | USA Patent NO. US 11,010,463 B2 | AU Patent NO.
