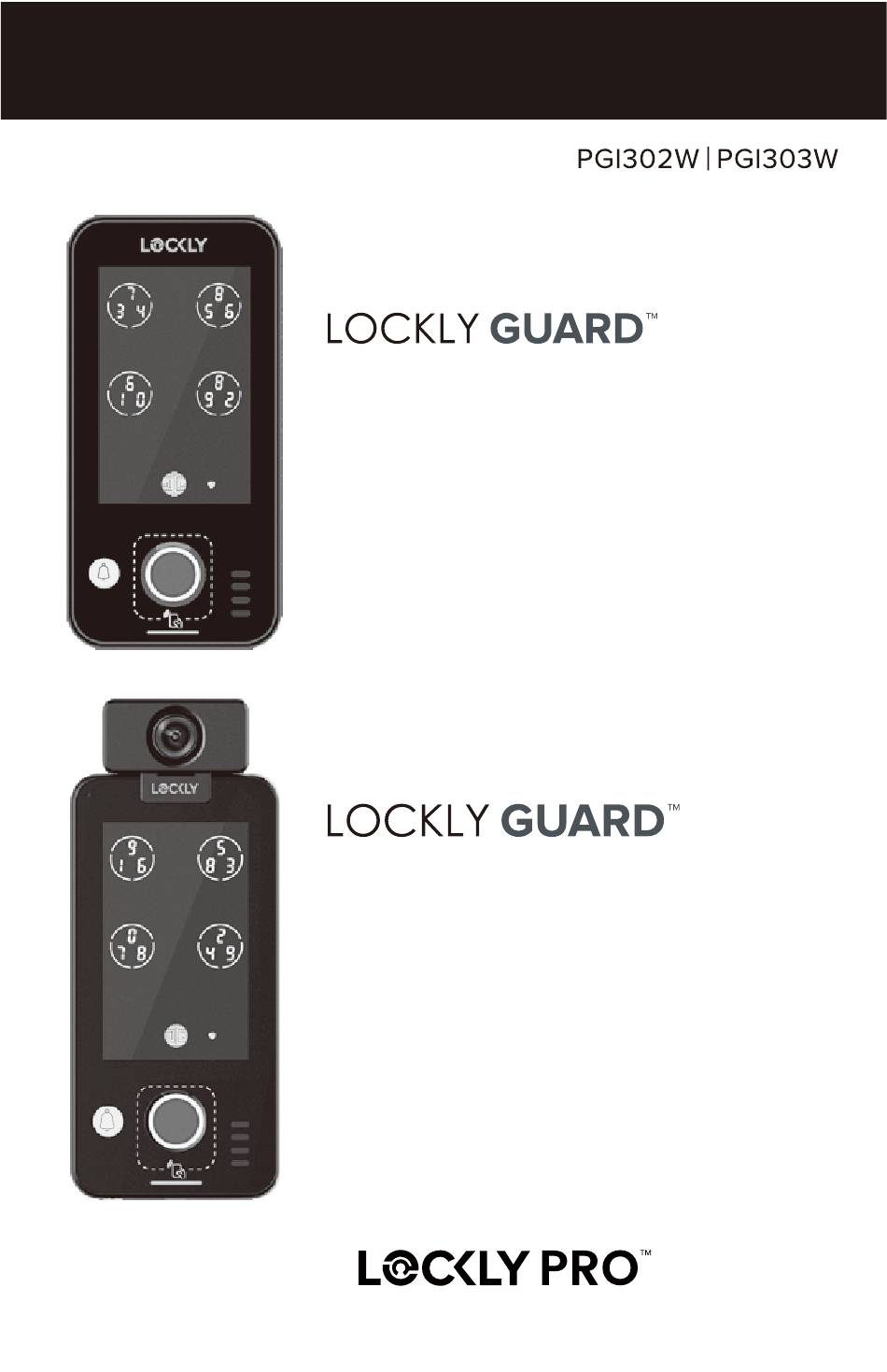

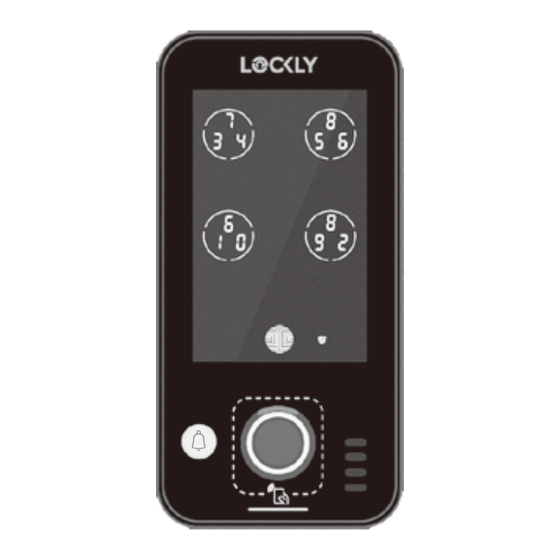

- Page 1 USER MANUAL INGRESS 302W SMART ACCESS CONTROL + DOORBELL VISION INGRESS 303W SMART ACCESS CONTROL + VIDEO DOORBELL For commercial use & professional installation www.LocklyPRO.com...
- Page 3 ACTIVATION CODE CARD Don’t lose the Activation Code Card. Treat it like your Driver’s License as it’s the only thing you’ll have to identify ownership of your lock. Please store this card in a safe place as this is required to set up your Lockly Guard.
-
Page 4: Table Of Contents
Section 1 - Product Highlights Product Features Disabling Safe Mode Welcome Mode Section 2 - Product Overview Tamper Switch Product Overview Section 5- Video Doorbell 2.2 Connectivity Specifications Doorbell 2.2.1 Wired Installation Video Doorbell 2.2.2 Wireless Installation Section 6 - Advanced Features 2.2.3 Weigand Installation Offline Access Code (OAC) -
Page 5: Product Features
1.1 Product Features Video Monitoring and Recording Full HD video camera streaming directly to your smartphone in real-time, gives a head to toe 130° view angle of who's at your front door. Video recordings are stored locally with no monthly fees. (Available on Vision Ingress 303W) Patented Hack-Proof PIN Genie Keypad Digits are randomly displayed on the keypad ensuring access codes to be undetectable to intruders after repeated use. -
Page 6: Product Overview
2.1 Product Overview Lockly Ingress Smart Access Control is compatible with most access control power supplies available on the market. It supports Electric Drop Bolts, Electric Exit Devices and Electromagnetic Locks. Additionally, it is compatible with standard wired door- bells and Wiegand input devices. To ensure the device functions correctly, please follow the port connection requirements. - Page 7 VISION INGRESS 303W Full HD Video Camera Touchscreen Keypad Welcome /Safe Mode RFID Reader Cable Outlet Fingerprint Reader Speaker Anti-Theft Alarm LED Indicator Doorbell Cable Outlet Cable Outlet Reset Program SECTION 2.1...
-
Page 8: Connectivity Specifications
2.2 Connectivity Specifications 2.2.1 Wired Installation If you're connecting the Lockly Ingress to a traditional electromagnetic or electric drop bolt lock via wired method, please follow to the provided wiring diagram. Access Control Power Supply NO OR NC Note: *The NC port is used to detect the opening and closing status of the door. - Page 9 To ensure the electromagnetic or electric drop bolt lock operates correctly, you need to have a compatible Access Control Power Supply. Connect the cables according to the instructions provided in the Access Control Power Supply manual. Lockly Ingress PUSH (1) and power input (7 and 8) ports are used for controlling the unlocking of the Power Supply and power input respectively.
-
Page 10: Wireless Installation
2.2.2 Wireless Installation If you are converting your existing traditional wired setup to wireless connection, please connect the cables as shown below. The traditional access control system uses the cable connection without encryption, which has low security. Lockly Guard Wireless Transceiver is built with RF433.92MHz and Lockly 2.0 proprietary encryption to provide stable wireless connectivity, security and reliability. - Page 11 Power Supply Power Supply Wireless Transceiver Wireless Transceiver Power Supply DC 12V PUSH PUSH Electromagnetic Lock Power Supply Electromagnetic Lock NO OR NC Wireless Exit Button Access Control Electromagnetic Lock LOCK NC Access Control Access Control Power Supply DC 12V Installation Diagram If you need to connect Lockly Ingress and Electromagnetic lock wirelessly through Wireless Receiver, please refer to the wiring diagram below:...
-
Page 12: Weigand Installation
2.2.3 Weigand Installation Lockly Guard Ingress supports Weigand card reader input. It is used to connect Weigan card reader to control access. If you need to connect the weigand card reader, please refer to this illustration: PUSH LOCKLY NC Data 0 BUTTON-SW GND 1 GND1... -
Page 13: Double Door Installation
2.2.5 Double Door Installation When you need to control two doors at the same time, please refer to the connection mode of Method to connect two Electromagnetic Locks. The two locks can be switched on and off simultaneously. If you need to set delayed opening and closing and the open/close conditions for the two doors respectively, please refer to Method to connect the cable. -
Page 14: Rebooting Your Smart
Wireless Transceiver B Electromagnetic Lock B Wireless Transceiver A Power Supply A DC 12V Power Supply B PUSH PUSH Wireless Transceiver A Power Supply A Electromagnetic Lock A Power Supply Electromagnetic Lock Wireless Exit Button A NO OR NC Access Control Access Control Electromagnetic Lock LOCK NC... -
Page 15: Programming Mode
3.1 Programming Mode Program Button To enter Programming Mode, press the program button at the bottom of Lockly Guard Ingress. You will see the shield logo and hear a short beep. Enter "Activation code" then tap to enter Programming Mode. Model Function Mode... -
Page 16: Configuring Access Codes
3.2 Configuring Access Codes There are a total of five (5) buttons on the keypad as shown in the example image to the left. The numbers in each button may differ from what is shown on your device than what is displayed here. To enter your required digit, simply press the circle where your number is shown. -
Page 17: Understanding Your New
3.3 Understanding Your New Lock After the installation of your new Lockly Guard, understanding some key functions of operating your smart access control device is important. The next sections will walk you through configuring Access Codes, adding fingerprints, registering RFIDs and other features of your lock. -
Page 18: Pairing With The Locklypro
3.4 Pair Lock with the LocklyPro Commercial App To pair your lock with the free LocklyPro Commercial App mobile app, you must have your Activation Code available. The Activation Code is specific to your lock and is located on the Activation Code Card included in your smart access control device. - Page 19 VISION INGRESS 303W Open the LocklyPro Commercial App and log in to your account, Go to Lockly Settings > Accessories and Camera Settings > Wireless Transceiver > START. At this point, please put the Wireless Transceiver into pairing mode according to the instructions in the User Manual of the Wireless Transceiver (PGA300RF).
- Page 20 Wireless Chime (PGA381) INGRESS 302W LocklyPro Commercial App and log in to your account, Go to Lockly Open the Settings > Secure LINK/Wireless Accessories > Wireless Chime > START, At this point, please put the Wireless Chime into pairing mode according to the instructions in the Wireless Chime (PGA381) user manual.
-
Page 21: Pairing To A New Mobile Device
3.6 Pairing to a New Mobile Device • INGRESS 302W “BL” While in Programming Mode, select to pair a new smart phone. If you are not Section 3.1 in Programming Mode, please see to enter Programming Mode. After pressing “BL”, the BL icon will flash and you will hear short beeps. -
Page 22: Unlocking With Access Codes
4.1 Unlocking with Access Codes Ingress and Vision Ingress can be unlocked using multiple ways - via access code, fingerprint, mobile app or RFID. Before you can use these functions, pair the lock to the LocklyPro Commercial App on your smartphone (see sec. 3.4), then go to Acces Management to add access codes, register fingerprints and RFIDs by following the on-screen prompts on the app. -
Page 23: Unlocking With Fingerprint
4.2 Unlocking with Fingerprint Unlocking Before using the fingerprint function, please add a new user through the LocklyPro Commercial App and register your fingerprint according to the screen prompts. Place a registered finger to the fingerprint scanner. If your fingerprint is registered and acknowledged, you will hear a “beep”... -
Page 24: Safe Mode - Overview
4.5 Safe Mode - Overview Lockly Guard will enter Safe Mode when ten (10) consecutive wrong Access Codes are entered within 5 minutes. For PGI303W, a 15 seconds video will be recorded once the lock entered into Safe Mode. When in Safe Mode, the lock status icon will start to flash. -
Page 25: Disabling Safe Mode
4.6 Disabling Safe Mode There are three (3) ways to disable Safe Mode. Option 1 - Entering Correct Access Code Activate the keypad by pressing and holding for 3 seconds. Enter the correct Access Code twice (2) when the keypad is available, pressing after every time the Access Code is entered. -
Page 26: Section 5- Video Doorbell
Remarks: During installation (no administrator password is set yet), triggering the tamper switch will not cause to alarm. 5.1 Doorbell - INGRESS 302W Lockly Ingress supports doorbell function. When visitors lightly press the doorbell button, Lockly Ingress will sound a beep reminder. The LocklyPro Commercial App will also receive a notification. - Page 27 5.2 Video Doorbell - VISION INGRESS 303W When doorbell is pressed, you will receive a notification through the LocklyPro Commercial App. Once you tap on the notification, the app will automatically open to allow you to see who's at your door. If you have already installed a wired or wireless doorbell (refer to section 2.2.4), your doorbell will also chime.
-
Page 28: Live View
5.2 Video Doorbell - VISION INGRESS 303W Vision Ing enables you to attend to your door when you are not at home. While using the app, you can use the icons below to view, initiate conversations and unlock door. Live View You can open the LocklyPro Commercial and tap on the... - Page 29 5.2 Video Doorbell - VISION INGRESS 303W Video Recording Vision Ingress stores video recording on the local TF card and recording can be accessed on the log history on your LocklyPro Commercial App. Vision automatically initiate video recording when below conditions take place: Keypad was used * Doorbell button was pushed Offline Access Code™...
-
Page 30: Offline Access Code
6.1 Offline Access Code (OAC) The Offline Access Code (OAC) is a unique feature of our smart access control devices. It allows you to grant access to guests remotely without guests needing to download the app. To use the OAC feature, make sure you download the LocklyPro Commercial App for iOS or Android first then sync your smart access control device to your mobile device. -
Page 31: Single And Multi Units
6.2 Single & Multi Units Programming Lockly Guard Ingress and Vision Ingress can be used to to manage access of a household, single unit office, multi-family units and other similar properties or communities which requires various access for multiple users. Subscription to LocklyOS is required to enable multiple users to have access and for administrators to monitor and control their users' access. -
Page 32: Multi-Tiered Verification
6.3 Multi-Tiered Verification For higher level of security, Multi-tiered access verification is another exclusive feature available for LocklyOS users. It allows unlocking with the use of RFID + Fingerprint, RFID password, fingerprint + password, RFID + fingerprint + password for unlocking verification. -
Page 33: Cleaning
8.1 Cleaning Making sure your Lockly Guard is clean is best practice to ensure optimal product use. Follow the DOs and DON’Ts below. DON’T Rinse the touchscreen with warm Don’t use abrasives, high alkaline cleaners,or gasoline to clean your water prior to cleaning. lock. -
Page 34: Fcc Warning
FCC Warning： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 35: Ic Radiation Exposure Statement
IC WARNING This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts... - Page 36 TOTAL ACCESS SOLUTION We’re here to help! help@Lockly.com https://Locklypro.com/help © Copyright 2023 Lockly All rights reserved USA Patent No. US 9,881,146 B2 | USA Patent No. US 9,853,815 B2 | USA Patent No. US 9,875,350 B2 | USA Patent No. US 9,665,706 B2 | USA Patent No.
