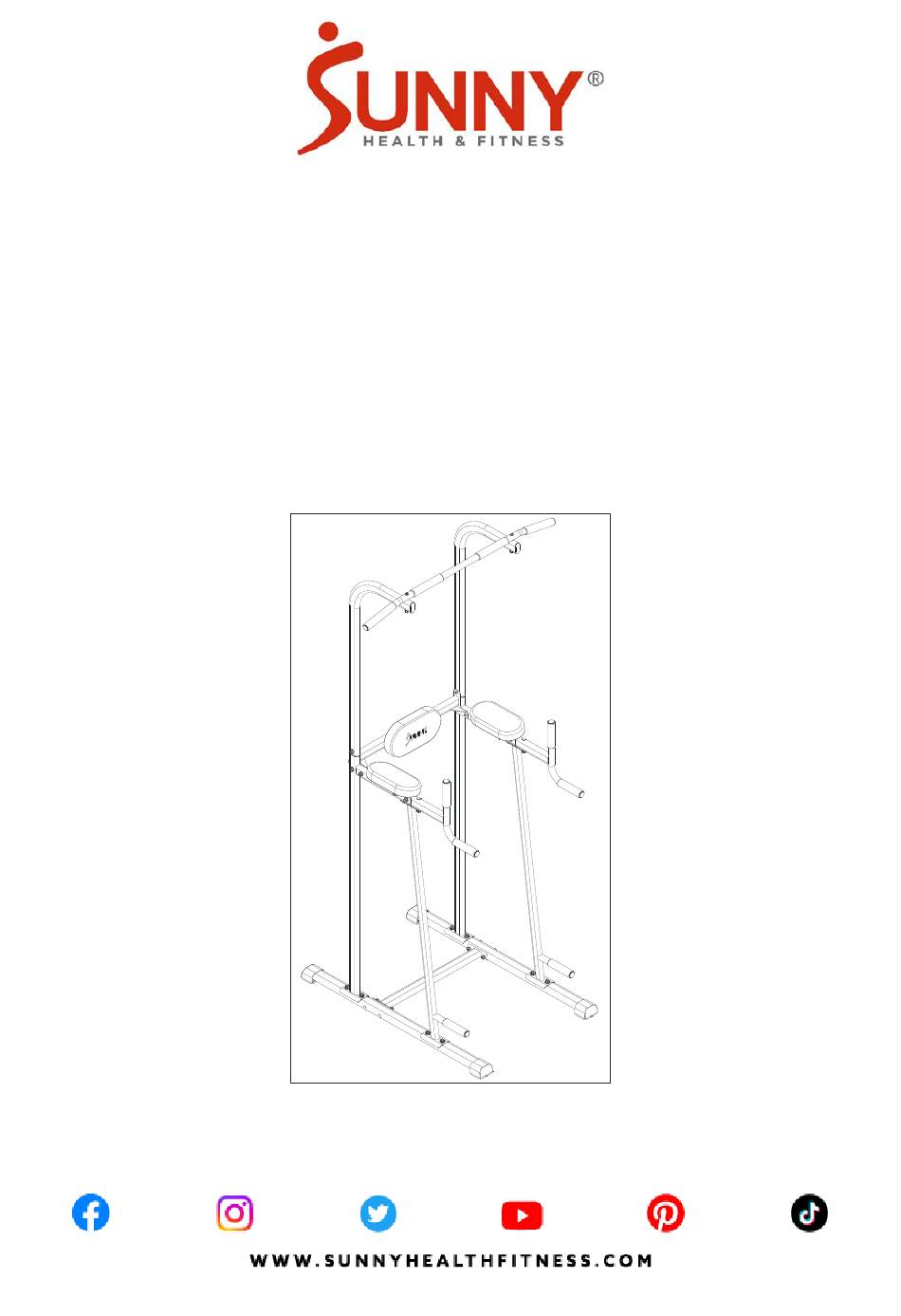

MULTI-FUNCTION POWER TOWER
WITH DIP STATION, PULL UP BAR,
AND CORE WORKOUT
SF-XF924016
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SF-XF924016
Summary of Contents for Sunny Health & Fitness SF-XF924016
- Page 1 MULTI-FUNCTION POWER TOWER WITH DIP STATION, PULL UP BAR, AND CORE WORKOUT SF-XF924016 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. - Page 3 Before you start to assemble, please make sure all parts are included. UNNY H E A L T H & F I T N E S S MULTI-FUNCTION POWER TOWER WITH DIP STATION, PULL UP BAR,AND CORE WORKOUT SF-XF924016 HARDWARE PACKAGE SF-XF924016 STEP 1 STEP 2 STEP 6...
-
Page 4: Hardware Package
HARDWARE PACKAGE SF-XF924016 HARDWARE PACKAGE STEP 1 STEP 2 STEP 6 #18 M8*20*S5 8PCS #19 D8*20 8PCS #12 M8*45*S5 8PCS # 19 D8*20 16PCS #21 M8*H6.8*S13 8PCS STEP 4 #17 M8*75 4PCS #20 D8*16*R16 4PCS #21 M8*H6.8*S13 4PCS STEP 3... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: NOTE：The Left Bottom Tube (No. 8L) is marked “L” and the Right Bottom Tube (No. 8R) is marked “R”.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 2: #10 S13-15-17 1PC #12 M8*45*S5 8PCS #19 D8*20 16PCS #11 S5 #21 M8*H6.8*S13 8PCS NOTE：The Left Support Tube (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: #14 M8*35*S5 2PCS #15 M8*40*S5 6PCS #10 S13-15-17 1PC #18 M8*20*S5 2PCS Attach the Middle Connecting Tube (No. 6), #19 D8*20 8PCS #20 D8*16*R16...
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 6: # 1 8 M 8 * 2 0 * S 5 8 P C S # 1 1 S 5 1 P C # 1 9 D 8 * 2 0 8 P C S...
-
Page 9: Maintenance Instructions
MAINTENANCE INSTRUCTIONS DAILY MAINTENANCE Inspect and tighten all parts regularly. (Nuts, Bolts, Rubber Pads, Steel Brackets… etc.) Replace any worn or torn parts immediately. Check and ensure the equipment is level at all time. Check and tighten all adjustment pins/knobs regularly. WEEKLY MAINTENANCE Use damp cloth on plastic parts only, use dry cloth on metal frames. -
Page 10: Exploded Diagram
EXPLODED DIAGRAM 18 20 9 ... -
Page 11: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Bottom Connecting Tube Hexagonal Bolt M8*40*S5 Front Support Tube Hexagonal Bolt M8*85*S5 Left Support Tube Square Neck Bolt M8*75 Right Support Tube Hexagonal Bolt M8*20*S5 Elbow Support Tube Flat Washer D8*20 Middle Connecting Tube Curved Washer D8*16*R16 Upper Frame... - Page 12 11 ...
