ADJUSTABLE MULTI-FUNCTION DIP
STATION & CORE WORKOUT
ATTACHMENT
SF-XFA008
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SF-XFA008
Summary of Contents for Sunny Health & Fitness SF-XFA008

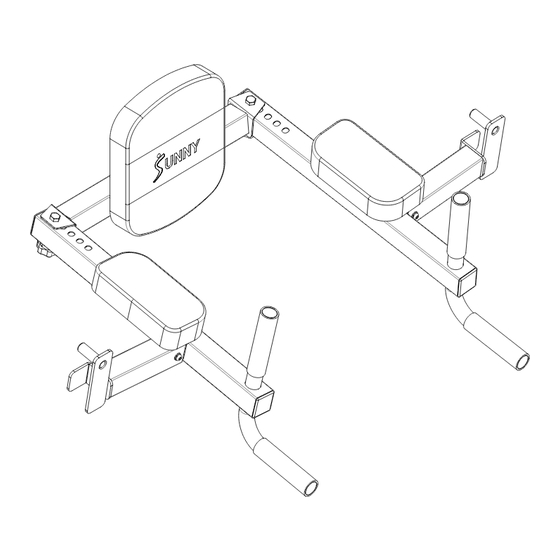

- Page 1 ADJUSTABLE MULTI-FUNCTION DIP STATION & CORE WORKOUT ATTACHMENT SF-XFA008 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. SF-XFA008 HARDWARE PACKAGE STEP 1 STEP 3 #3 M8*70 3PCS #4 ￠8.1*￠12.3*t2.1 3PCS #5 ￠8.4*￠16*t1.6 3PCS #3 M8*70 4PCS #4 ￠8.1*￠12.3*t2.1 4PCS STEP 2 #5 ￠8.4*￠16*t1.6 4PCS... -
Page 4: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Connect the Back Pad Holder (No. 1) to the Back Pad (No. 2) with 3 Hexagon Bolts (No. 3), 3 Spring Washers (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Connect the Elbow Pad (No. 11) to the Right Elbow Bracket (No. 6) with 2 Hexagon Bolts (No. 3), 2 Spring Washers (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). NOTE: Check and make sure all bolts are fully locked. The assembly is complete! If you need to disassemble it, please refer to above Step 4 to remove the Plum Knob (No. 12) firstly, then remove the Back Pad Holder (No.1), and finally remove the Right Elbow Bracket (No.
-
Page 8: Maintenance Instructions
MAINTENANCE INSTRUCTIONS DAILY MAINTENANCE Inspect and tighten all parts regularly. (Nuts, Bolts, Rubber Pads, Steel Brackets…etc.) Replace any worn or torn parts immediately. Check and ensure the equipment is leveled at all time. Check and tighten all adjustment pins/knobs regularly. WEEKLY MAINTENANCE Use damp cloth on plastic parts only, use dry cloth on metal frames. -
Page 9: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Back Pad Holder Left Support Frame Back Pad Hexagon Bolt M8*20 Hexagon Bolt M8*70 (half teeth) Elbow Pad ￠8.1*￠12.3*t2.1 Spring Washer Plum Knob ￠8.4*￠16*t1.6 Flat Washer Allen Wrench S5, 5mm Right Elbow Square Inner Tube Plug Bracket Left Elbow Bracket...
