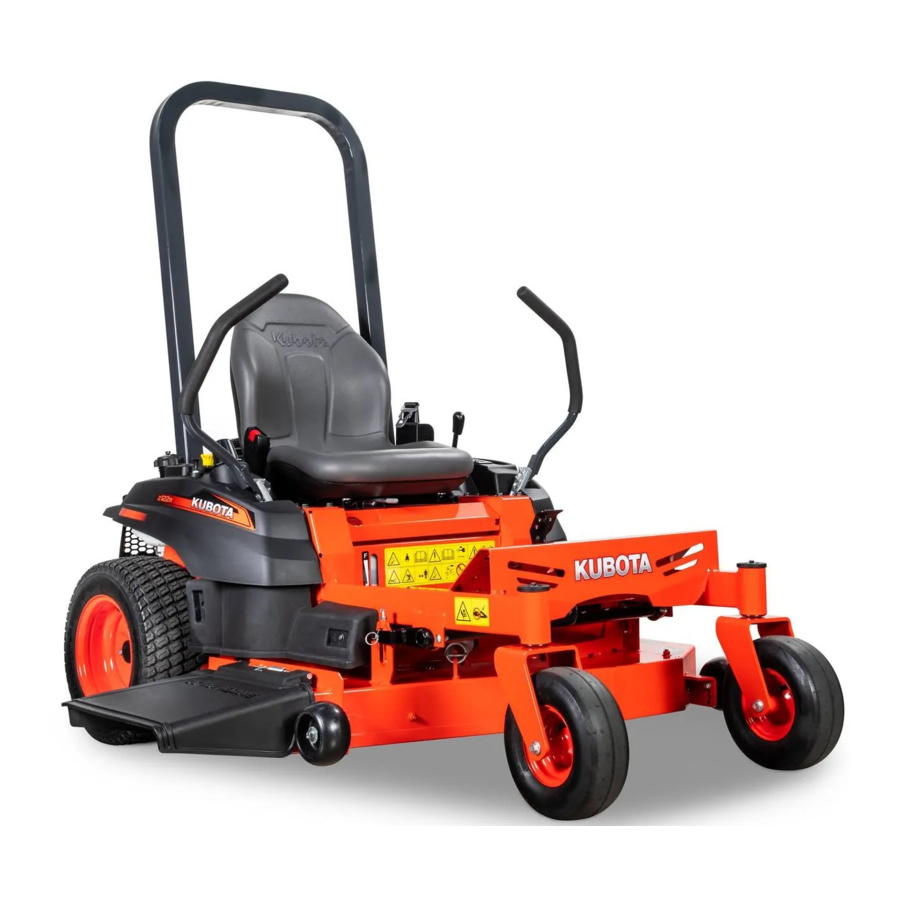

Kubota Z122R Manual

SAFETY FIRST

The following safety alert symbol mark and indication are found throughout this manual in steps where particular attention is required so as to ensure your safety in work and to avoid product damage. Observe the instructions in these warnings where indicated.

	Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
	Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
	Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
	Indicates that equipment or property damage could result if instructions are not followed.
NOTE:	Gives helpful information.

SAFETY

To prevent accidents, read through the following items before starting work, and always regard safety when working. It is your responsibility to ensure your safety on the job.

PREPARATIONS

1. Select a work site which is level, sufficiently spacious and not in the vicinity of dangerous objects.
2. Avoid poorly ventilated rooms. Asphyxiation from exhaust fumes is always a possibility that accompanies a running engine.

3. Working clothes which may be pinched or caught in the equipment must not be worn. Loose clothing can cause serious injury or death.

4. Always wear a mask and protective goggles during work when dust or flying debris is thrown about.


ASSEMBLY AND ADJUSTMENTS

1. Before assembling equipment, read the assembly instructions for the product to become familiar with the equipment and procedures.

2. Use only adequate and required equipment, tools and instruments (torque wrench or battery hydrometer).
3. Set the parking brake and place blocks in front of wheels to prevent machine movement.
4. Lower the attachment or implement to the ground before assembling or adjusting equipment.
5. Before working under suspended or raised equipment, support the equipment or attachment with stands or suitable blocking beforehand to prevent the machine from falling or moving out of place.

6. Keep fire from cigarettes, matches or other ignition sources away from fuel, oil, antifreeze and other flammable materials.

AFTER ASSEMBLY CHECK

1. Once the equipment is fully assembled, select a safe place for a test run. Prevent onlookers from approaching the equipment.


To avoid serious injury or death:

• Do not start engine or operate levers from anywhere other than the seat.


To avoid serious injury or death:

• Do not bypass-start the equipment. Short circuiting the starter terminal runs the risk that the equipment will start operating or moving unexpectedly.


UNPACKING

UNPACKING WOODEN CRATE

1. Saw crate at the indicated locations. Repeat for opposite side.

   1. Cutting line
   2. ROPS
2. Unpack crate as shown. Remove protective plastic covers from machine.


• When cutting the frame, be careful not to let the crate fall on the machine.
• Do not cut at any other position. The machine or parts may be damaged.
• Be sure that the crate is free of other obstructions (e.g. nails, staples and etc.).

3. Remove all straps holding the machine down.

   1. Strap
4. Remove the discharge cover and parts bag located behind the seat.

   1. Discharge cover, parts bag
5. Remove all foams from wrapped parts.
6. Proceed to the Assembly section for further instructions.

UNPACKING METAL CRATE

1. Remove the two pins securing the top of the crate to the support beams.
   Pull the cotter pin out and then push the retaining pin out from the beam.

   1. Cotter pin
   2. Retaining pin
2. Lift up on the top of the crate and set it aside.

   1. Top of the crate
3. Remove the two pins at the bottom of the crate and remove the four support beams.

   1. Pin location
4. Remove the four support straps on each corner of the crate.

   1. Strap
5. Remove the zip ties securing all foams of the ROPS. Carefully remove the ROPS and set it aside.

   1. Zip tie
6. Remove the discharge cover and parts bag located behind the seat.

   1. Discharge cover, parts bag
7. Remove all foams from wrapped parts.
8. Proceed to the Assembly section for further instructions.

CHECKING PARTS

Check the component parts

1. Check carefully for shipping damage.
2. Check the loose parts and the hardware package against the PARTS LIST and the figure.

ASSEMBLY

To avoid personal injury:

• Park the machine on a firm and level surface.
• Apply the parking brake.
• Stop the engine and remove the key.
• Fully raise the operator's seat. (To the lock position) Do not keep the seat halfway.
• Do not drop the seat to close it.
• Watch your hands. Do not place under the seat, when closing.

INSTALLATION OF THE DISCHARGE COVER

1. Deck
2. Discharge pin
3. Discharge spring
4. Cotter pin
5. Discharge cover

1. Remove the discharge pin, the cotter pin and the discharge spring attached to the mower deck.
2. Attach the discharge cover with the original discharge pin, cotter pin and discharge spring.

NOTE:

• The correct way to bend over cotter pin ends is shown in the figure.

INSTALLATION OF ROPS

1. Place ROPS into the unit.
   Serial number label should be on the right side.

   1. ROPS
   2. Serial number label
2. Secure left side of the ROPS using a ROPS plate and two bolts. Ensure proper bolt orientation by referring to the figure below.

   1. ROPS
   2. ROPS plate
   3. Bolt

6. FRONT

3. Secure right side of the ROPS using a ROPS plate and two bolts. Ensure proper bolt orientation by referring to the figure below.

   1. ROPS
   2. ROPS plate
   3. Bolt

6. FRONT

4. Secure ROPS with supplied M14 nuts and torque to spec.

   1. ROPS
   2. ROPS plate
   3. M14 nut

NOTE:

• Tightening torque of the bolt and nut should be between 124 to 147 N-m (91.5 to 108 lbf-ft).

BATTERY CABLE AND FUEL

Connecting the battery negative cable

1. Connect the cable to the battery negative terminal. Check the battery and recharge it if necessary.

   1. Battery
   2. Ground cable
      +. Positive terminal
      -. Negative terminal
2. Make sure that the carburetor fuel valve is in the "RUN" (OPEN) position.

   1. Carburetor fuel valve

1. "RUN" (OPEN)

3. Start the engine. (Refer to "OPERATING THE ENGINE" section of the operator's manual.)
4. Lift the mower by depressing the mower lift pedal.

   1. Mower lift pedal

1. "DEPRESS"

5. Check the tire pressure as shown in the table and inflate as necessary.

6. Drive the machine out of the crate. (Refer to "OPERATING THE MACHINE" section of the operator's manual.)

ESTIMATED ASSEMBLY TIME

Refer to the following table for the estimated assembly time to open the crate and assemble the machine.

Assembly times on the table are just reference under the average conditions with the following assumption.

1. Assembly by one worker.
2. Following tools and equipment are prepared.
   1. Chain hoist or Crane
   2. Impact wrench
      Ratchet wrench
      Torque wrench
      Socket wrench
      and other required tools.

AFTER-ASSEMBLY CHECK

1. After assembling, check the machine based on the following check list and check the safety devices.

Check the engine start system

1. Start and run the machine following all safety instructions in the operator's manuals.
2. Check the engine start system.
   Check the following tests before operating the mower.
   Sit on the operator's seat for all tests except for Test 1.
   If the machine does not pass one of the following tests, do not operate the machine.

Check the OPC system

1. Start and run the machine following all safety instructions in the operator's manuals.
2. Check the OPC system.
   Check the following tests before operating the mower.
   If the machine does not pass one of the following tests, do not operate the machine.

TORQUE CHART

GENERAL TORQUE SPECIFICATION

TIGHTENING TORQUE CHART

NOTE:

• Figure "7" on the top of the bolt indicates that the bolt is of special material.
• Before tightening, check the figure on the top of bolt.
