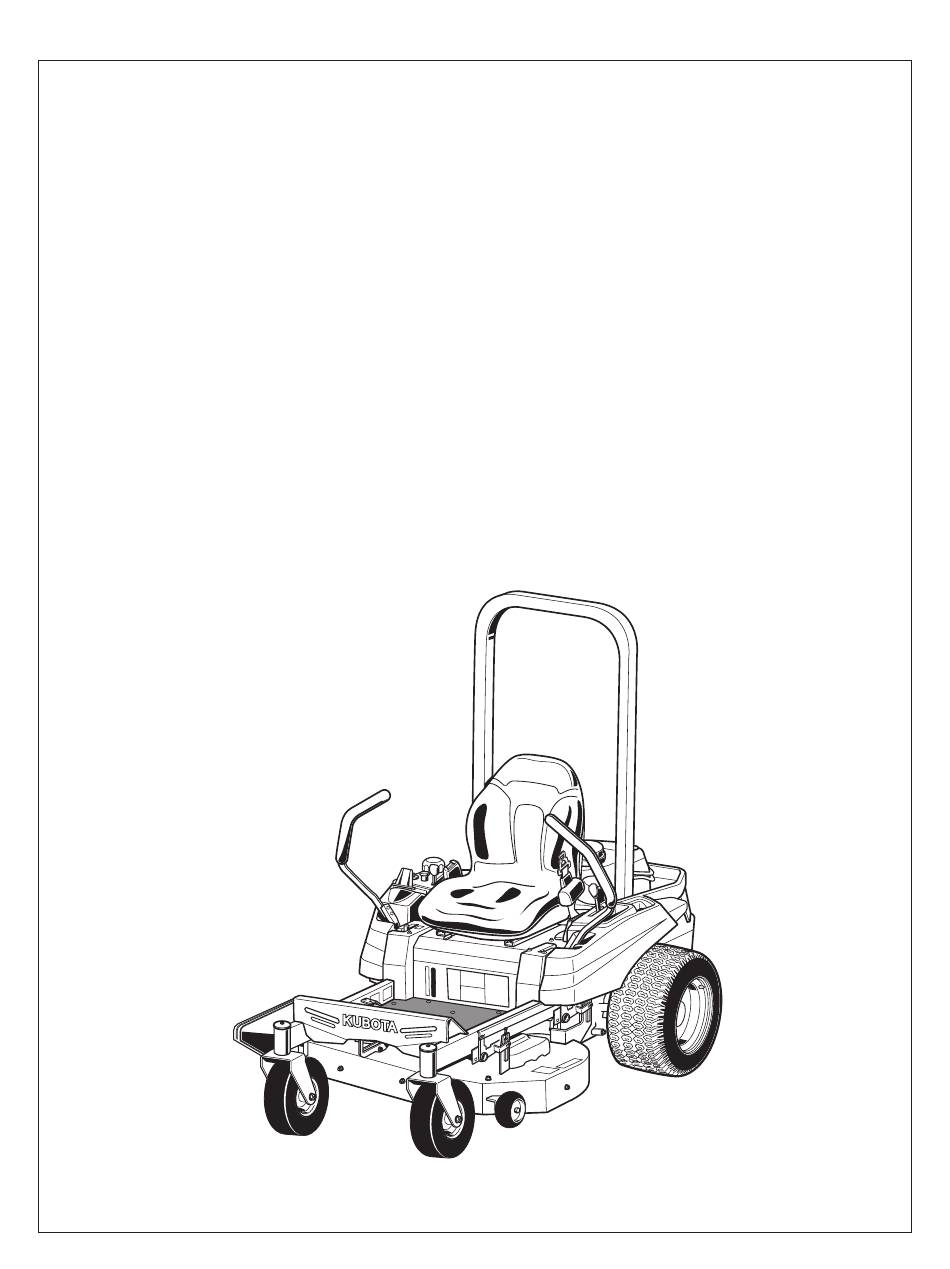

- Page 1 ASSEMBLY INSTRUCTIONS MODEL Z122R 1BDABEIAP0010 © PRINTED IN U.S.A. Code No. K3001-7151-1 KUBOTA Corporation 2014...
-
Page 2: Safety First
TO THE DEALER This manual contains procedures intended to assist the dealer in assembling the product before delivering to the customer. The customer’s purchase is based on confidence in both the product and your store. Observe the procedure in this manual to assemble and adjust equipment for your customer’s safety. When fully assembled, check function of each part and feature. -
Page 3: Assembly And Adjustments
SAFETY (5) Before working under suspended or raised equipment, support the equipment or attachment To prevent accidents, read through the following items with stands or suitable blocking beforehand to before starting work, and always regard safety when prevent the machine from falling or moving out of working. -
Page 4: Unpacking Procedure
UNPACKING (3) Remove all straps holding the machine down. BUNPACKING WOODEN CRATE 1. Unpacking procedure (1) Saw crate at the indicated locations. Repeat for opposite side. (1) Strap (4) Remove the discharge cover and parts bag located behind the seat. (1) Cutting line (2) ROPS (2) Unpack crate as shown. - Page 5 (3) Remove the two pins at the bottom of the crate BUNPACKING METAL CRATE and remove the four support beams. 1. Unpacking procedure (1) Remove the two pins securing the top of the crate to the support beams. Pull the cotter pin out and then push the retaining pin out from the beam.
- Page 6 CHECKING PARTS (5) Remove the zip ties securing all foams of the ROPS. Carefully remove the ROPS and set it BPARTS LIST aside. Ref. Check & Part Number Description Remarks K3001-8891-0 ROPS, ASSY NUT, K3011-8804-0 FLANGE (M14, 8) K3001-8805-0 BOLT (M14-L80, 8) K3001-8806-0 PLATE (ROPS) COVER,...
- Page 7 ASSEMBLY BINSTALLATION OF ROPS (1) Place ROPS into the unit. Serial number label should be on the right side. To avoid personal injury: A Park the machine on a firm and level surface. A Apply the parking brake. A Stop the engine and remove the key. A Fully raise the operator's seat.
- Page 8 (3) Secure right side of the ROPS using a ROPS plate and two bolts. Ensure proper bolt orientation BBATTERY CABLE AND FUEL by referring to the figure below. 1. Connecting the battery negative cable (1) Connect the cable to the battery negative terminal.
- Page 9 (4) Lift the mower by depressing the mower lift pedal. (1) Mower lift pedal (A) "DEPRESS" (5) Check the tire pressure as shown in the table and inflate as necessary. Recommended Inflation Tire sizes Max.Pressure 11 x 4 - 5, 170 kPa Front 4PR Smooth...
- Page 10 AFTER-ASSEMBLY CHECK 1. After assembling, check the machine based on the following check list and check the safety devices. AFTER-ASSEMBLY CHECK LIST Inspector: Model number: Machine number: Inspection date: Division Inspection item Results 1. Is the ROPS tightened and properly fastened? Assembly 2.
- Page 11 4. Turn the key switch to the "START" position. 5. The engine must not crank. A If the engine cranks in Test 1 through 4, consult your local KUBOTA Dealer to have the unit checked before operation. Test 5 (OPERATOR ON THE SEAT) 1.
- Page 12 TORQUE CHART BGENERAL TORQUE SPECIFICATION American standard cap screws Metric cap screws with UNC or UNF threads GR.5 GR.8 Class 8.8 Class 10.9 SAE grade No. Property class (lbf-ft) 8 - 9.6 12 - 14.4 (lbf-ft) 7.2 - 8.3 (N-m) 10.7 - 12.9 16.1 - 19.3 (N-m)
