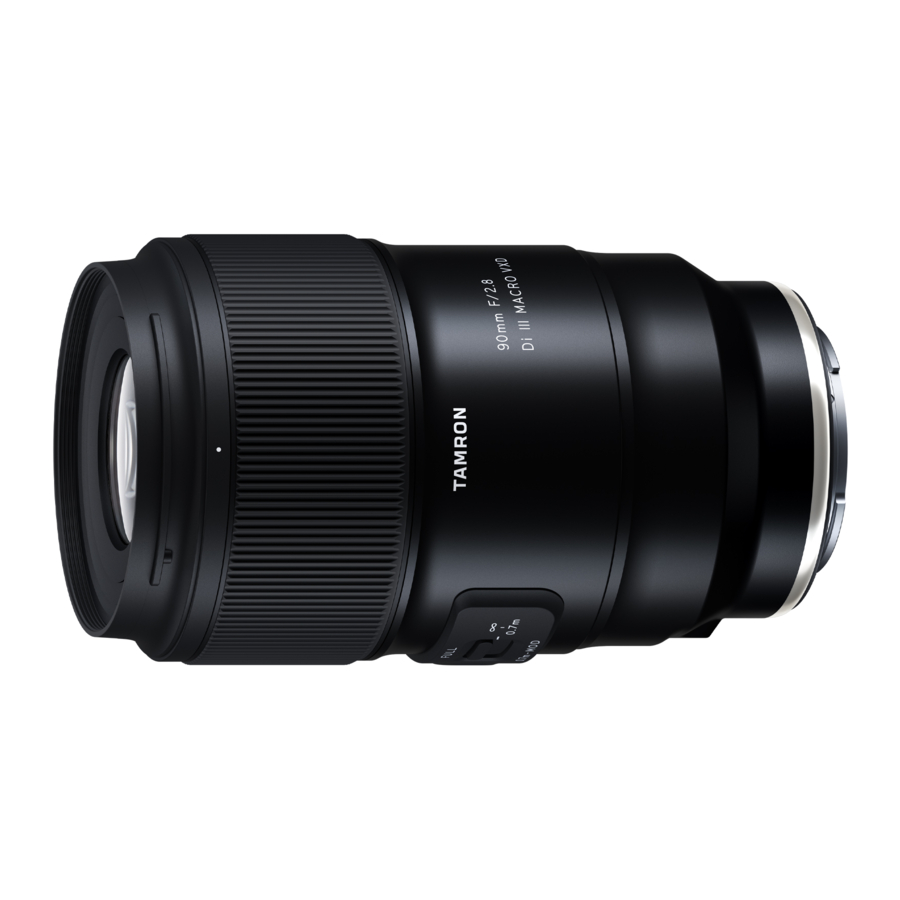

Tamron 90mm F/2.8 Di III MACRO VXD F072 Manual

PART NAMES

(Refer to Fig. )

1. Lens hood
2. Hood attaching alignment mark
3. Hood locking mark
4. Filter Effect Control Window
5. Filter ring
6. Hood release mark
7. Focus ring*
8. Focus set button
9. Focus limiter switch
10. Connector port
11. Lens attachment mark
12. Lens-camera interface contacts

* Corresponds to the control ring on Nikon Z mounts.

• Explains precautions that help to prevent problems.
• Explains things you should know in addition to basic operations.

MAIN SPECIFICATIONS

• Length: From front end of the lens to mount surface.
• Specifications, appearance, functionality, etc., are subject to change without prior notice.

ATTACHING AND REMOVING THE DEVICE

Remove the rear cap of the lens. Align the lens attachment mark and mounting mark on the camera, and then insert the lens.
Turn the lens clockwise for Sony E mounts or counterclockwise for Nikon Z mounts until it locks.
To remove the lens, turn the lens in the opposite direction while pressing the lens release button on the camera.

• Turn off the power of the camera before attaching or removing the lens.
• For details, please read the instruction manual of your camera.

SWITCHING FOCUS MODE

(Ref. Fig. )

• For Sony E
  Select the desired focus mode on the camera.
  For manual focusing, turn the focus ring to acquire the desired focus.
• For Nikon Z
  Select the desired focus mode on the camera.
  Auto Focus: Apply a function from your camera and control with the focus ring .
  Manual Focus: Turn the focus ring to focus manually on the subject.

• Under AF mode, there may be difficulty for autofocus to work depending on the subject.
• For details, please read the instruction manual of your camera.

FOCUS SET BUTTON

(Ref. Fig. )
Press the focus set button to use the function that has been assigned from the camera.
See the manual of the camera for more details.

CONNECTOR PORT

(Ref. Fig. )
Lenses with the connector port can be connected to a computer using the TAMRON connection cable (sold separately). Then, using the dedicated "TAMRON Lens Utility" application, you will be able to update the firmware and register functions to the focus set button .
See the online help of "TAMRON Lens Utility" using the link below for more details.
https://www.tamron.com/jp/consumer/support/help/lensutility/en/

• Do not use the TAMRON connection cable (sold separately) for any purpose other than connecting the TAMRON lens equipped with a connector port to a computer.
• Tamron will not bear any responsibility for any loss or damage of data in use of the TAMRON connection cable (sold separately).

FOCUS LIMITER

(Ref. Figs. , , , )
When autofocus is set, switching the focus limiter switch ⑨ can speed up focusing by limiting the focus range.

• To limit the autofocus range to subjects from 0.7 m to MOD* (Ref. Fig. )
  Set the focus limiter switch to "0.7m-MOD".
  * MOD: Minimum Object Distance

• To limit the autofocus range to subjects from infinity to 0.7 m (Ref. Fig. )
  Set the focus limiter switch to "∞-0.7m".

• To use the full focus range (Ref. Fig. )
  Set the focus limiter switch to "FULL".


HOOD

(Ref. Figs. , , )
The hood can eliminate stray light that may affect the picture.

• Using the lens hood (Ref. Fig. )
  Align the hood attaching alignment mark of the hood with the hood release mark of the lens.
  Rotate the hood in the direction of the arrow until the hood locking mark meets the hood release mark .

• Stowing the lens hood (Ref. Fig. )
  Attach the hood in reverse and rotate it until it locks.


• Be aware that the periphery of the photographed image may be darkened if the hood is not attached properly.

FILTER EFFECT CONTROL WINDOW

(Ref. Figs. , , )
On bottom of the hood , there is a window you may open and control the filter effects.
When the Filter Effect Control Window on the bottom of the hood is opened in the direction of the arrow (Ref. Fig. ), filters such as circular polarizing filter, ND filter, etc. (sold separately) can be operated without taking the hood off.
When shooting, close the Filter Effect Control Window in the opposite direction of the arrow. (Ref. Fig. )

USAGE PRECAUTIONS

• An internal focusing (IF) system is employed to reduce the minimum focus distance. The angle of view may be wider than that of lenses with other focusing systems when shooting at a distance less than infinity.
• The lens hood or the lens barrel may block the light from the flash. It is recommended to perform trial shooting in advance.
• Differences in the display systems of cameras may cause to show values different from the maximum and minimum aperture values from the specifications. This is not an indication of an error.
• Do not touch the lens-camera interface contacts ⑫ with your fingers. Otherwise, it may cause a malfunction.
• If the temperature changes suddenly, condensation may form and cause malfunctions.
• The front lens is covered with stain-proof coating. After removing the dust on the lens surface with a blower or another means, wipe it with a dry cloth.
• Never use benzene, thinner, or other organic solvents to clean the lens.
• Store the lens in a clean and well-ventilated place.
• For more details on the lens cleaning and storage, the compatibility with cameras, and other support information see our website.
  https://www.tamron.com/global/consumer/support/

Precautions for Safe Use of Tamron Lenses
For safe operation be sure to carefully read this "Precautions for Safe Use of Tamron Lenses" and the manual before using the product.
After reading them, store them in a place where they can easily be reviewed whenever needed.
Caution instructions are divided into the following two categories according to the degree of danger involved.

This indicates instructions which if not followed or if performed incorrectly could lead to death or serious injury.

• Do not view the sun or other strong light source directly through the lens or through a camera while using this lens.
  Doing so could cause loss of vision, damage to the lens and/or the camera, and possibly cause the lens and/or camera to ignite.
• Do not dissemble, repair, or modify the lens.
  This could damage the lens or camera.
• Keep the lens out of the reach of small children.
  There is a risk of injury if the lens is dropped or falls down.

This indicates instructions which if not heeded or if performed incorrectly could lead to bodily injury or physical damage

• Do not place lens in direct sunlight or leave it in an extremely hot place such as inside a car. Doing such could damage the internal parts of the lens or cause a fire.
• Always attach the lens cap whenever the lens is not in use.
• When attaching the lens to the camera, ensure that the lens has been properly attached to the camera and firmly locked.
  If the lens is not attached properly, it could be difficult to remove or it could fall off causing damage or injury.
• Do not use this lens for any application other than photography.
• Do not carry around the lens while it is still attached to a tripod.
• Regarding the lens equipped with a connector port
  1. Place the lens in a stable location when customizing the lens using the dedicated application (TAMRON Lens Utility ). Make sure not to let it fall or impact the lens.
  2. When connecting the lens to a computer, use a Tamron connection cable (sold separately).
  3. Do not touch the connector port with your fingers or a metal object. Also, prevent dust or water from adhering to the connector port. If the connector port is dirty, it may cause connection problems.
• Tamron will not be responsible for damages caused by a failure, a fire, or other accidents that may occur when using an accessory other than Tamron accessories. Note that in case of such damage, repair of the Tamron lens will be charged since it is not covered by the warranty.
